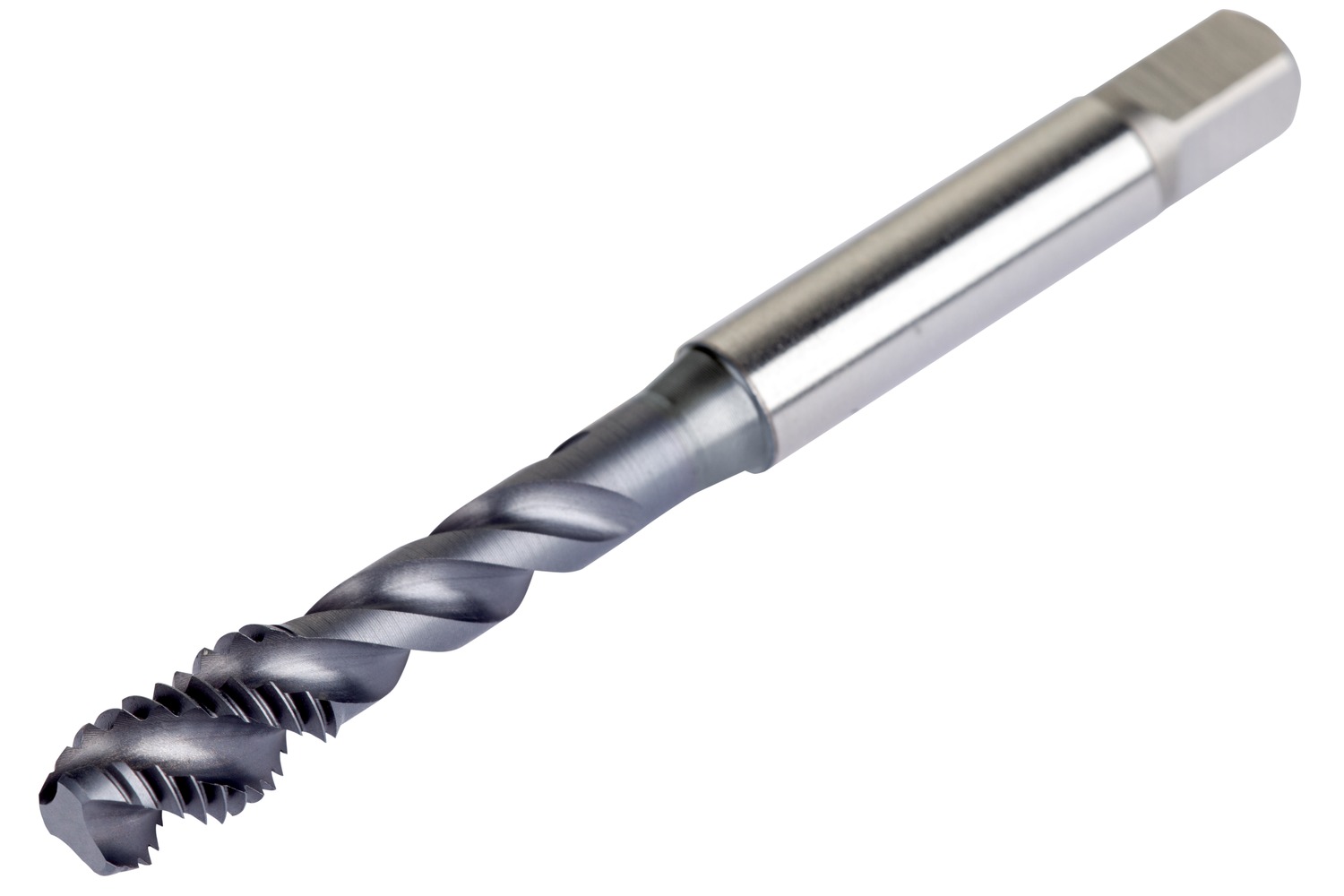

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E898M6 HSS / HSCo DIN Taps
$66.85$60.77 Ex. GST
Thread size M6 mm x 1 mm, with thread tolerance class 93707, and maximum threading depth 15 mm.
3603607096598
Description: Value Product name: E898M6 Product number (SAP): 86046906 EAN number: 3603607096598 Thread diameter size (TDZ): 6 Thread diameter – millimeter (TD): 6 mm Thread pitch – millimeter (TP): 1 mm Overall length – millimeter (OAL): 62 mm Overall length – inch (OAL): 2.441 inch Threading length – millimeter (THL): 10 mm Threading length – inch (THL): 0.394 inch Connection diameter – inch (DCON MS): 0.236 inch Connection diameter – millimeter (DCON MS): 6 mm Flute count (NOF): 3 Tolerance limit: OH4 Usable Length – inch (LU): 1.181 inch Usable Length – millimeter (LU): 30 mm Clamping width – inch (WSC): 0.177 inch Clamping width – millimeter (WSC): 4.5 mm Clamping Length – inch (LCS): 0.276 inch Clamping Length – millimeter (LSC): 7 mm Premachined hole diameter – inch (PHD): 0.197 inch Premachined hole diameter – millimeter (PHD): 5 mm Gross weight – grams: 12.6 ISO: E898M6
