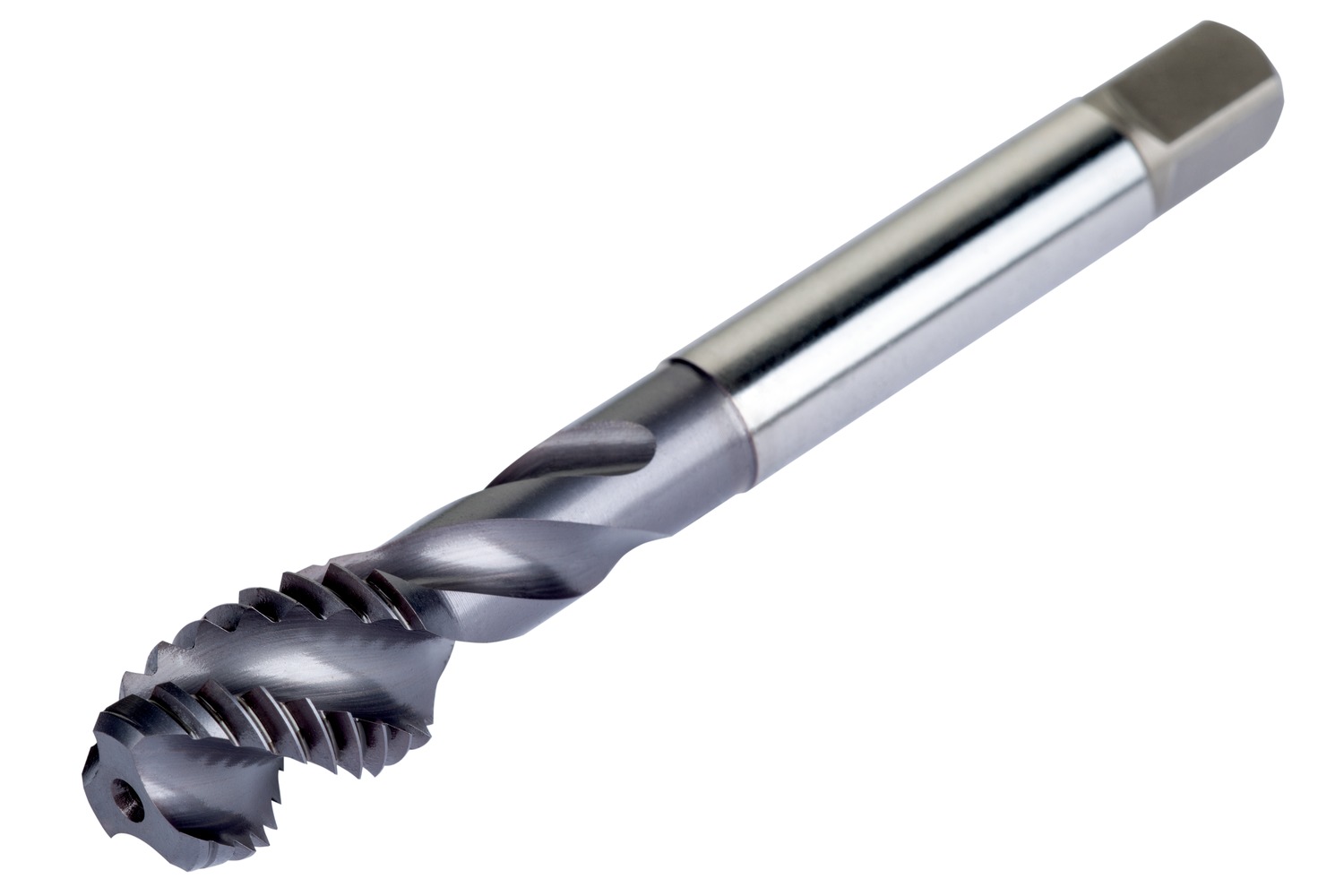

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Threading » DORMER E898M8 HSS / HSCo DIN Taps
$76.48$69.53 Ex. GST
Thread size M8 mm x 1.25 mm, with thread tolerance class 93707, and maximum threading depth 20 mm.
3603607096604
Description: Value Product name: E898M8 Product number (SAP): 86046907 EAN number: 3603607096604 Thread diameter size (TDZ): 8 Thread diameter – millimeter (TD): 8 mm Thread pitch – millimeter (TP): 1.25 mm Overall length – millimeter (OAL): 70 mm Overall length – inch (OAL): 2.756 inch Threading length – millimeter (THL): 12 mm Threading length – inch (THL): 0.472 inch Connection diameter – inch (DCON MS): 0.244 inch Connection diameter – millimeter (DCON MS): 6.2 mm Flute count (NOF): 3 Tolerance limit: OH4 Clamping width – inch (WSC): 0.197 inch Clamping width – millimeter (WSC): 5 mm Clamping Length – inch (LCS): 0.315 inch Clamping Length – millimeter (LSC): 8 mm Premachined hole diameter – inch (PHD): 0.268 inch Premachined hole diameter – millimeter (PHD): 6.8 mm Gross weight – grams: 20 ISO: E898M8
