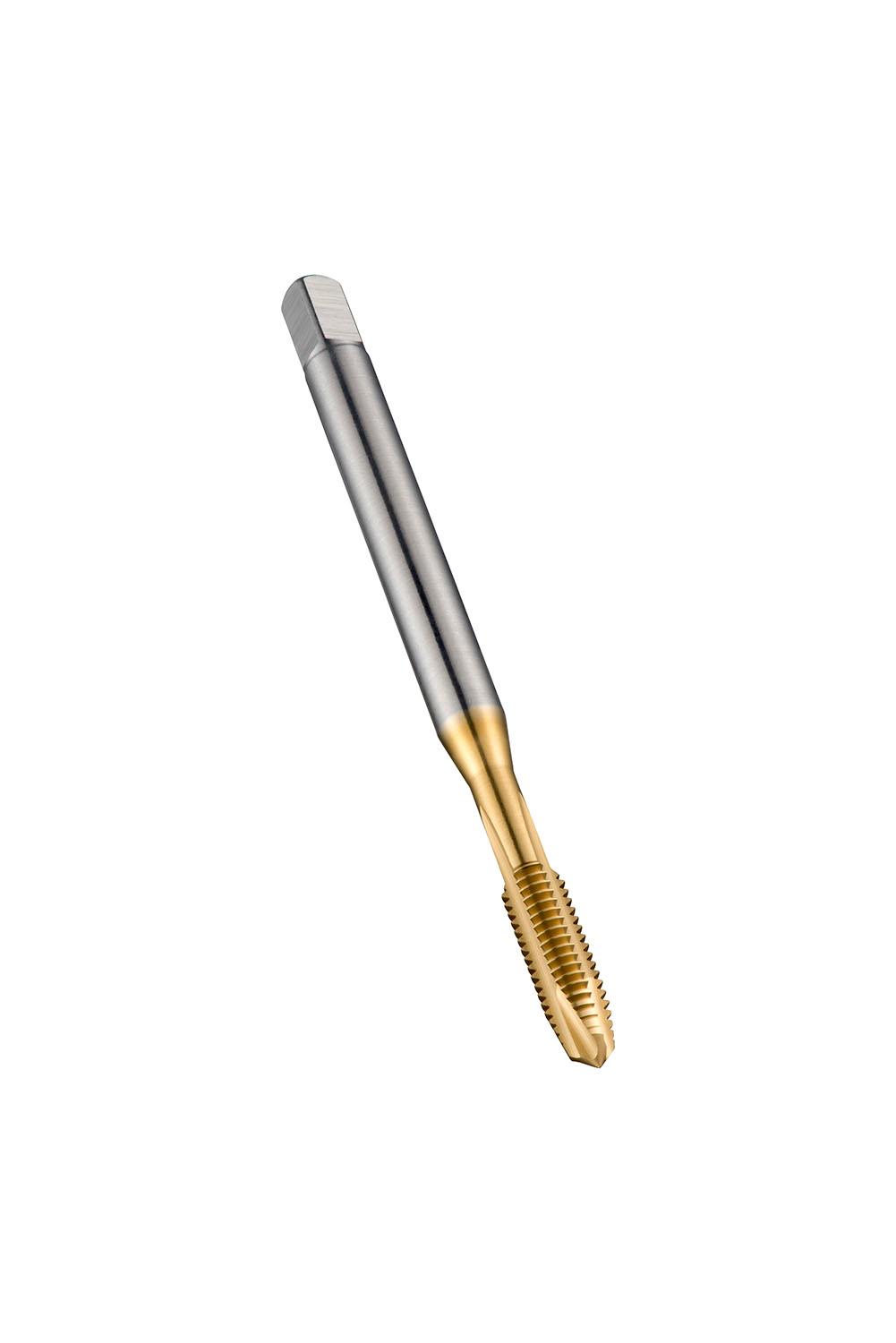

DORMER EP00TINM14 HSS / HSCo DIN Taps

Product Code: EP00TINM14

$172.22$156.56 Ex. GST

Product Code: EP00TINM14 SKU EP00TINM14 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 11.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium

Additional information

Weight 0.1672 kg
Dimensions
barcode
Additional Information

Description: Value
Product name: EP00TINM14
Product number (SAP): 86017360
EAN number: 7320760662182
Thread diameter size (TDZ): 14
Thread pitch – millimeter (TP): 2 mm
Overall length – millimeter (OAL): 110 mm
Overall length – inch (OAL): 4.3307 inch
Threading length – millimeter (THL): 25 mm
Threading length – inch (THL): 0.9843 inch
Connection diameter – inch (DCON MS): 0.4331 inch
Connection diameter – millimeter (DCON MS): 11 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.3543 inch
Clamping width – millimeter (WSC): 9 mm
Clamping Length – inch (LCS): 0.4724 inch
Clamping Length – millimeter (LSC): 12 mm
Premachined hole diameter – inch (PHD): 0.4724 inch
Premachined hole diameter – millimeter (PHD): 12 mm
Gross weight – grams: 81
ISO: EP00TINM14
Ordering code ANSI: EP00TINM14

Brand

DORMER
