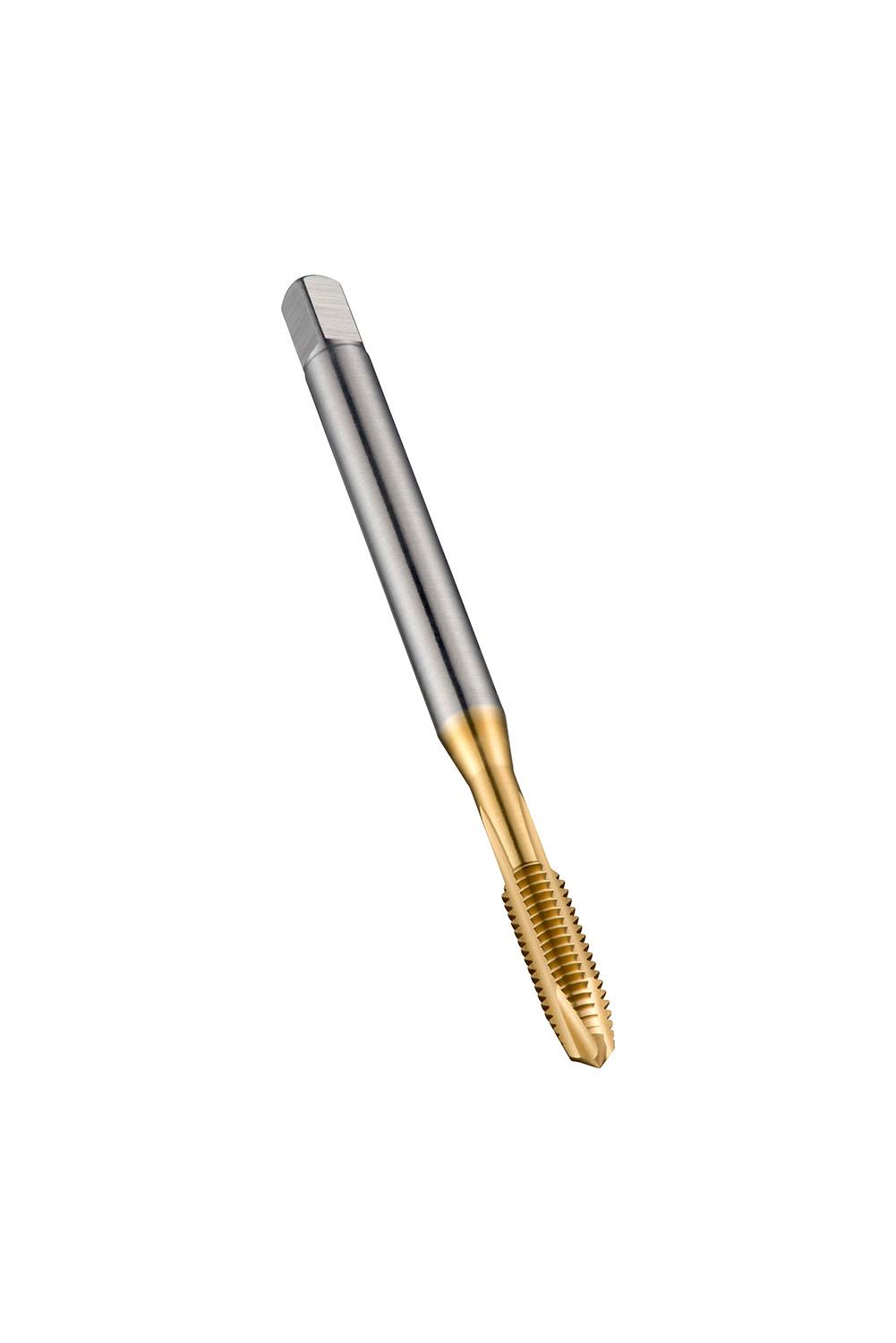

DORMER EP00TINM24 HSS / HSCo DIN Taps

Description

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium

Additional information

Weight	0.3443 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EP00TINM24 Product number (SAP): 86017365 EAN number: 7320760662236 Thread diameter size (TDZ): 24 Thread pitch – millimeter (TP): 3 mm Overall length – millimeter (OAL): 160 mm Overall length – inch (OAL): 6.2992 inch Threading length – millimeter (THL): 38 mm Threading length – inch (THL): 1.4961 inch Connection diameter – inch (DCON MS): 0.7087 inch Connection diameter – millimeter (DCON MS): 18 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.5709 inch Clamping width – millimeter (WSC): 14.5 mm Clamping Length – inch (LCS): 0.6693 inch Clamping Length – millimeter (LSC): 17 mm Premachined hole diameter – inch (PHD): 0.8268 inch Premachined hole diameter – millimeter (PHD): 21 mm Gross weight – grams: 324.5 ISO: EP00TINM24 Ordering code ANSI: EP00TINM24

Need Technical Advice?

Description

Additional information

Brand

DORMER
