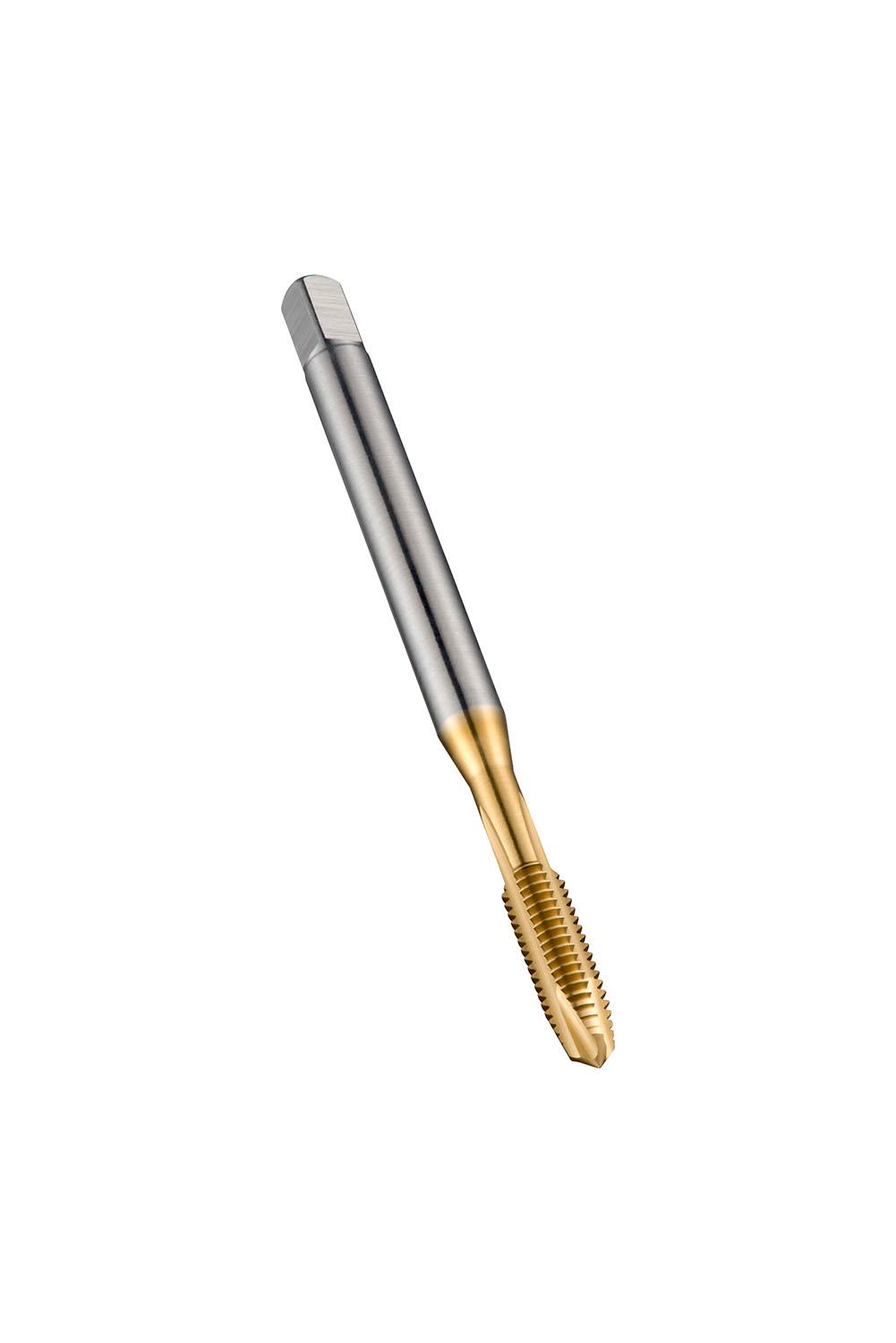

DORMER EP00TINM3 HSS / HSCo DIN Taps

Description

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5mm shank and 2.7mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium

Additional information

Weight	0.0622 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EP00TINM3 Product number (SAP): 86017367 EAN number: 7320760662113 Thread diameter size (TDZ): 3 Thread pitch – millimeter (TP): 0.5 mm Overall length – millimeter (OAL): 56 mm Overall length – inch (OAL): 2.2047 inch Threading length – millimeter (THL): 9 mm Threading length – inch (THL): 0.3543 inch Connection diameter – inch (DCON MS): 0.1378 inch Connection diameter – millimeter (DCON MS): 3.5 mm Flute count (NOF): 3 Usable Length – inch (LU): 0.7087 inch Usable Length – millimeter (LU): 18 mm Clamping width – inch (WSC): 0.1063 inch Clamping width – millimeter (WSC): 2.7 mm Clamping Length – inch (LCS): 0.2362 inch Clamping Length – millimeter (LSC): 6 mm Premachined hole diameter – inch (PHD): 0.0984 inch Premachined hole diameter – millimeter (PHD): 2.5 mm Gross weight – grams: 6 ISO: EP00TINM3 Ordering code ANSI: EP00TINM3

Need Technical Advice?

Description

Additional information

Brand

DORMER
