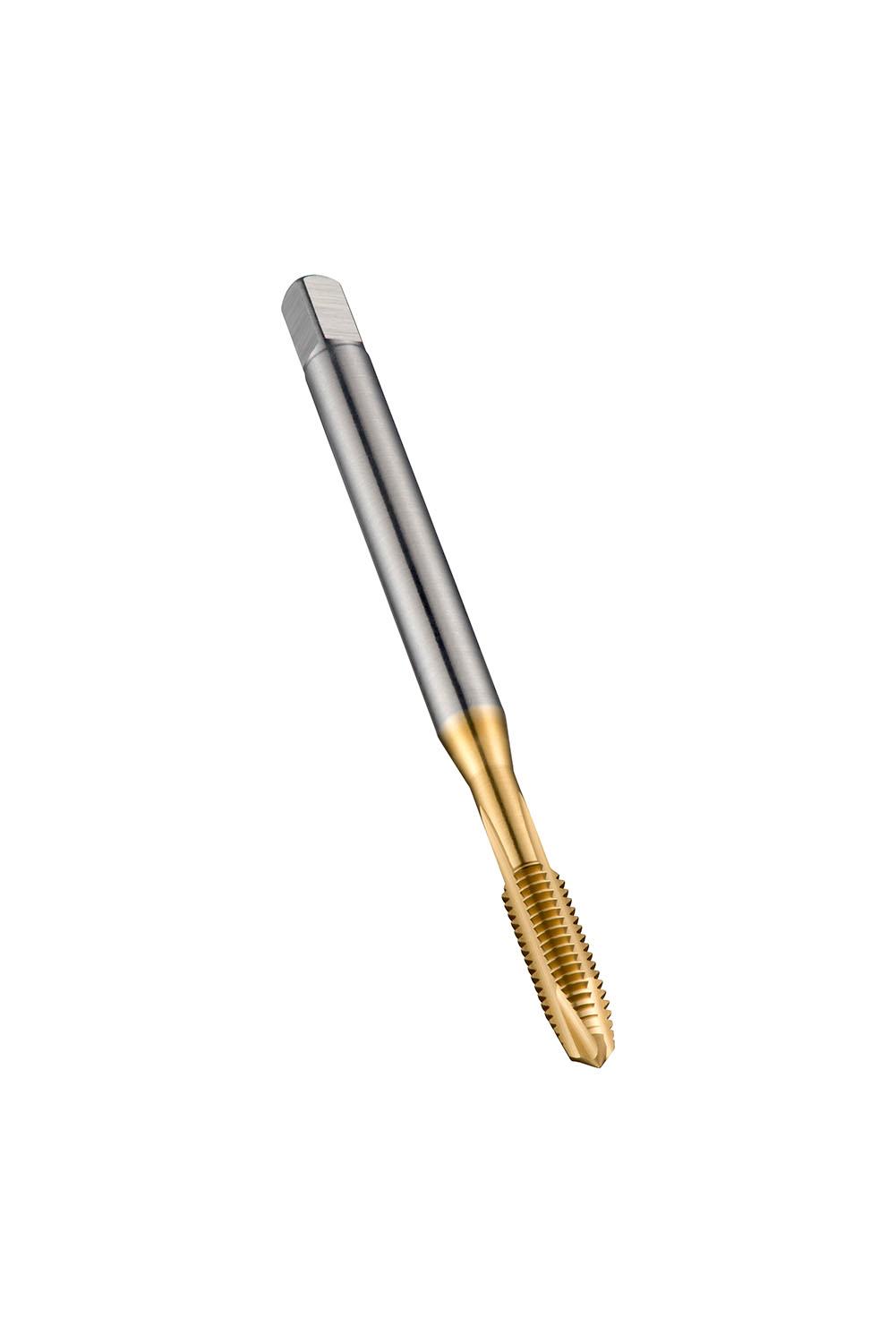

DORMER EP00TINM30 HSS / HSCo DIN Taps

Description

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M30 with 3.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 22.0mm shank and 18.0mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium

Additional information

Weight	0.5841 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EP00TINM30 Product number (SAP): 86017368 EAN number: 7320760662250 Thread diameter size (TDZ): 30 Thread pitch – millimeter (TP): 3.5 mm Overall length – millimeter (OAL): 180 mm Overall length – inch (OAL): 7.0866 inch Threading length – millimeter (THL): 45 mm Threading length – inch (THL): 1.7717 inch Connection diameter – inch (DCON MS): 0.8661 inch Connection diameter – millimeter (DCON MS): 22 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.7087 inch Clamping width – millimeter (WSC): 18 mm Clamping Length – inch (LCS): 0.8268 inch Clamping Length – millimeter (LSC): 21 mm Premachined hole diameter – inch (PHD): 1.0433 inch Premachined hole diameter – millimeter (PHD): 26.5 mm Gross weight – grams: 556.5 ISO: EP00TINM30 Ordering code ANSI: EP00TINM30

Need Technical Advice?

Description

Additional information

Brand

DORMER
