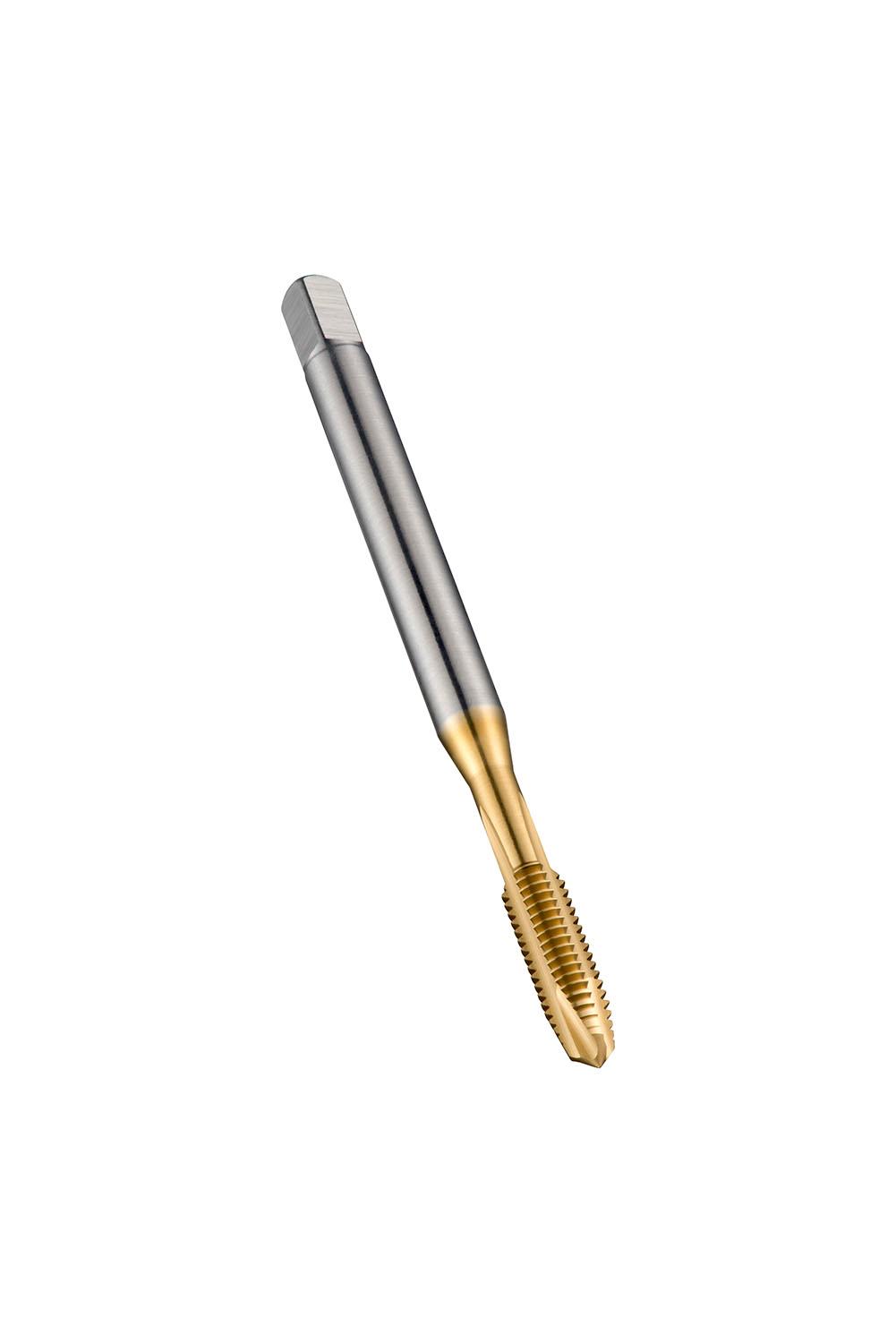

DORMER EP00TINM6 HSS / HSCo DIN Taps

Description

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium

Additional information

Weight	0.0671 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EP00TINM6 Product number (SAP): 86017371 EAN number: 7320760662144 Thread diameter size (TDZ): 6 Thread pitch – millimeter (TP): 1 mm Overall length – millimeter (OAL): 80 mm Overall length – inch (OAL): 3.1496 inch Threading length – millimeter (THL): 15 mm Threading length – inch (THL): 0.5906 inch Connection diameter – inch (DCON MS): 0.2362 inch Connection diameter – millimeter (DCON MS): 6 mm Flute count (NOF): 3 Usable Length – inch (LU): 1.1811 inch Usable Length – millimeter (LU): 30 mm Clamping width – inch (WSC): 0.1929 inch Clamping width – millimeter (WSC): 4.9 mm Clamping Length – inch (LCS): 0.315 inch Clamping Length – millimeter (LSC): 8 mm Premachined hole diameter – inch (PHD): 0.1969 inch Premachined hole diameter – millimeter (PHD): 5 mm Gross weight – grams: 17.2 ISO: EP00TINM6 Ordering code ANSI: EP00TINM6
