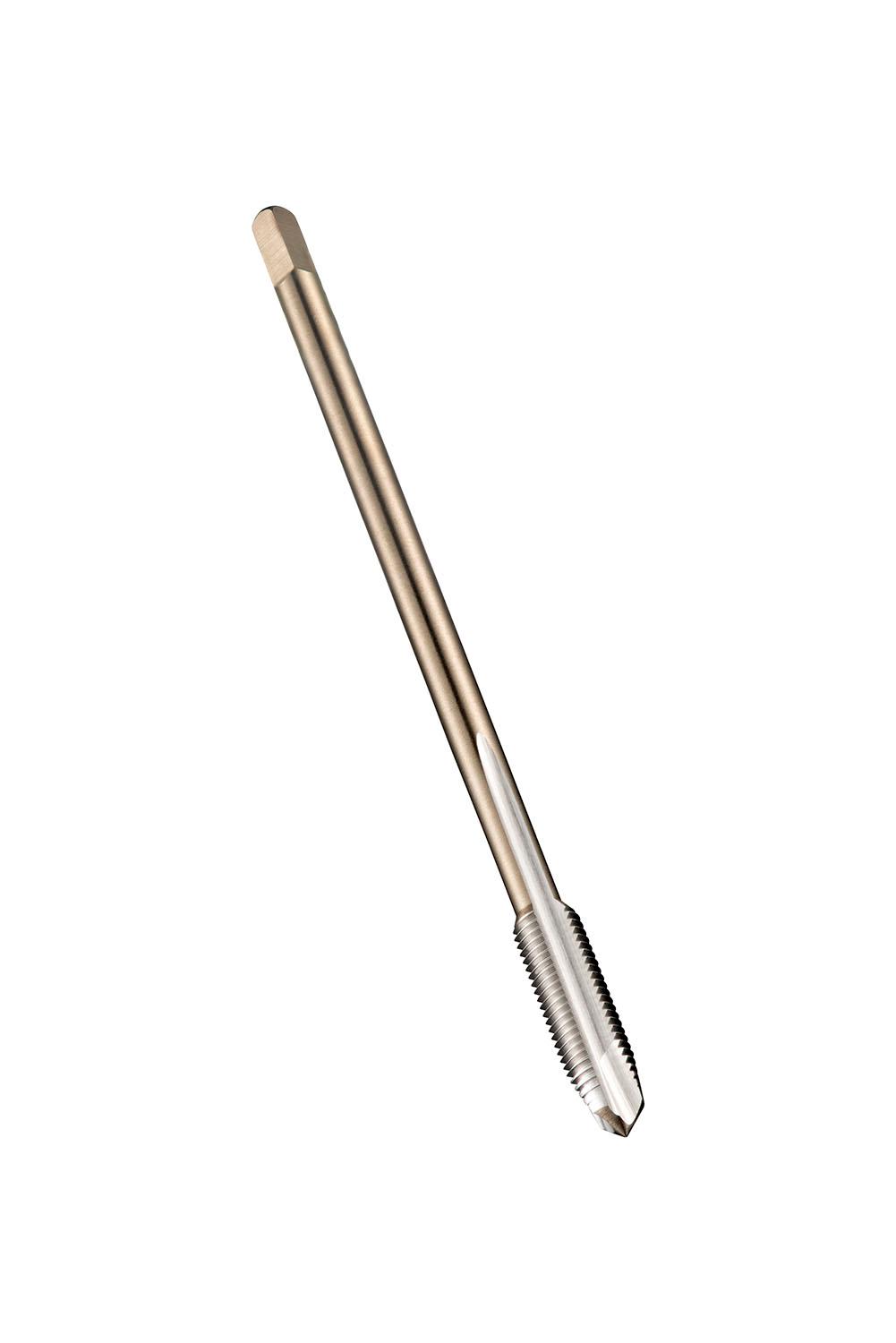

DORMER EP10M10X.75 HSS / HSCo DIN Taps

Description: Value
Product name: EP10M10X.75
Product number (SAP): 86017399
EAN number: 7320760137390
Thread diameter size (TDZ): 10
Thread pitch – millimeter (TP): 0.75 mm
Overall length – millimeter (OAL): 90 mm
Overall length – inch (OAL): 3.5433 inch
Threading length – millimeter (THL): 18 mm
Threading length – inch (THL): 0.7087 inch
Connection diameter – inch (DCON MS): 0.2756 inch
Connection diameter – millimeter (DCON MS): 7 mm
Flute count (NOF): 3
Tolerance limit: D6
Clamping width – inch (WSC): 0.2165 inch
Clamping width – millimeter (WSC): 5.5 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.3661 inch
Premachined hole diameter – millimeter (PHD): 9.3 mm
Gross weight – grams: 34
ISO: EP10M10X.75
Ordering code ANSI: EP10M10X.75
