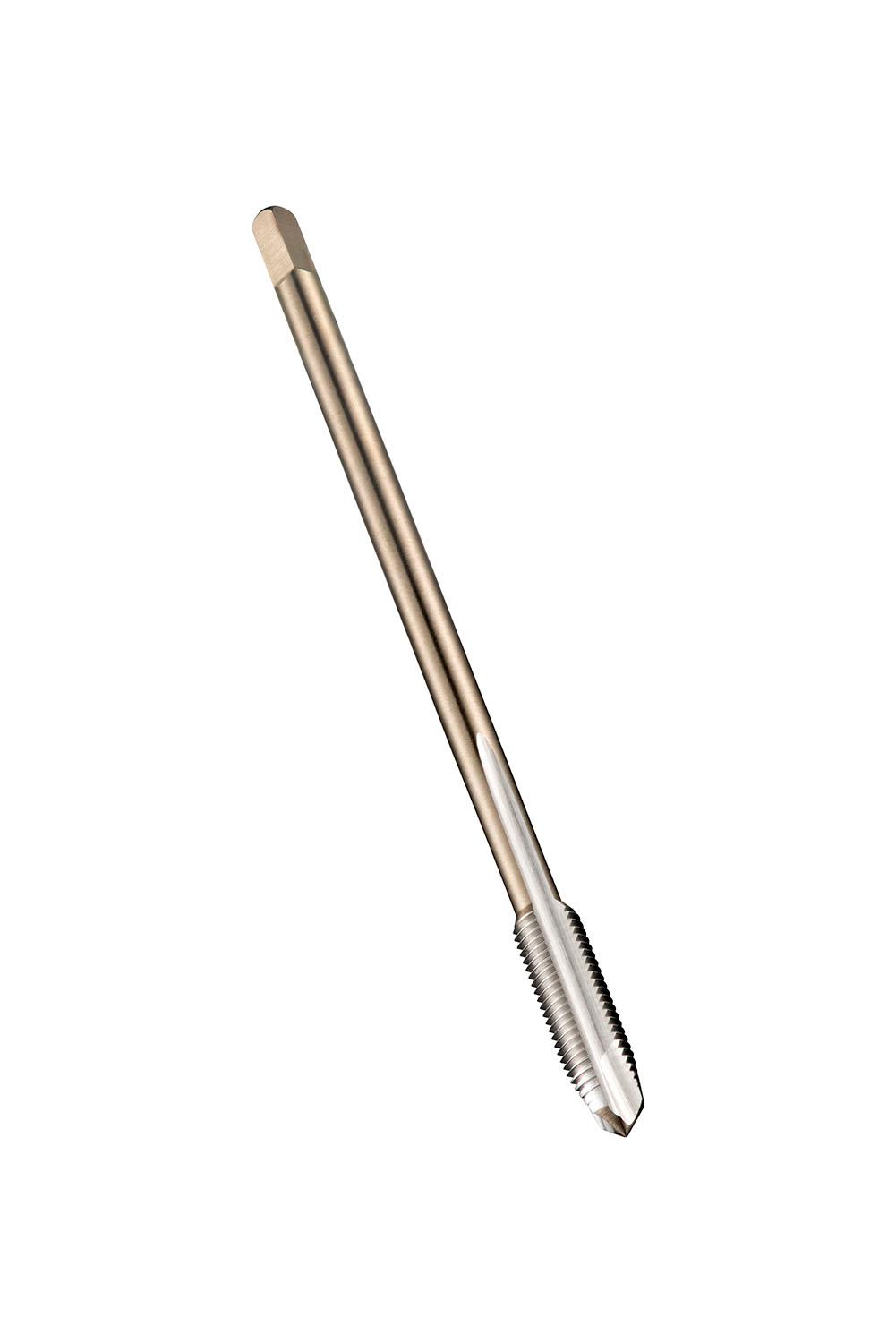

DORMER EP10M30X1.5 HSS / HSCo DIN Taps

Description: Value
Product name: EP10M30X1.5
Product number (SAP): 86017422
EAN number: 7320760137628
Thread diameter size (TDZ): 30
Thread pitch – millimeter (TP): 1.5 mm
Overall length – millimeter (OAL): 150 mm
Overall length – inch (OAL): 5.9055 inch
Threading length – millimeter (THL): 28 mm
Threading length – inch (THL): 1.1024 inch
Connection diameter – inch (DCON MS): 0.8661 inch
Connection diameter – millimeter (DCON MS): 22 mm
Flute count (NOF): 4
Tolerance limit: D9
Clamping width – inch (WSC): 0.7087 inch
Clamping width – millimeter (WSC): 18 mm
Clamping Length – inch (LCS): 0.8268 inch
Clamping Length – millimeter (LSC): 21 mm
Premachined hole diameter – inch (PHD): 1.122 inch
Premachined hole diameter – millimeter (PHD): 28.5 mm
Gross weight – grams: 480.8
ISO: EP10M30X1.5
Ordering code ANSI: EP10M30X1.5
