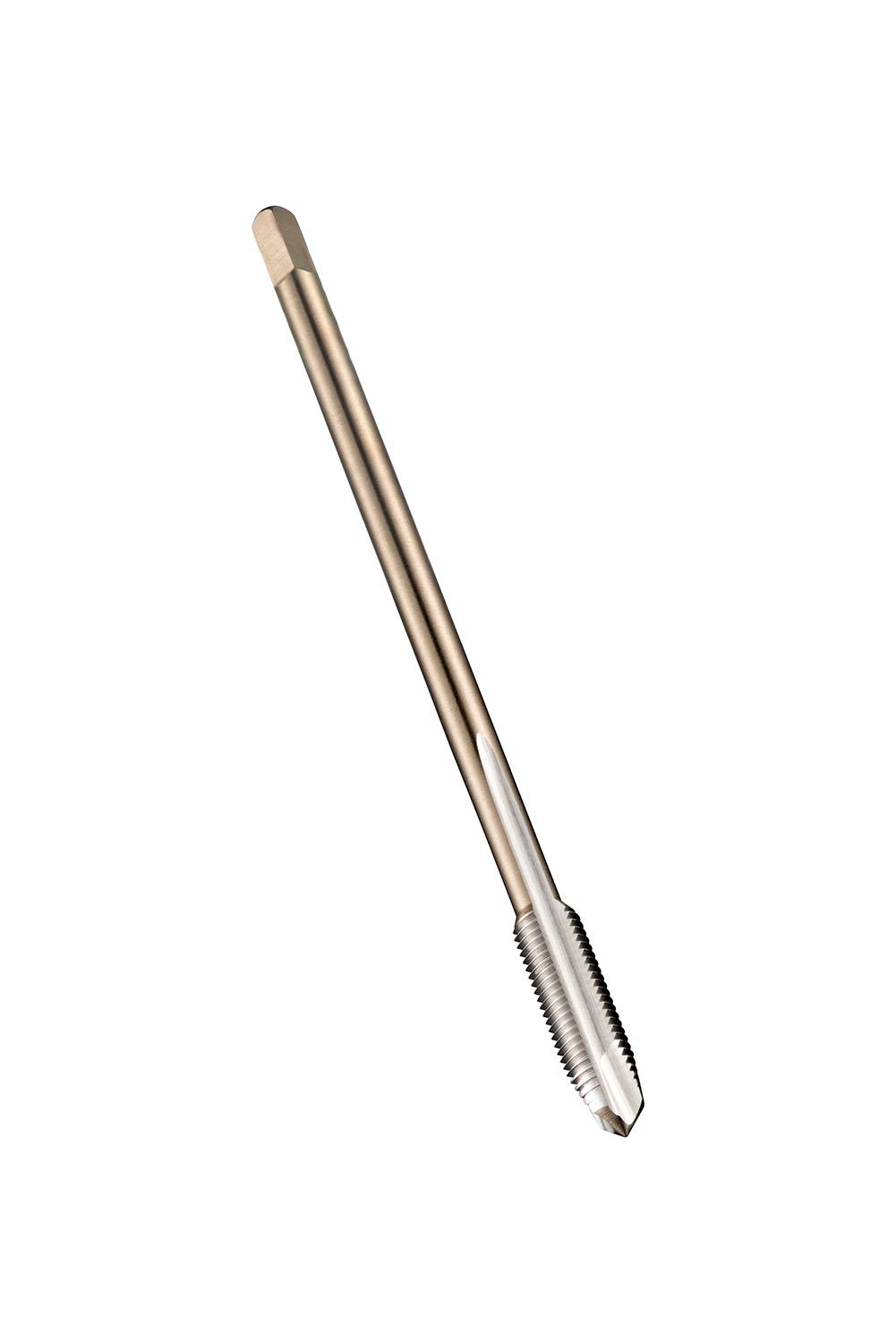

DORMER EP10M6X.75 HSS / HSCo DIN Taps

Description: Value
Product name: EP10M6X.75
Product number (SAP): 86017426
EAN number: 7320760137369
Thread diameter size (TDZ): 6
Thread pitch – millimeter (TP): 0.75 mm
Overall length – millimeter (OAL): 80 mm
Overall length – inch (OAL): 3.1496 inch
Threading length – millimeter (THL): 15 mm
Threading length – inch (THL): 0.5906 inch
Connection diameter – inch (DCON MS): 0.1772 inch
Connection diameter – millimeter (DCON MS): 4.5 mm
Flute count (NOF): 3
Tolerance limit: D5
Clamping width – inch (WSC): 0.1339 inch
Clamping width – millimeter (WSC): 3.4 mm
Clamping Length – inch (LCS): 0.2362 inch
Clamping Length – millimeter (LSC): 6 mm
Premachined hole diameter – inch (PHD): 0.2087 inch
Premachined hole diameter – millimeter (PHD): 5.3 mm
Gross weight – grams: 12.7
ISO: EP10M6X.75
Ordering code ANSI: EP10M6X.75
