DORMER EP10TINM20X1.5 HSS / HSCo DIN Taps

Description

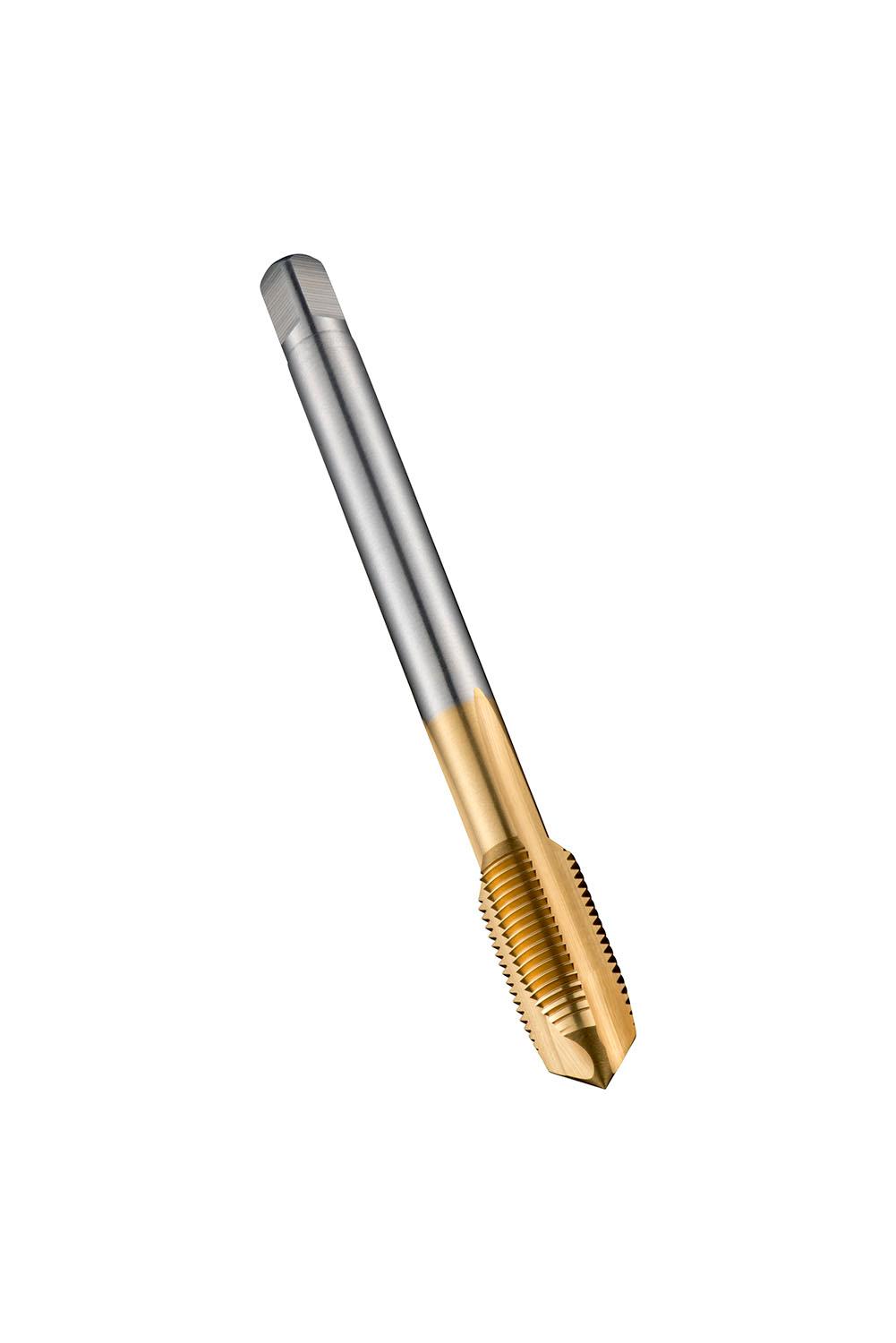

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric Fine thread M20 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 16.0mm shank and 12.0mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium

Additional information

Weight	0.2893 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EP10TINM20X1.5 Product number (SAP): 86017437 EAN number: 7320760662359 Thread diameter size (TDZ): 20 Thread pitch – millimeter (TP): 1.5 mm Overall length – millimeter (OAL): 125 mm Overall length – inch (OAL): 4.9213 inch Threading length – millimeter (THL): 24 mm Threading length – inch (THL): 0.9449 inch Connection diameter – inch (DCON MS): 0.6299 inch Connection diameter – millimeter (DCON MS): 16 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.4724 inch Clamping width – millimeter (WSC): 12 mm Clamping Length – inch (LCS): 0.5906 inch Clamping Length – millimeter (LSC): 15 mm Premachined hole diameter – inch (PHD): 0.7283 inch Premachined hole diameter – millimeter (PHD): 18.5 mm Gross weight – grams: 198 ISO: EP10TINM20X1.5 Ordering code ANSI: EP10TINM20X1.5

Need Technical Advice?

Description

Additional information

Brand

DORMER
