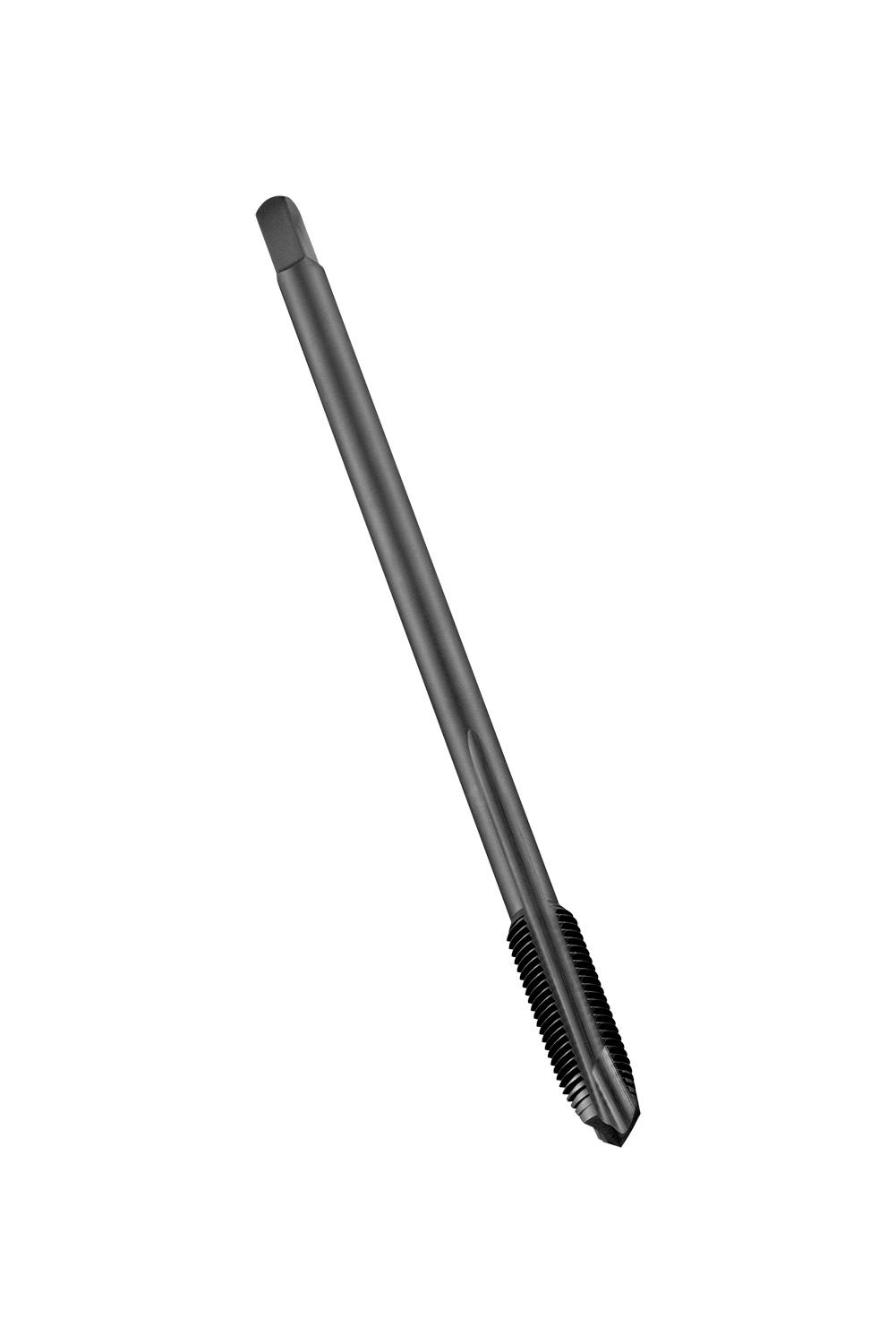

DORMER EP11M18X1.5 HSS / HSCo DIN Taps

Description: Value
Product name: EP11M18X1.5
Product number (SAP): 86017451
EAN number: 7320760137895
Thread diameter size (TDZ): 18
Thread pitch – millimeter (TP): 1.5 mm
Overall length – millimeter (OAL): 110 mm
Overall length – inch (OAL): 4.3307 inch
Threading length – millimeter (THL): 24 mm
Threading length – inch (THL): 0.9449 inch
Connection diameter – inch (DCON MS): 0.5512 inch
Connection diameter – millimeter (DCON MS): 14 mm
Flute count (NOF): 4
Tolerance limit: D7
Clamping width – inch (WSC): 0.4331 inch
Clamping width – millimeter (WSC): 11 mm
Clamping Length – inch (LCS): 0.5512 inch
Clamping Length – millimeter (LSC): 14 mm
Premachined hole diameter – inch (PHD): 0.6496 inch
Premachined hole diameter – millimeter (PHD): 16.5 mm
Gross weight – grams: 133.5
ISO: EP11M18X1.5
Ordering code ANSI: EP11M18X1.5
