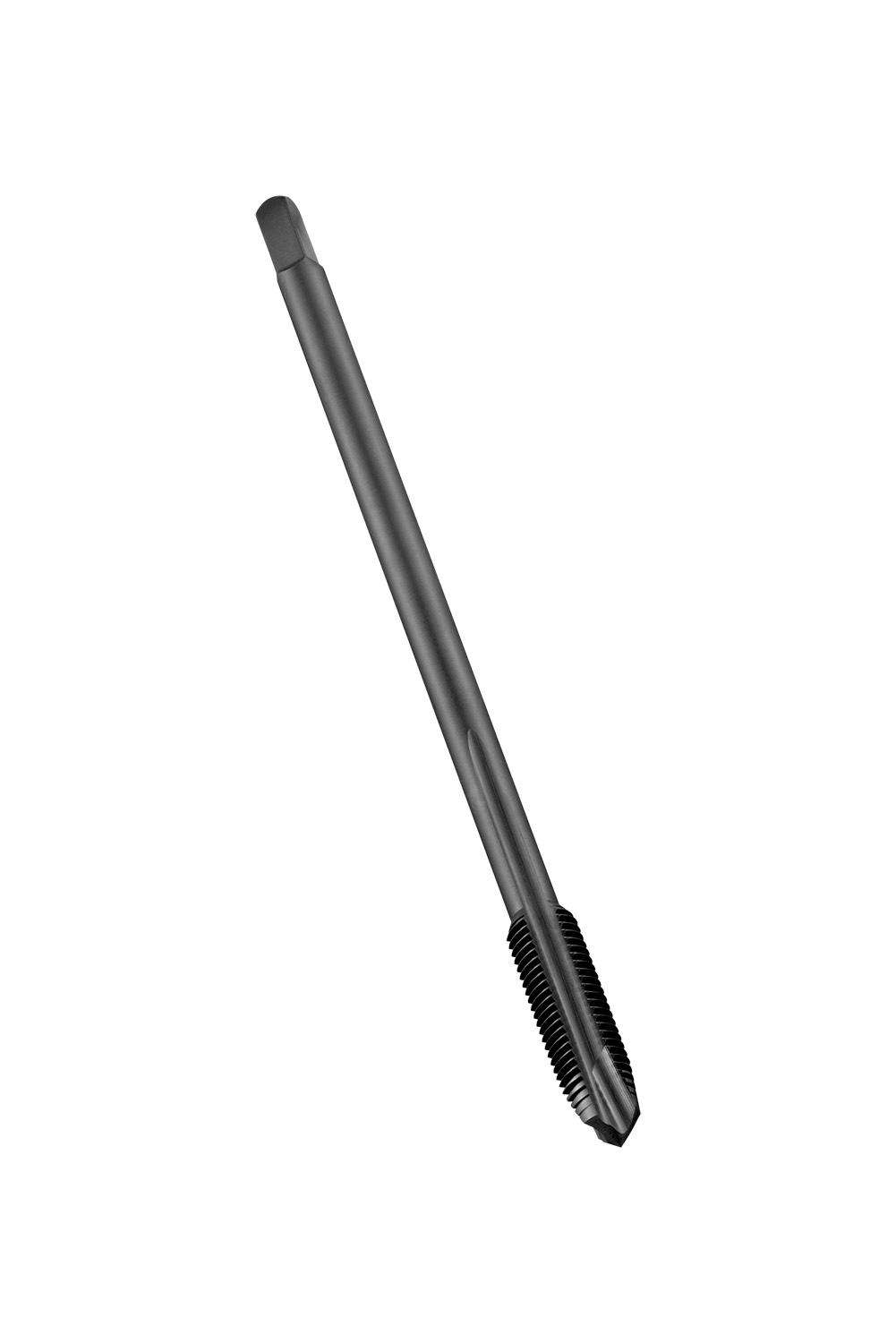

DORMER EP11M24X1.5 HSS / HSCo DIN Taps

Description: Value
Product name: EP11M24X1.5
Product number (SAP): 86017455
EAN number: 7320760137932
Thread diameter size (TDZ): 24
Thread pitch – millimeter (TP): 1.5 mm
Overall length – millimeter (OAL): 140 mm
Overall length – inch (OAL): 5.5118 inch
Threading length – millimeter (THL): 28 mm
Threading length – inch (THL): 1.1024 inch
Connection diameter – inch (DCON MS): 0.7087 inch
Connection diameter – millimeter (DCON MS): 18 mm
Flute count (NOF): 4
Tolerance limit: D8
Clamping width – inch (WSC): 0.5709 inch
Clamping width – millimeter (WSC): 14.5 mm
Clamping Length – inch (LCS): 0.6693 inch
Clamping Length – millimeter (LSC): 17 mm
Premachined hole diameter – inch (PHD): 0.8858 inch
Premachined hole diameter – millimeter (PHD): 22.5 mm
Gross weight – grams: 290
ISO: EP11M24X1.5
Ordering code ANSI: EP11M24X1.5
