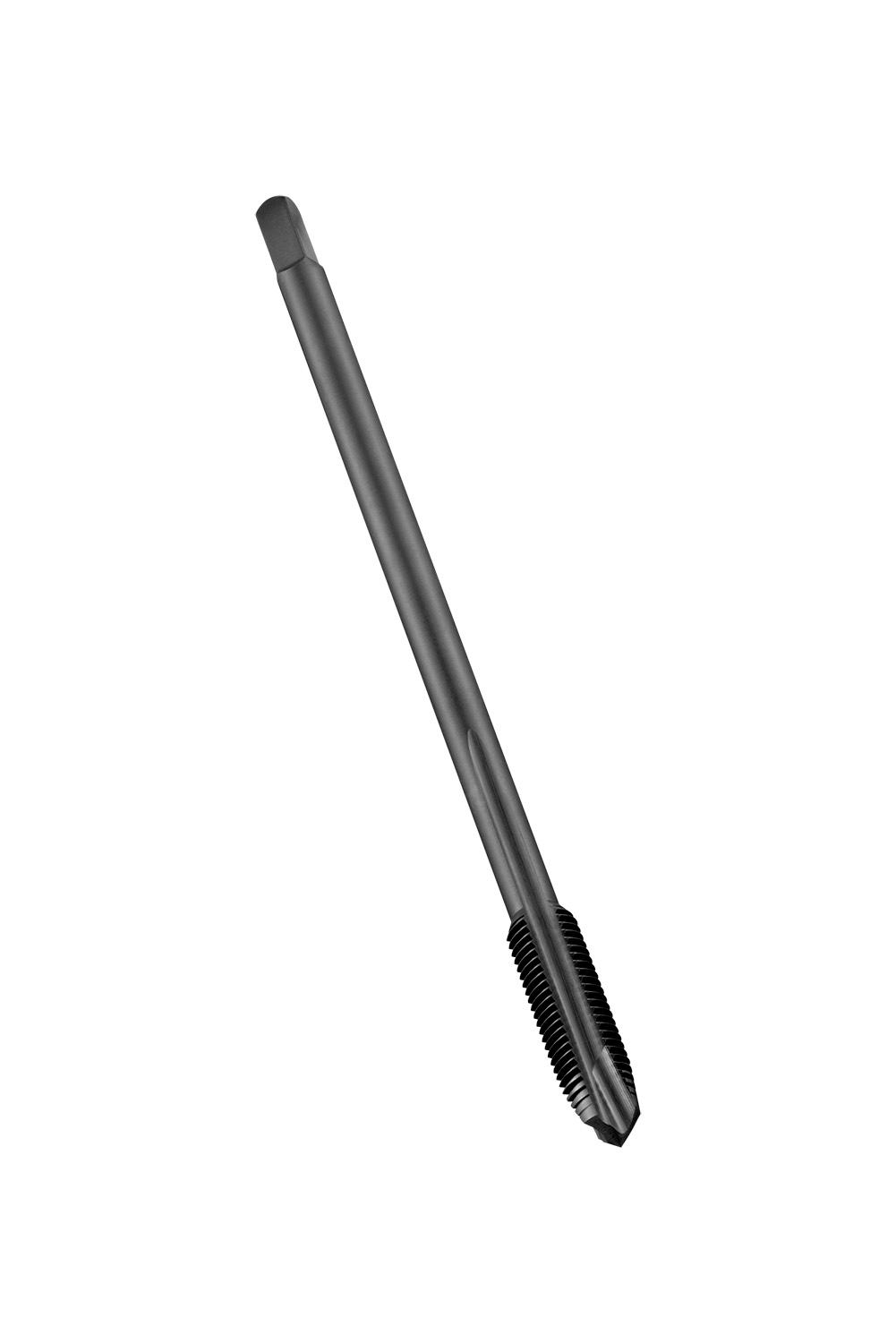

DORMER EP11M4X.5 HSS / HSCo DIN Taps

Description: Value
Product name: EP11M4X.5
Product number (SAP): 86017464
EAN number: 7320760137642
Thread diameter size (TDZ): 4
Thread pitch – millimeter (TP): 0.5 mm
Overall length – millimeter (OAL): 63 mm
Overall length – inch (OAL): 2.4803 inch
Threading length – millimeter (THL): 12 mm
Threading length – inch (THL): 0.4724 inch
Connection diameter – inch (DCON MS): 0.1102 inch
Connection diameter – millimeter (DCON MS): 2.8 mm
Flute count (NOF): 3
Tolerance limit: D4
Clamping width – inch (WSC): 0.0827 inch
Clamping width – millimeter (WSC): 2.1 mm
Clamping Length – inch (LCS): 0.1969 inch
Clamping Length – millimeter (LSC): 5 mm
Premachined hole diameter – inch (PHD): 0.1378 inch
Premachined hole diameter – millimeter (PHD): 3.5 mm
Gross weight – grams: 5.8
ISO: EP11M4X.5
Ordering code ANSI: EP11M4X.5
