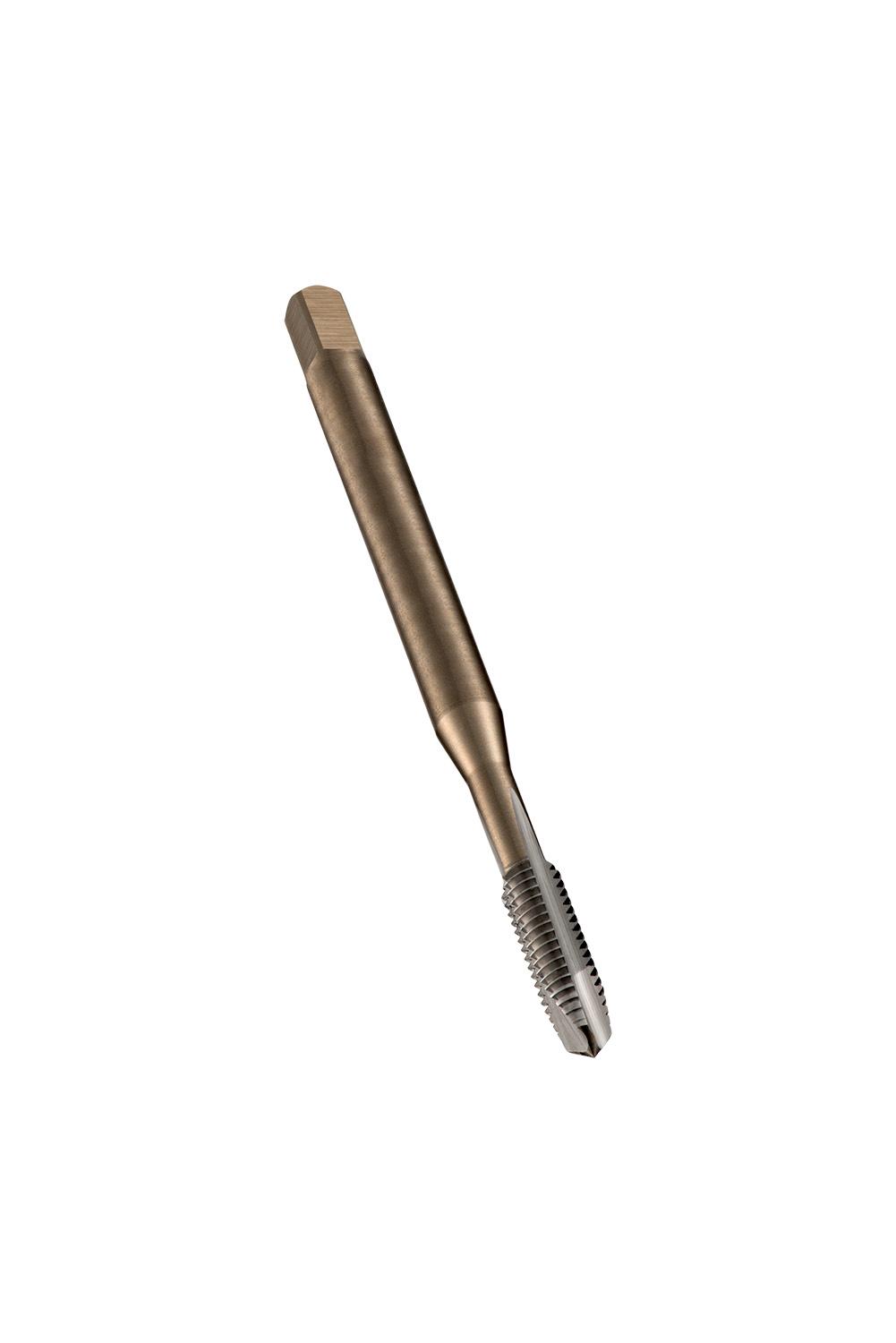

DORMER EP201/2 HSS / HSCo DIN Taps

Description

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1/2″ with 13 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 9.0mm shank and 7.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium

Additional information

Weight	0.1232 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EP201/2 Product number (SAP): 86017470 EAN number: 7320760138120 Thread diameter size (TDZ): 1/2 Thread diameter – millimeter (TD): 12.7 mm Threads per inch (TPI): 13 Overall length – millimeter (OAL): 110 mm Overall length – inch (OAL): 4.3307 inch Threading length – millimeter (THL): 23 mm Threading length – inch (THL): 0.9055 inch Connection diameter – inch (DCON MS): 0.3543 inch Connection diameter – millimeter (DCON MS): 9 mm Flute count (NOF): 3 Tolerance limit: H5 Clamping width – inch (WSC): 0.2756 inch Clamping width – millimeter (WSC): 7 mm Clamping Length – inch (LCS): 0.3937 inch Clamping Length – millimeter (LSC): 10 mm Premachined hole diameter – inch (PHD): 0.4252 inch Premachined hole diameter – millimeter (PHD): 10.8 mm Gross weight – grams: 58 ISO: EP201/2 Ordering code ANSI: EP201/2

Need Technical Advice?

Description

Additional information

Brand

DORMER
