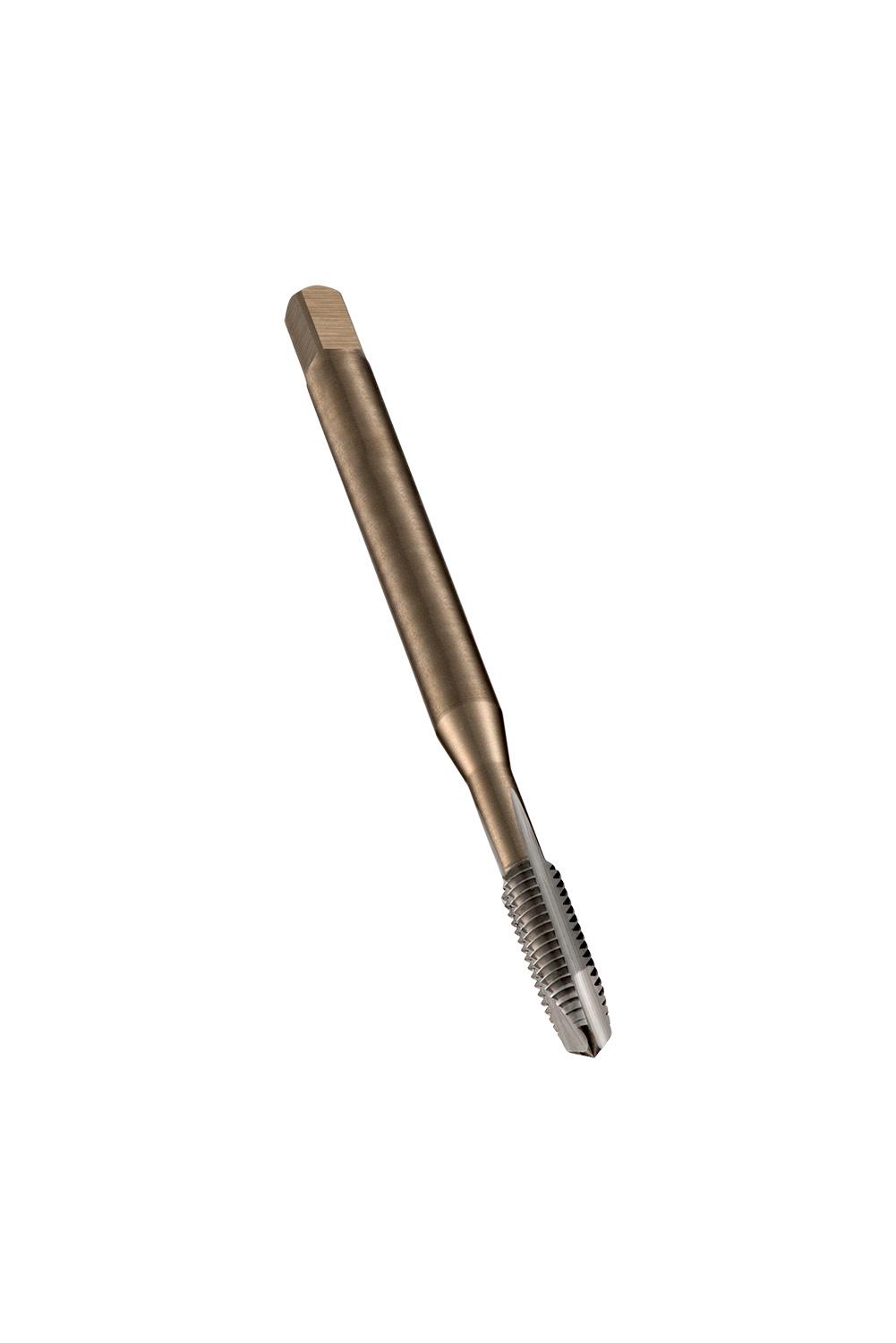

DORMER EP201 HSS / HSCo DIN Taps

Description: Value
Product name: EP201
Product number (SAP): 86017469
EAN number: 7320760138168
Thread diameter size (TDZ): 1"
Thread diameter – millimeter (TD): 25.4 mm
Threads per inch (TPI): 8
Overall length – millimeter (OAL): 160 mm
Overall length – inch (OAL): 6.2992 inch
Threading length – millimeter (THL): 38 mm
Threading length – inch (THL): 1.4961 inch
Connection diameter – inch (DCON MS): 0.7087 inch
Connection diameter – millimeter (DCON MS): 18 mm
Flute count (NOF): 4
Tolerance limit: H6
Clamping width – inch (WSC): 0.5709 inch
Clamping width – millimeter (WSC): 14.5 mm
Clamping Length – inch (LCS): 0.6693 inch
Clamping Length – millimeter (LSC): 17 mm
Premachined hole diameter – inch (PHD): 0.876 inch
Premachined hole diameter – millimeter (PHD): 22.25 mm
Gross weight – grams: 335
ISO: EP201
Ordering code ANSI: EP201
