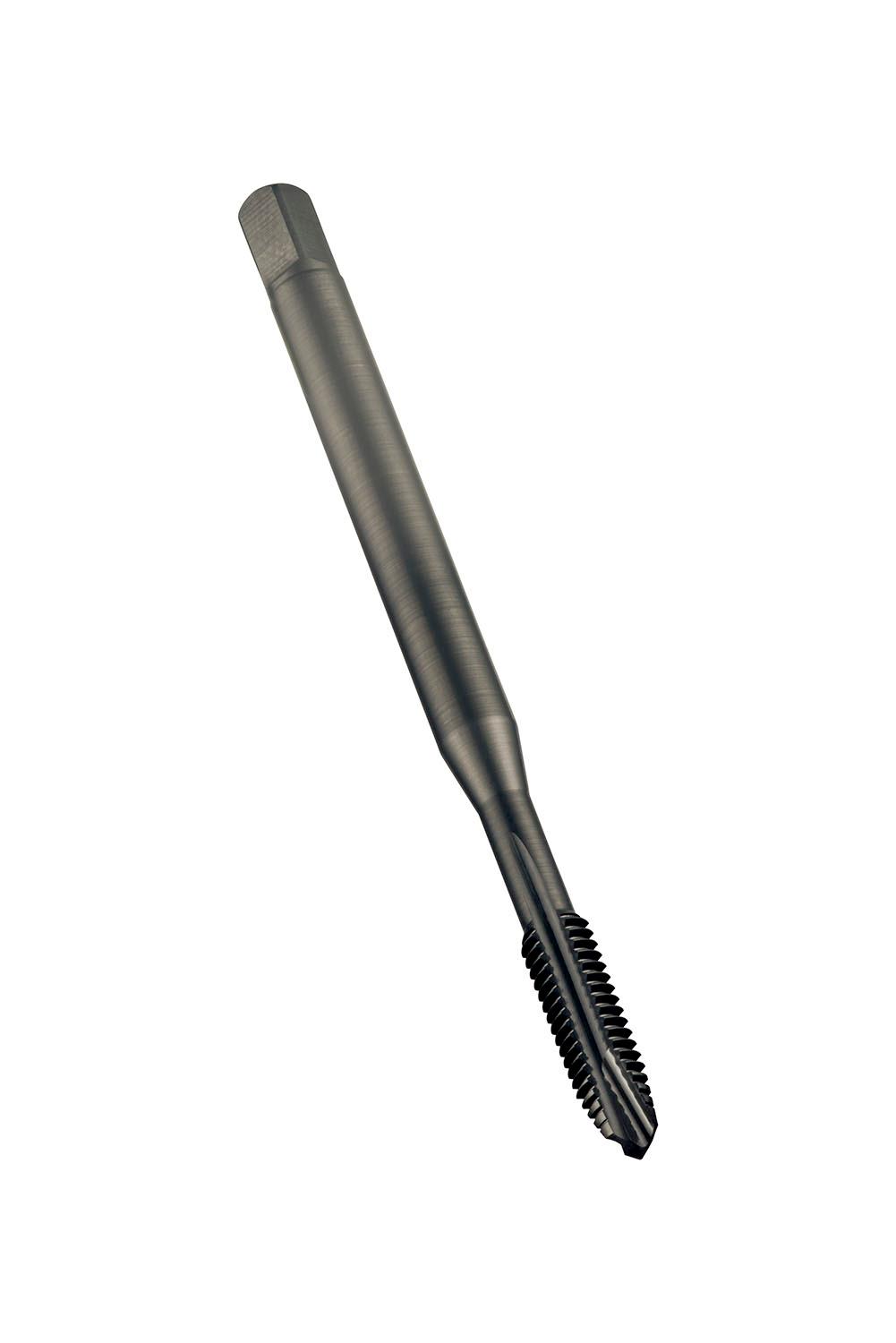

DORMER EP213/4 HSS / HSCo DIN Taps

Description: Value
Product name: EP213/4
Product number (SAP): 86017489
EAN number: 7320760138335
Thread diameter size (TDZ): 3/4
Thread diameter – millimeter (TD): 19.05 mm
Threads per inch (TPI): 10
Overall length – millimeter (OAL): 125 mm
Overall length – inch (OAL): 4.9213 inch
Threading length – millimeter (THL): 30 mm
Threading length – inch (THL): 1.1811 inch
Connection diameter – inch (DCON MS): 0.5512 inch
Connection diameter – millimeter (DCON MS): 14 mm
Flute count (NOF): 4
Tolerance limit: H5
Clamping width – inch (WSC): 0.4331 inch
Clamping width – millimeter (WSC): 11 mm
Clamping Length – inch (LCS): 0.5512 inch
Clamping Length – millimeter (LSC): 14 mm
Premachined hole diameter – inch (PHD): 0.6496 inch
Premachined hole diameter – millimeter (PHD): 16.5 mm
Gross weight – grams: 157.8
ISO: EP213/4
Ordering code ANSI: EP213/4
