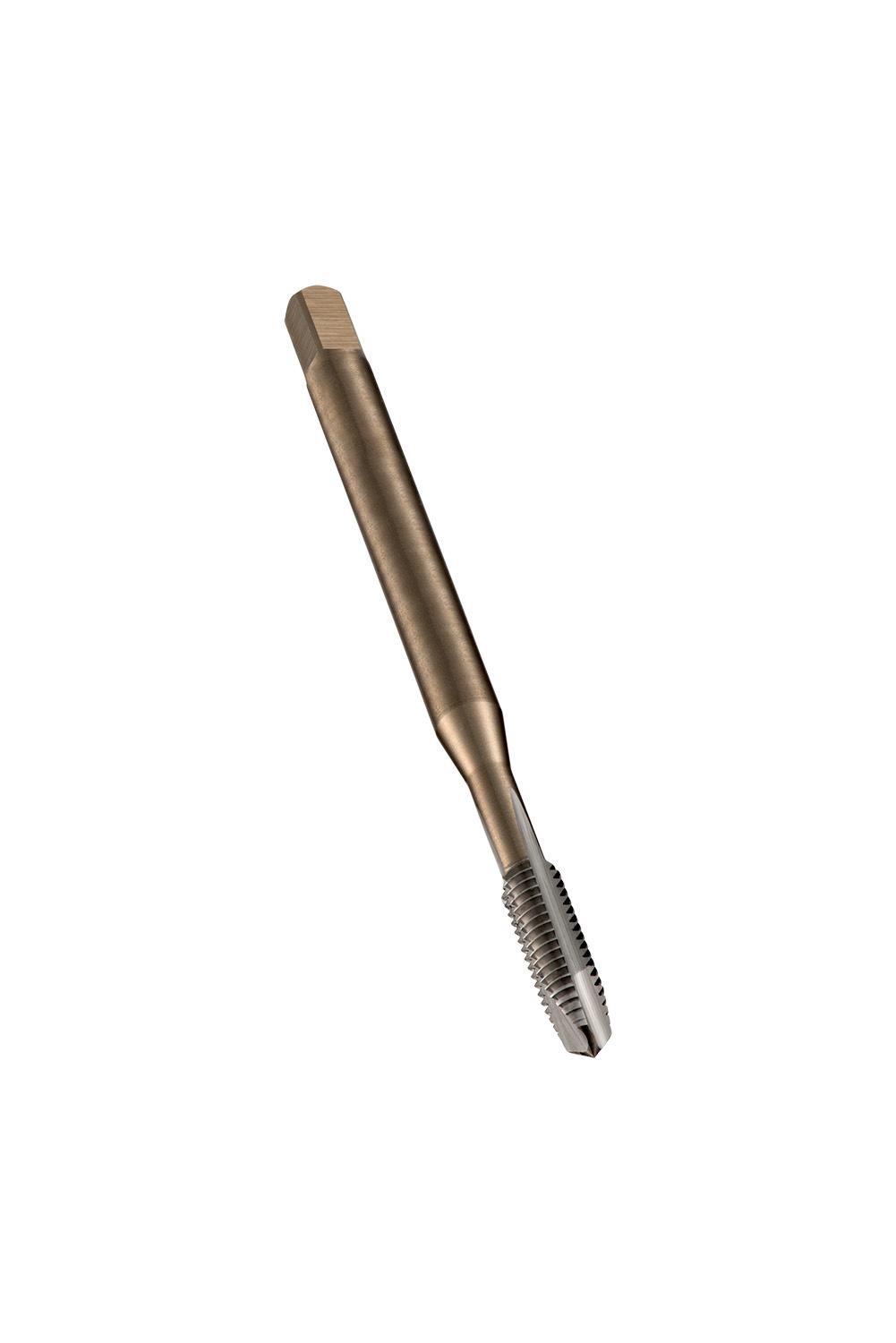

DORMER EP301/2 HSS / HSCo DIN Taps

Description: Value
Product name: EP301/2
Product number (SAP): 86017500
EAN number: 7320760138427
Thread diameter size (TDZ): 1/2
Thread diameter – millimeter (TD): 12.7 mm
Threads per inch (TPI): 20
Overall length – millimeter (OAL): 110 mm
Overall length – inch (OAL): 4.3307 inch
Threading length – millimeter (THL): 23 mm
Threading length – inch (THL): 0.9055 inch
Connection diameter – inch (DCON MS): 0.3543 inch
Connection diameter – millimeter (DCON MS): 9 mm
Flute count (NOF): 3
Tolerance limit: H5
Clamping width – inch (WSC): 0.2756 inch
Clamping width – millimeter (WSC): 7 mm
Clamping Length – inch (LCS): 0.3937 inch
Clamping Length – millimeter (LSC): 10 mm
Premachined hole diameter – inch (PHD): 0.4528 inch
Premachined hole diameter – millimeter (PHD): 11.5 mm
Gross weight – grams: 59.8
ISO: EP301/2
Ordering code ANSI: EP301/2
