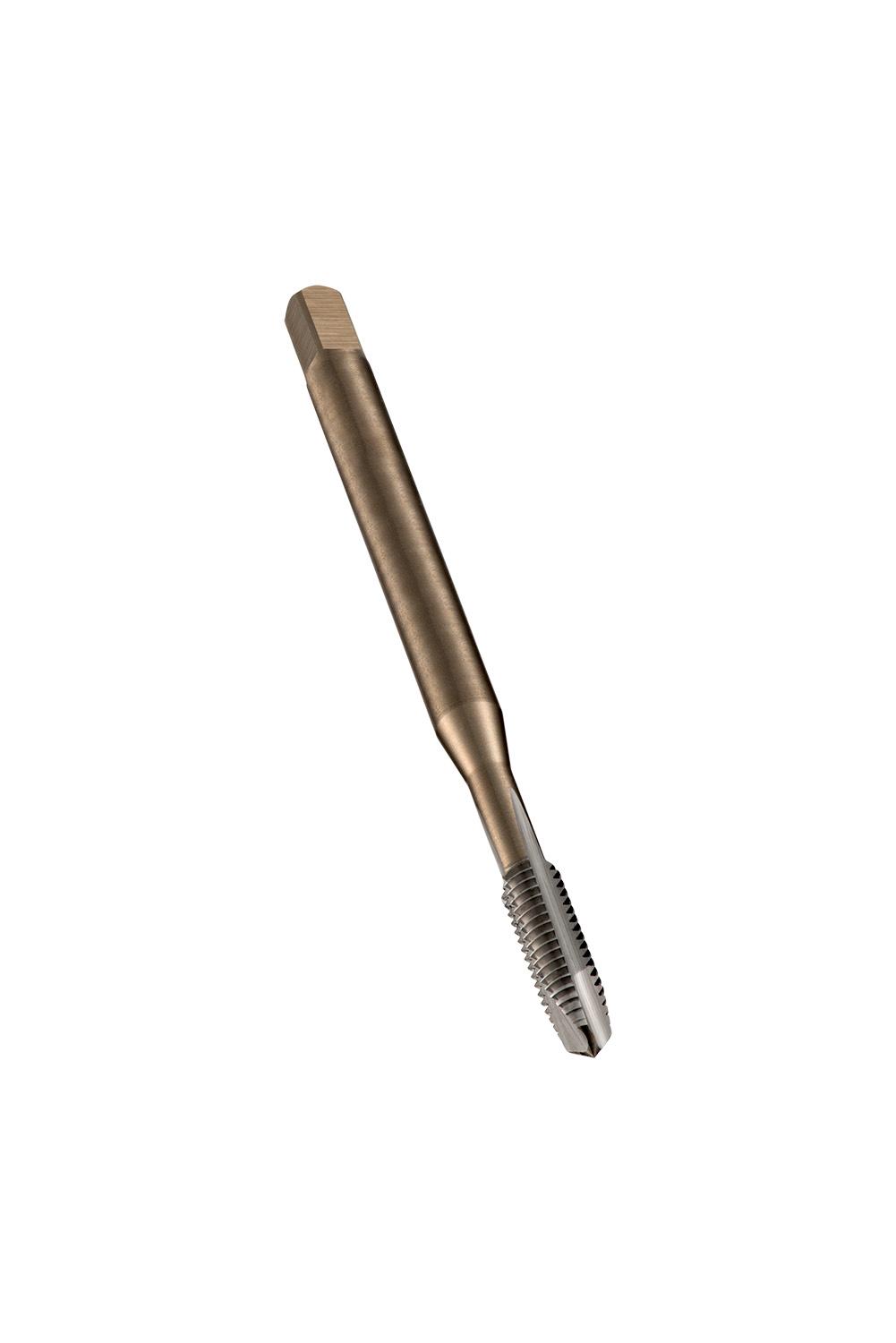

DORMER EP301 HSS / HSCo DIN Taps

Product Code: EP301

$406.75$369.77 Ex. GST

Product Code: EP301 SKU EP301 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Spiral point tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1″ with 12 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloy

Additional information

Weight 0.3949 kg
Dimensions
barcode
Additional Information

Description: Value
Product name: EP301
Product number (SAP): 86017499
EAN number: 7320760138465
Thread diameter size (TDZ): 1"
Thread diameter – millimeter (TD): 25.4 mm
Threads per inch (TPI): 12
Overall length – millimeter (OAL): 160 mm
Overall length – inch (OAL): 6.2992 inch
Threading length – millimeter (THL): 38 mm
Threading length – inch (THL): 1.4961 inch
Connection diameter – inch (DCON MS): 0.7087 inch
Connection diameter – millimeter (DCON MS): 18 mm
Flute count (NOF): 4
Tolerance limit: H6
Clamping width – inch (WSC): 0.5709 inch
Clamping width – millimeter (WSC): 14.5 mm
Clamping Length – inch (LCS): 0.6693 inch
Clamping Length – millimeter (LSC): 17 mm
Premachined hole diameter – inch (PHD): 0.9154 inch
Premachined hole diameter – millimeter (PHD): 23.25 mm
Gross weight – grams: 340
ISO: EP301
Ordering code ANSI: EP301

Brand

DORMER
