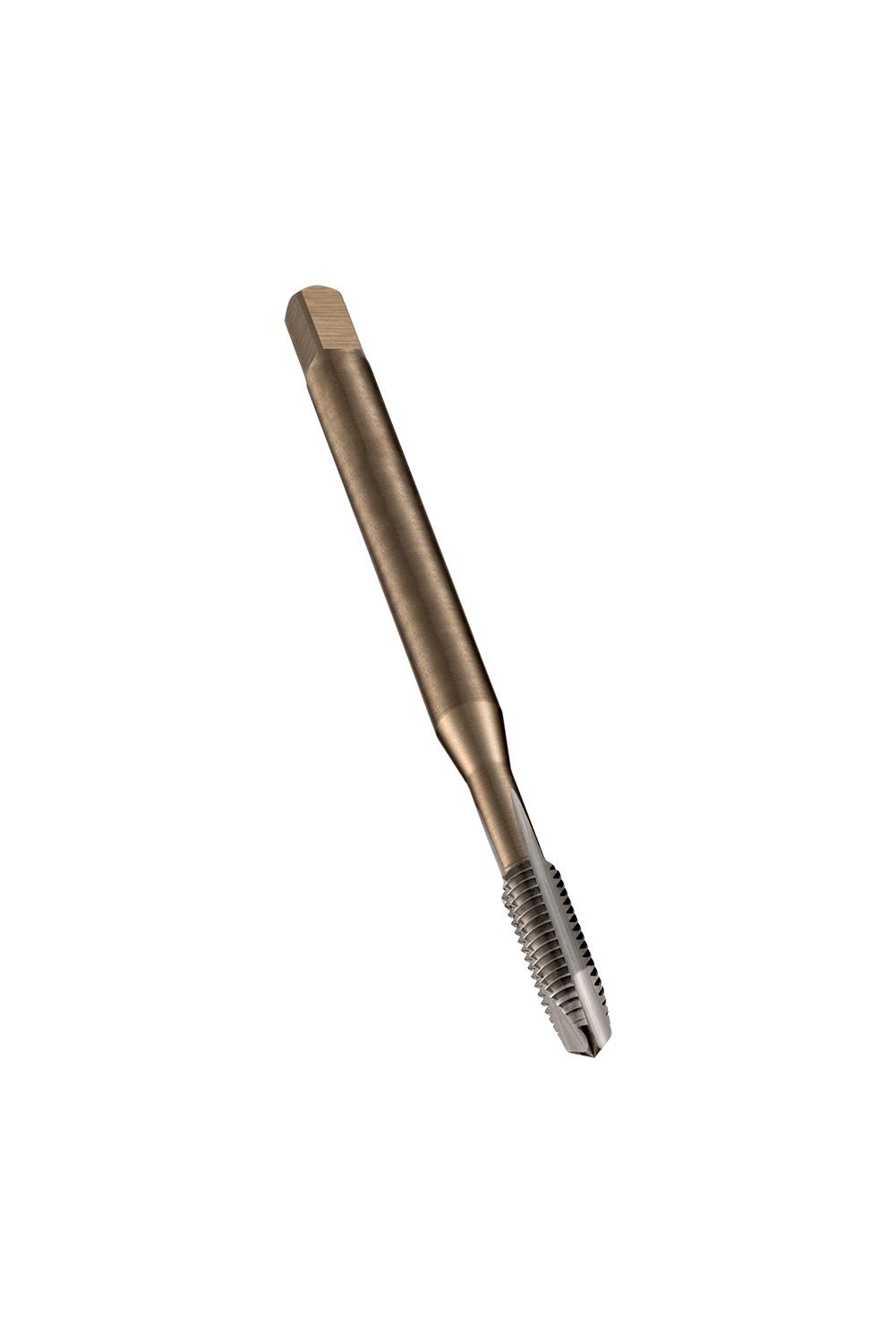

DORMER EP303/8 HSS / HSCo DIN Taps

Description: Value
Product name: EP303/8
Product number (SAP): 86017504
EAN number: 7320760138403
Thread diameter size (TDZ): 3/8
Thread diameter – millimeter (TD): 9.525 mm
Threads per inch (TPI): 24
Overall length – millimeter (OAL): 100 mm
Overall length – inch (OAL): 3.937 inch
Threading length – millimeter (THL): 20 mm
Threading length – inch (THL): 0.7874 inch
Connection diameter – inch (DCON MS): 0.3937 inch
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 3
Tolerance limit: H4
Usable Length – inch (LU): 1.5354 inch
Usable Length – millimeter (LU): 39 mm
Clamping width – inch (WSC): 0.315 inch
Clamping width – millimeter (WSC): 8 mm
Clamping Length – inch (LCS): 0.4331 inch
Clamping Length – millimeter (LSC): 11 mm
Premachined hole diameter – inch (PHD): 0.3346 inch
Premachined hole diameter – millimeter (PHD): 8.5 mm
Gross weight – grams: 54
ISO: EP303/8
Ordering code ANSI: EP303/8
