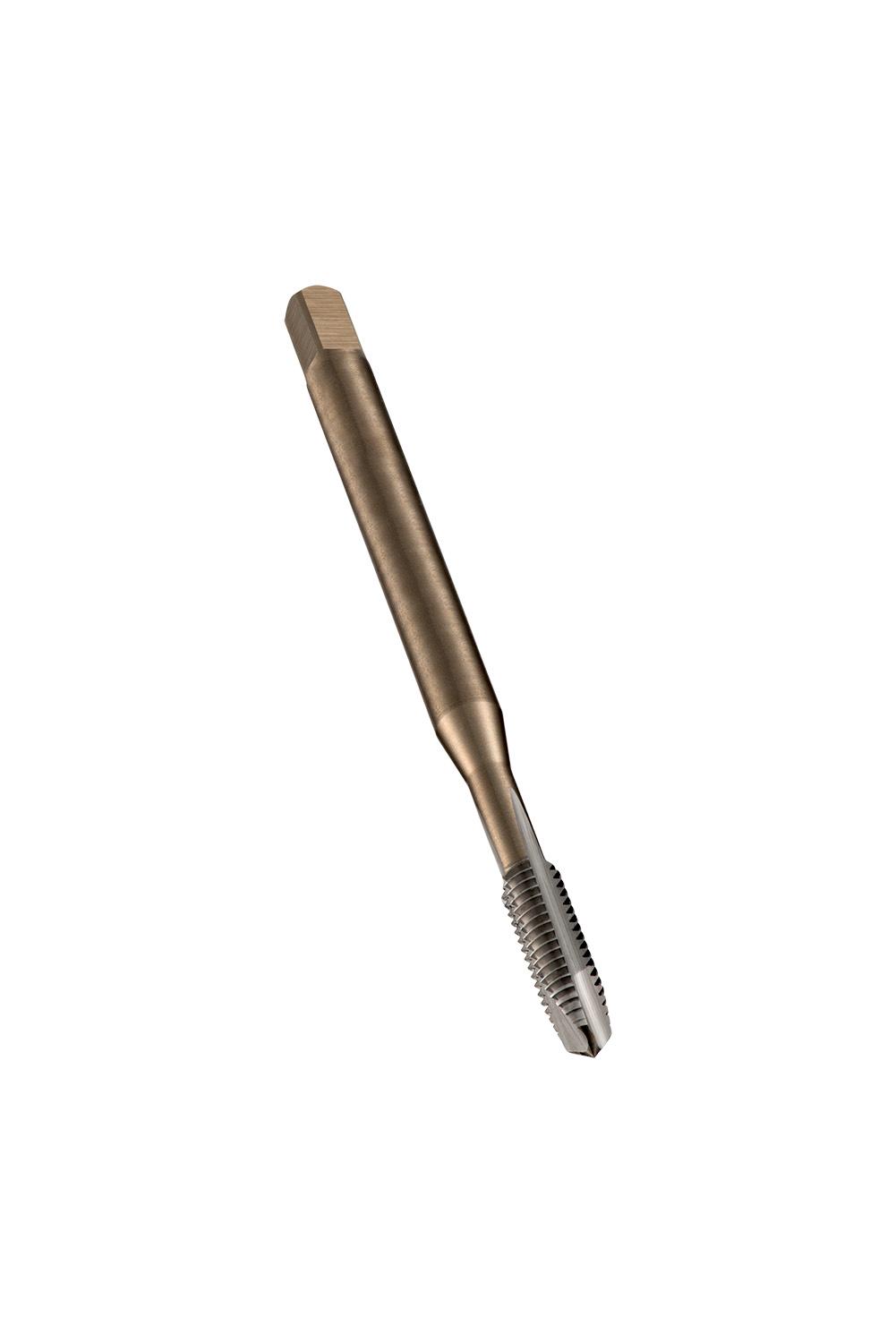

DORMER EP305/8 HSS / HSCo DIN Taps

Description: Value
Product name: EP305/8
Product number (SAP): 86017506
EAN number: 7320760138434
Thread diameter size (TDZ): 5/8
Thread diameter – millimeter (TD): 15.875 mm
Threads per inch (TPI): 18
Overall length – millimeter (OAL): 110 mm
Overall length – inch (OAL): 4.3307 inch
Threading length – millimeter (THL): 25 mm
Threading length – inch (THL): 0.9843 inch
Connection diameter – inch (DCON MS): 0.4724 inch
Connection diameter – millimeter (DCON MS): 12 mm
Flute count (NOF): 3
Tolerance limit: H5
Clamping width – inch (WSC): 0.3543 inch
Clamping width – millimeter (WSC): 9 mm
Clamping Length – inch (LCS): 0.4724 inch
Clamping Length – millimeter (LSC): 12 mm
Premachined hole diameter – inch (PHD): 0.5709 inch
Premachined hole diameter – millimeter (PHD): 14.5 mm
Gross weight – grams: 100.4
ISO: EP305/8
Ordering code ANSI: EP305/8
