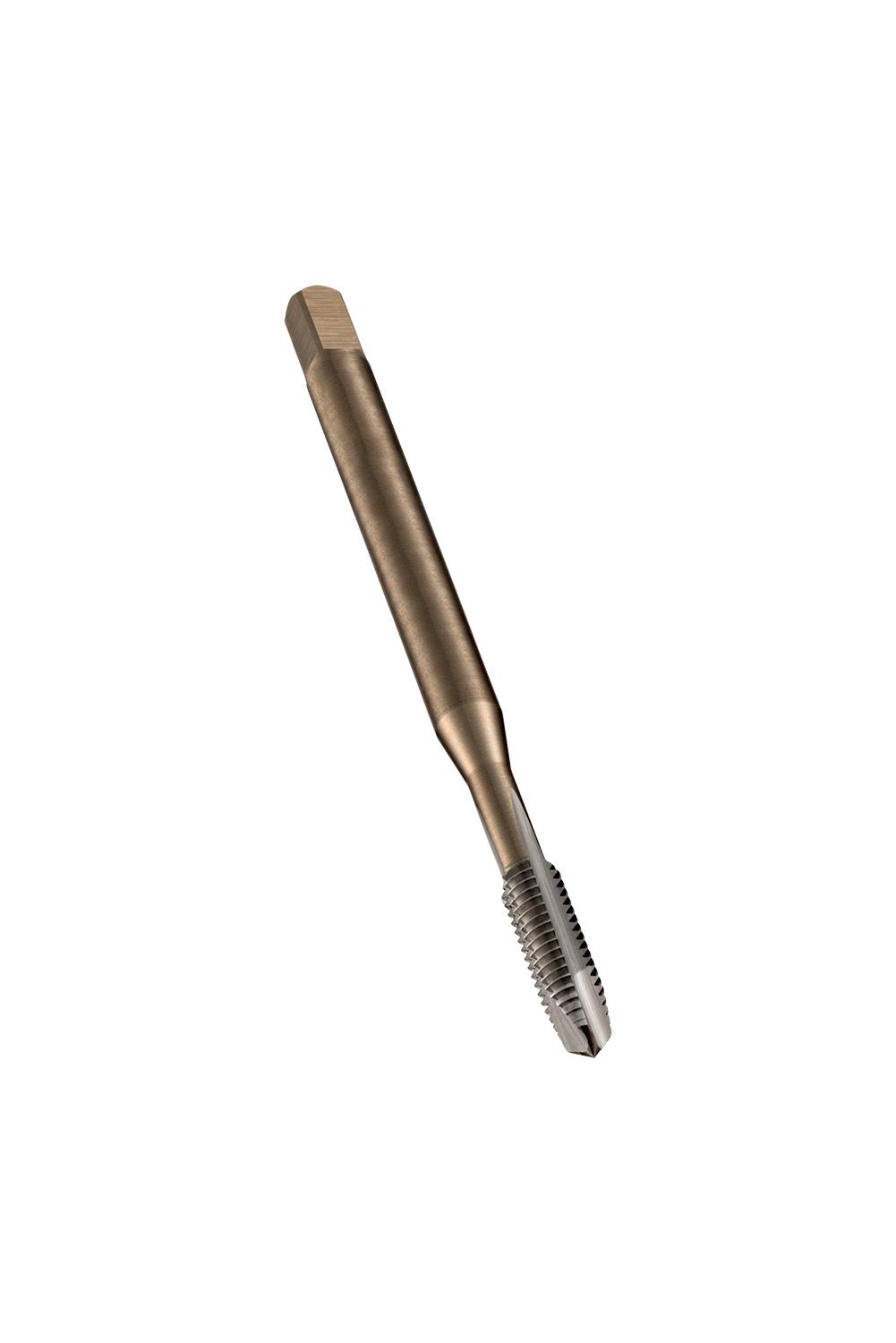

DORMER EP307/16 HSS / HSCo DIN Taps

Description: Value
Product name: EP307/16
Product number (SAP): 86017507
EAN number: 7320760138410
Thread diameter size (TDZ): 7/16
Thread diameter – millimeter (TD): 11.112 mm
Threads per inch (TPI): 20
Overall length – millimeter (OAL): 100 mm
Overall length – inch (OAL): 3.937 inch
Threading length – millimeter (THL): 20 mm
Threading length – inch (THL): 0.7874 inch
Connection diameter – inch (DCON MS): 0.315 inch
Connection diameter – millimeter (DCON MS): 8 mm
Flute count (NOF): 3
Tolerance limit: H5
Clamping width – inch (WSC): 0.2441 inch
Clamping width – millimeter (WSC): 6.2 mm
Clamping Length – inch (LCS): 0.3543 inch
Clamping Length – millimeter (LSC): 9 mm
Premachined hole diameter – inch (PHD): 0.3898 inch
Premachined hole diameter – millimeter (PHD): 9.9 mm
Gross weight – grams: 47.8
ISO: EP307/16
Ordering code ANSI: EP307/16
