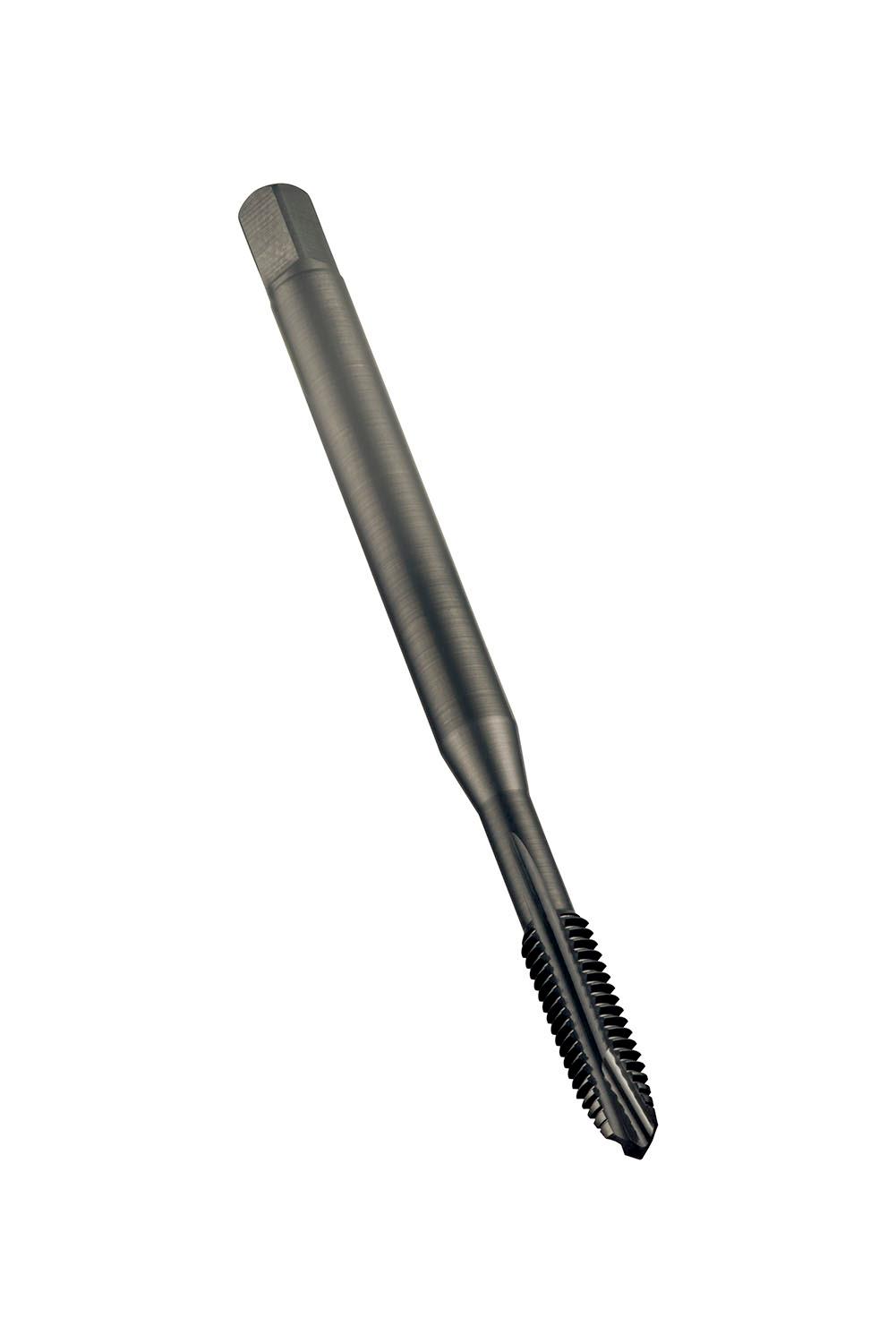

DORMER EP3110-32 HSS / HSCo DIN Taps

Description: Value
Product name: EP3110-32
Product number (SAP): 86017513
EAN number: 7320760138489
Thread diameter size (TDZ): 10
Thread diameter – millimeter (TD): 4.826 mm
Threads per inch (TPI): 32
Overall length – millimeter (OAL): 70 mm
Overall length – inch (OAL): 2.7559 inch
Threading length – millimeter (THL): 13 mm
Threading length – inch (THL): 0.5118 inch
Connection diameter – inch (DCON MS): 0.2362 inch
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
Tolerance limit: H3
Usable Length – inch (LU): 0.9843 inch
Usable Length – millimeter (LU): 25 mm
Clamping width – inch (WSC): 0.1929 inch
Clamping width – millimeter (WSC): 4.9 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.1614 inch
Premachined hole diameter – millimeter (PHD): 4.1 mm
Gross weight – grams: 14
ISO: EP3110-32
Ordering code ANSI: EP3110-32
