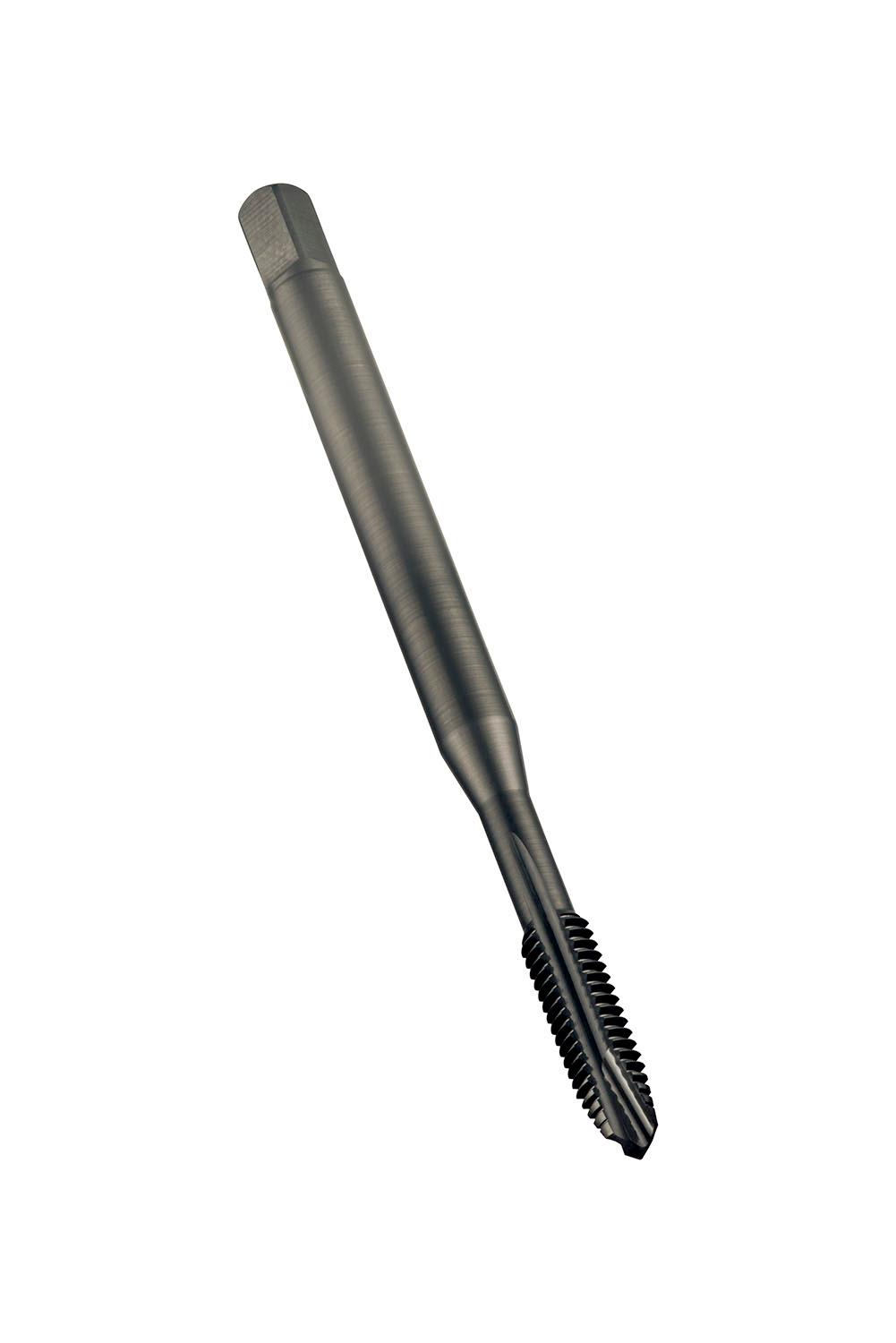

DORMER EP315/16 HSS / HSCo DIN Taps

Description: Value
Product name: EP315/16
Product number (SAP): 86017516
EAN number: 7320760138502
Thread diameter size (TDZ): 5/16
Thread diameter – millimeter (TD): 7.938 mm
Threads per inch (TPI): 24
Overall length – millimeter (OAL): 90 mm
Overall length – inch (OAL): 3.5433 inch
Threading length – millimeter (THL): 18 mm
Threading length – inch (THL): 0.7087 inch
Connection diameter – inch (DCON MS): 0.315 inch
Connection diameter – millimeter (DCON MS): 8 mm
Flute count (NOF): 3
Tolerance limit: H4
Usable Length – inch (LU): 1.378 inch
Usable Length – millimeter (LU): 35 mm
Clamping width – inch (WSC): 0.2441 inch
Clamping width – millimeter (WSC): 6.2 mm
Clamping Length – inch (LCS): 0.3543 inch
Clamping Length – millimeter (LSC): 9 mm
Premachined hole diameter – inch (PHD): 0.2717 inch
Premachined hole diameter – millimeter (PHD): 6.9 mm
Gross weight – grams: 34.4
ISO: EP315/16
Ordering code ANSI: EP315/16
