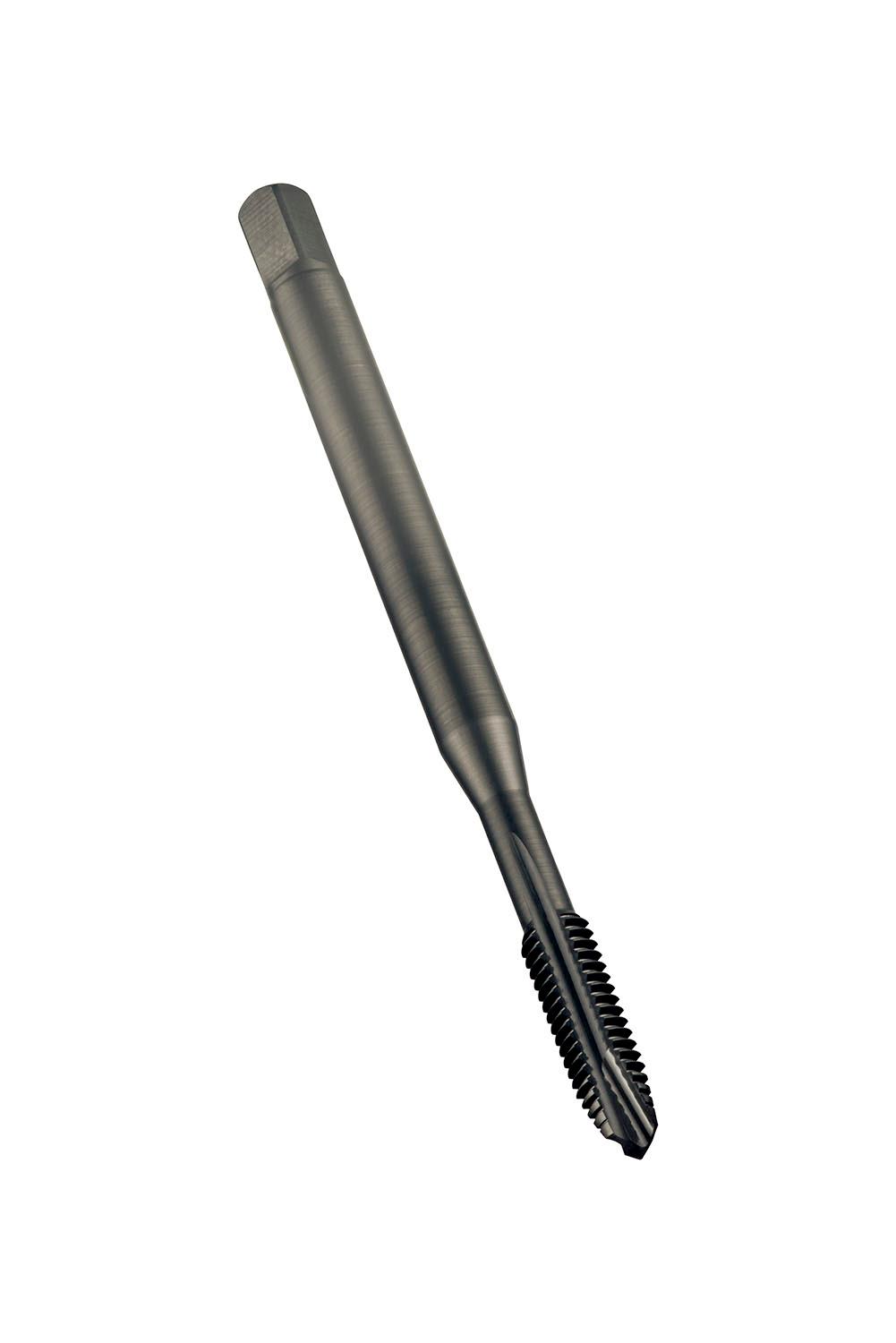

DORMER EP318-36 HSS / HSCo DIN Taps

Description: Value
Product name: EP318-36
Product number (SAP): 86017520
EAN number: 7320760138472
Thread diameter size (TDZ): 8
Thread diameter – millimeter (TD): 4.166 mm
Threads per inch (TPI): 36
Overall length – millimeter (OAL): 63 mm
Overall length – inch (OAL): 2.4803 inch
Threading length – millimeter (THL): 12 mm
Threading length – inch (THL): 0.4724 inch
Connection diameter – inch (DCON MS): 0.1772 inch
Connection diameter – millimeter (DCON MS): 4.5 mm
Flute count (NOF): 3
Tolerance limit: H3
Usable Length – inch (LU): 0.8268 inch
Usable Length – millimeter (LU): 21 mm
Clamping width – inch (WSC): 0.1339 inch
Clamping width – millimeter (WSC): 3.4 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.1378 inch
Premachined hole diameter – millimeter (PHD): 3.5 mm
Gross weight – grams: 8.9
ISO: EP318-36
Ordering code ANSI: EP318-36
