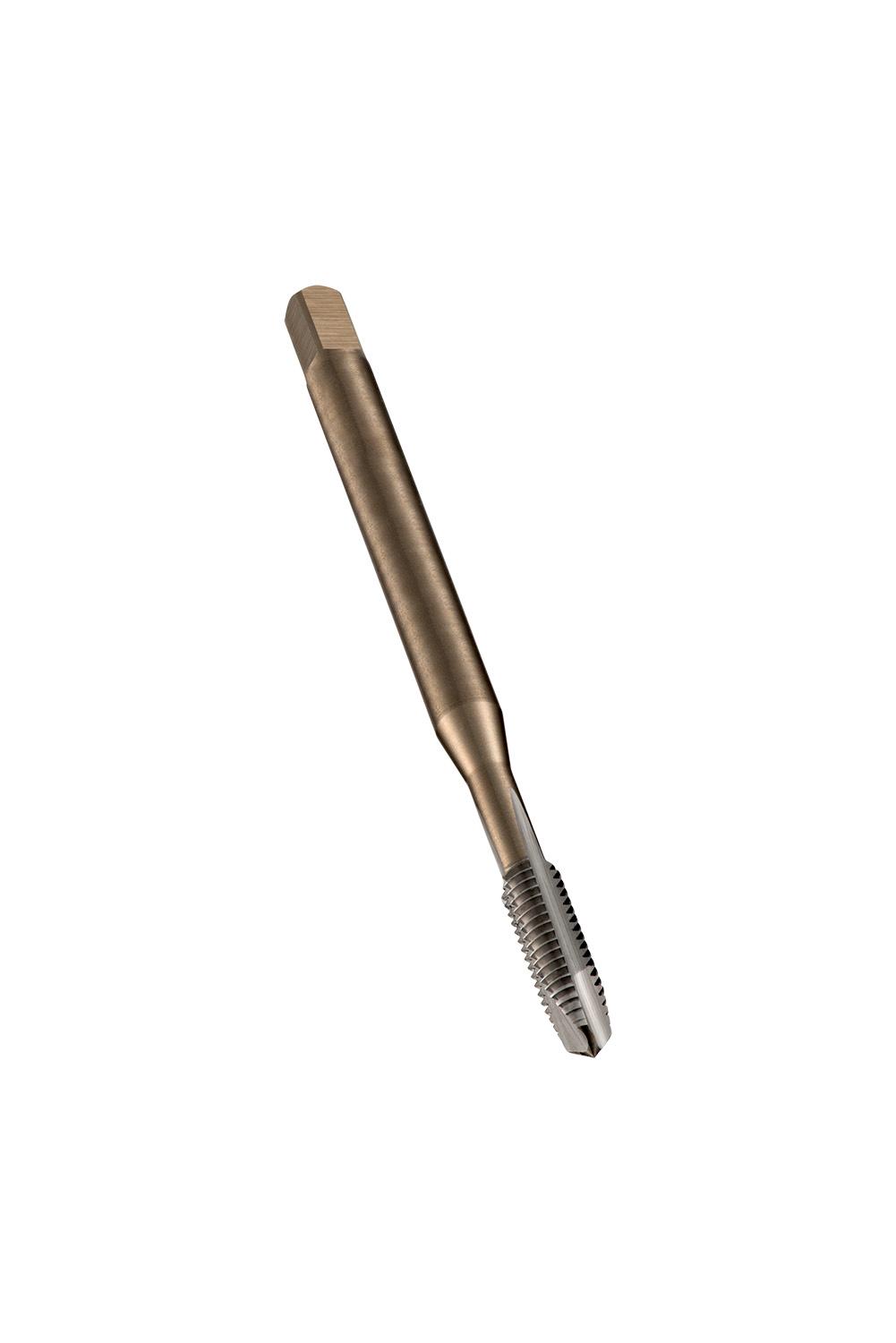

DORMER EP401 HSS / HSCo DIN Taps

Product Code: EP401

$726.25$660.23 Ex. GST

Product Code: EP401 SKU EP401 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for British Standard Pipe thread G 1″ with 11 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 25.0mm shank and 20.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Additional information

Weight 0.7051 kg
Dimensions
barcode
Additional Information

Description: Value
Product name: EP401
Product number (SAP): 86017521
EAN number: 7320760138656
Thread diameter size (TDZ): 1"
Thread diameter – millimeter (TD): 33.249 mm
Threads per inch (TPI): 11
Overall length – millimeter (OAL): 160 mm
Overall length – inch (OAL): 6.2992 inch
Threading length – millimeter (THL): 30 mm
Threading length – inch (THL): 1.1811 inch
Connection diameter – inch (DCON MS): 0.9843 inch
Connection diameter – millimeter (DCON MS): 25 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.7874 inch
Clamping width – millimeter (WSC): 20 mm
Clamping Length – inch (LCS): 0.9055 inch
Clamping Length – millimeter (LSC): 23 mm
Premachined hole diameter – inch (PHD): 1.2106 inch
Premachined hole diameter – millimeter (PHD): 30.75 mm
Gross weight – grams: 637.4
ISO: EP401
Ordering code ANSI: EP401

Brand

DORMER
