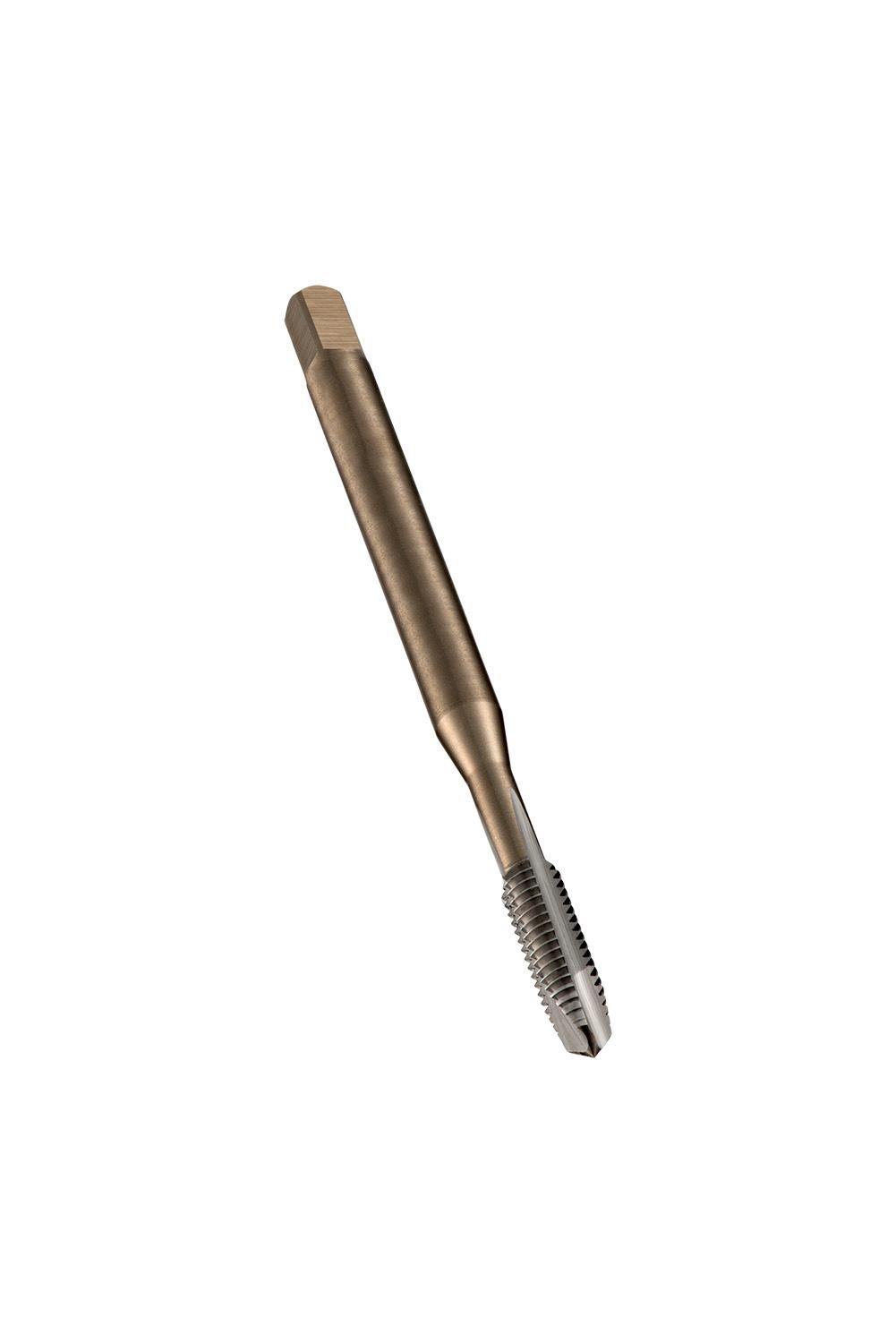

DORMER EP403/4 HSS / HSCo DIN Taps

Description: Value
Product name: EP403/4
Product number (SAP): 86017525
EAN number: 7320760138632
Thread diameter size (TDZ): 3/4
Thread diameter – millimeter (TD): 26.441 mm
Threads per inch (TPI): 14
Overall length – millimeter (OAL): 140 mm
Overall length – inch (OAL): 5.5118 inch
Threading length – millimeter (THL): 28 mm
Threading length – inch (THL): 1.1024 inch
Connection diameter – inch (DCON MS): 0.7874 inch
Connection diameter – millimeter (DCON MS): 20 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.6299 inch
Clamping width – millimeter (WSC): 16 mm
Clamping Length – inch (LCS): 0.748 inch
Clamping Length – millimeter (LSC): 19 mm
Premachined hole diameter – inch (PHD): 0.9646 inch
Premachined hole diameter – millimeter (PHD): 24.5 mm
Gross weight – grams: 363.6
ISO: EP403/4
Ordering code ANSI: EP403/4
