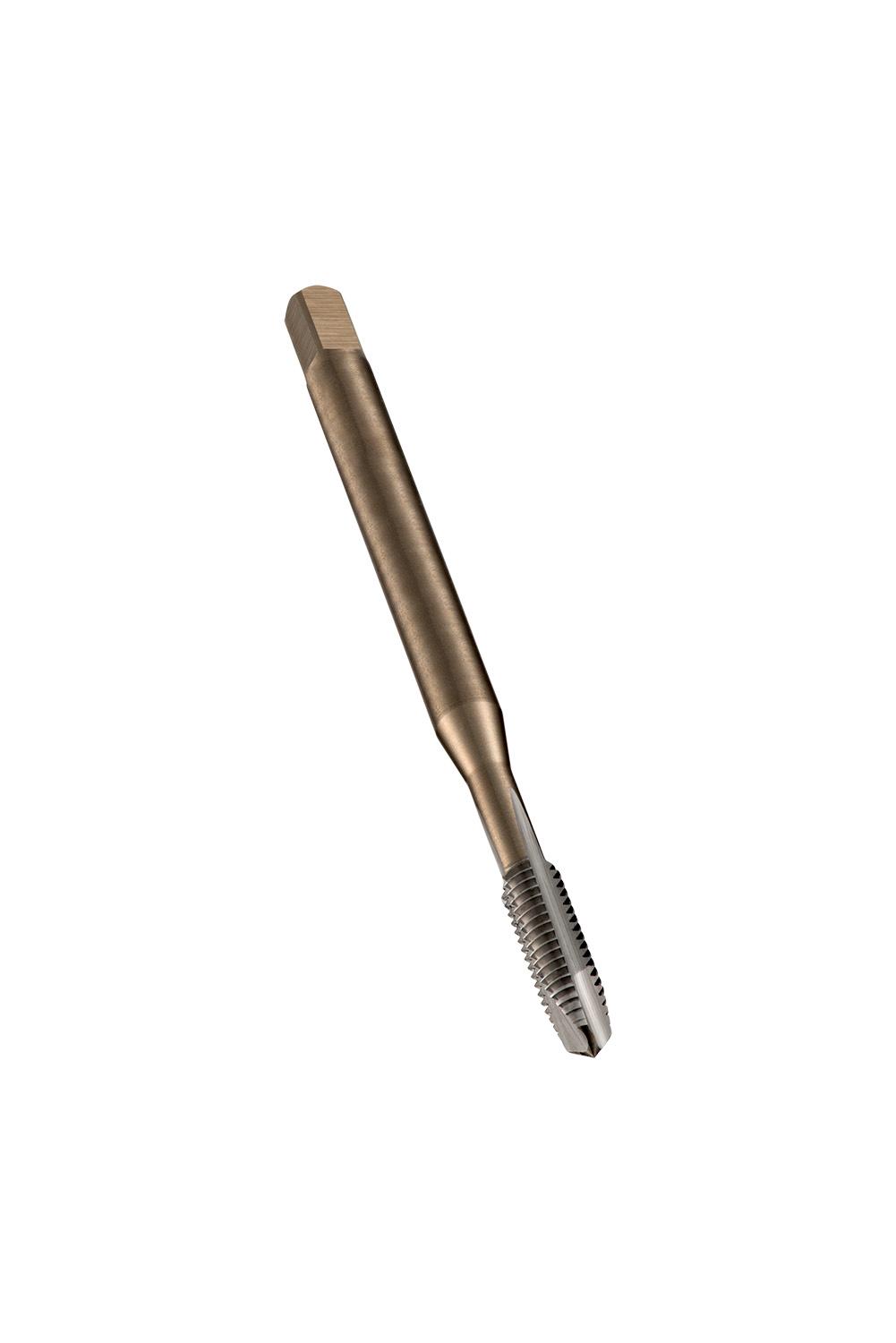

DORMER EP403/8 HSS / HSCo DIN Taps

Description

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for British Standard Pipe thread G 3/8″ with 19 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 12.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Additional information

Weight	0.1309 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EP403/8 Product number (SAP): 86017526 EAN number: 7320760138601 Thread diameter size (TDZ): 3/8 Thread diameter – millimeter (TD): 16.662 mm Threads per inch (TPI): 19 Overall length – millimeter (OAL): 100 mm Overall length – inch (OAL): 3.937 inch Threading length – millimeter (THL): 21 mm Threading length – inch (THL): 0.8268 inch Connection diameter – inch (DCON MS): 0.4724 inch Connection diameter – millimeter (DCON MS): 12 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.3543 inch Clamping width – millimeter (WSC): 9 mm Clamping Length – inch (LCS): 0.4724 inch Clamping Length – millimeter (LSC): 12 mm Premachined hole diameter – inch (PHD): 0.6004 inch Premachined hole diameter – millimeter (PHD): 15.25 mm Gross weight – grams: 95.2 ISO: EP403/8 Ordering code ANSI: EP403/8
