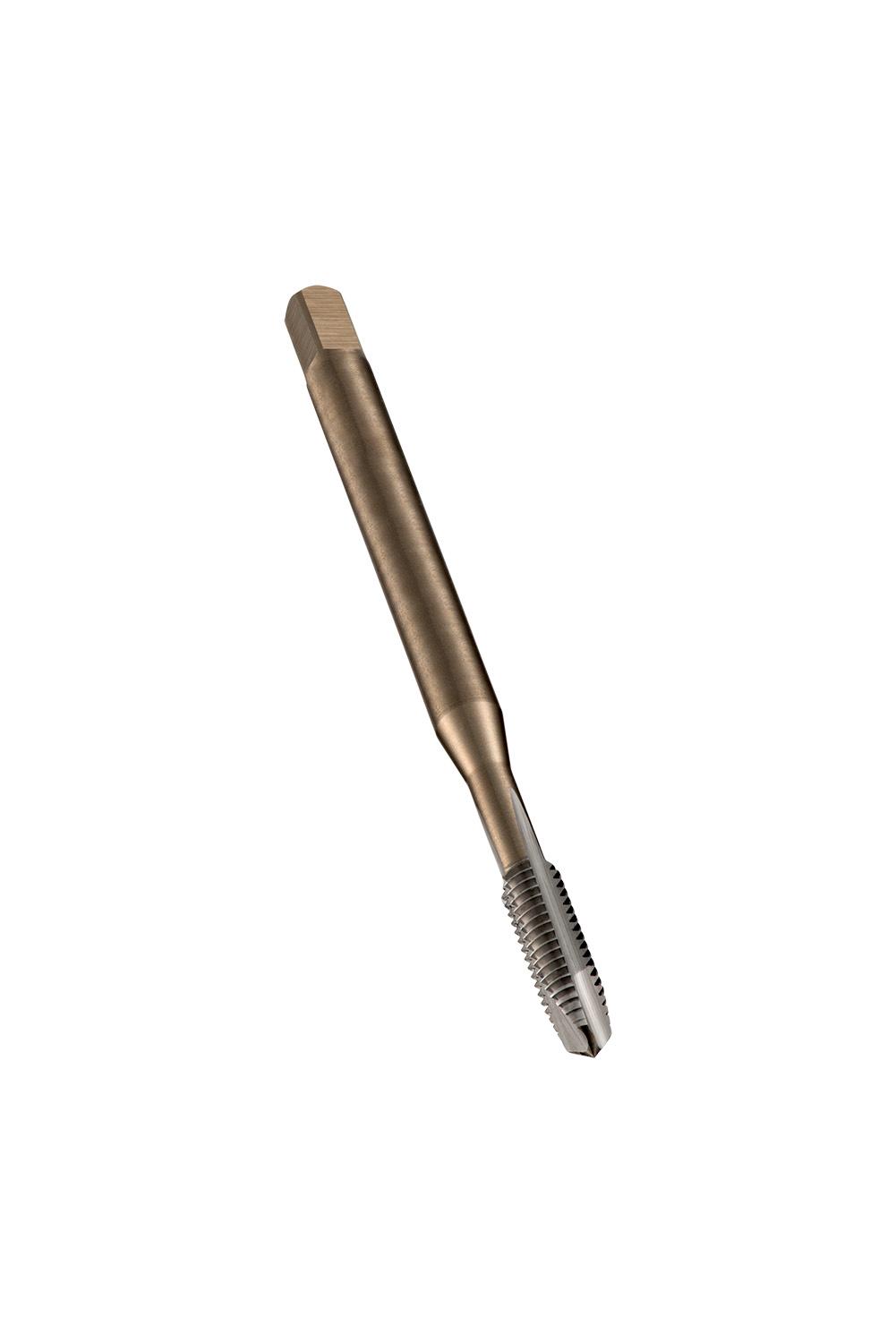

DORMER EP405/8 HSS / HSCo DIN Taps

Description: Value
Product name: EP405/8
Product number (SAP): 86017527
EAN number: 7320760138625
Thread diameter size (TDZ): 5/8
Thread diameter – millimeter (TD): 22.911 mm
Threads per inch (TPI): 14
Overall length – millimeter (OAL): 125 mm
Overall length – inch (OAL): 4.9213 inch
Threading length – millimeter (THL): 24 mm
Threading length – inch (THL): 0.9449 inch
Connection diameter – inch (DCON MS): 0.7087 inch
Connection diameter – millimeter (DCON MS): 18 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.5709 inch
Clamping width – millimeter (WSC): 14.5 mm
Clamping Length – inch (LCS): 0.6693 inch
Clamping Length – millimeter (LSC): 17 mm
Premachined hole diameter – inch (PHD): 0.8268 inch
Premachined hole diameter – millimeter (PHD): 21 mm
Gross weight – grams: 256
ISO: EP405/8
Ordering code ANSI: EP405/8
