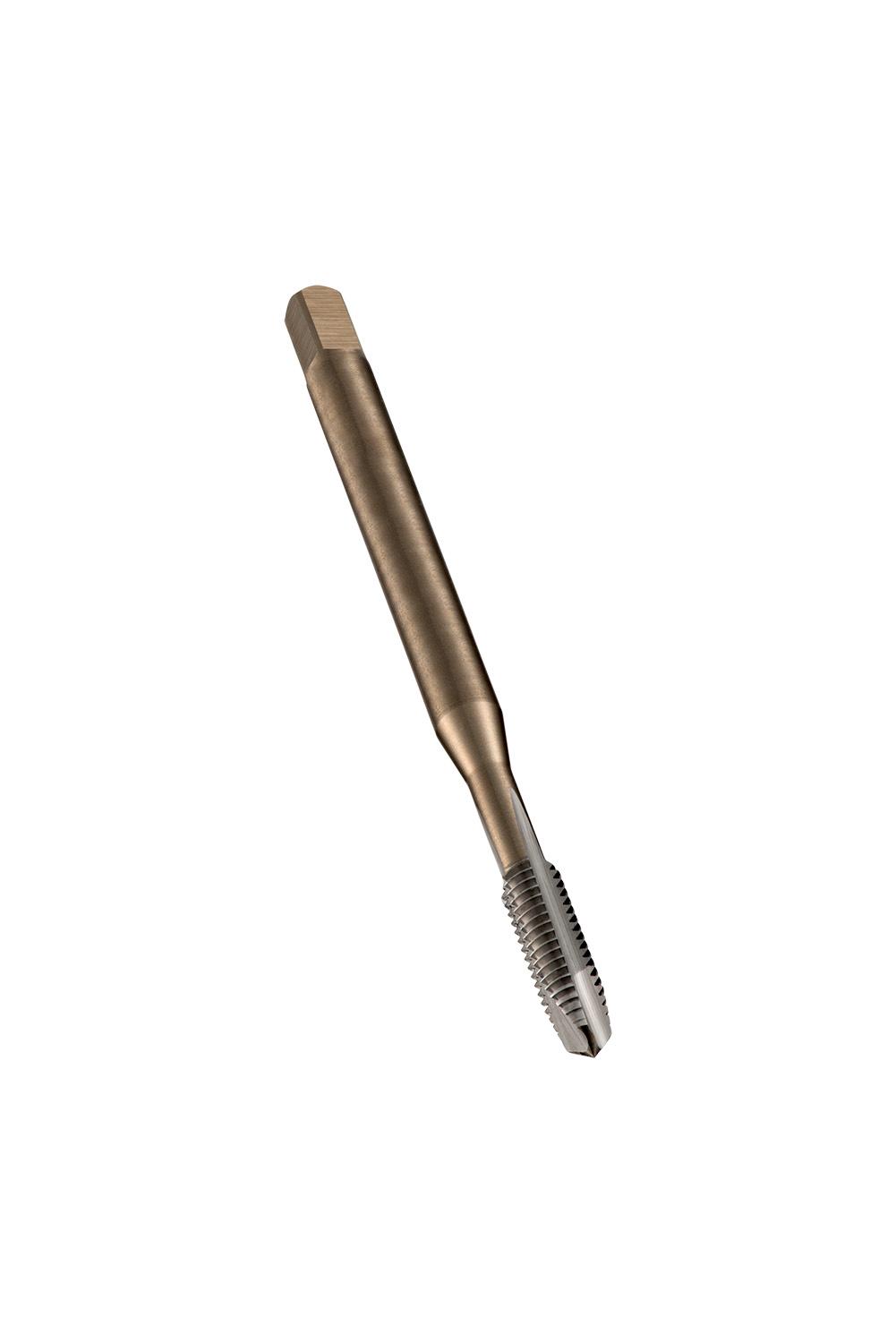

DORMER EP407/8 HSS / HSCo DIN Taps

Description: Value
Product name: EP407/8
Product number (SAP): 86017528
EAN number: 7320760138649
Thread diameter size (TDZ): 7/8
Thread diameter – millimeter (TD): 30.201 mm
Threads per inch (TPI): 14
Overall length – millimeter (OAL): 150 mm
Overall length – inch (OAL): 5.9055 inch
Threading length – millimeter (THL): 28 mm
Threading length – inch (THL): 1.1024 inch
Connection diameter – inch (DCON MS): 0.8661 inch
Connection diameter – millimeter (DCON MS): 22 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.7087 inch
Clamping width – millimeter (WSC): 18 mm
Clamping Length – inch (LCS): 0.8268 inch
Clamping Length – millimeter (LSC): 21 mm
Premachined hole diameter – inch (PHD): 1.1122 inch
Premachined hole diameter – millimeter (PHD): 28.25 mm
Gross weight – grams: 481.6
ISO: EP407/8
Ordering code ANSI: EP407/8
