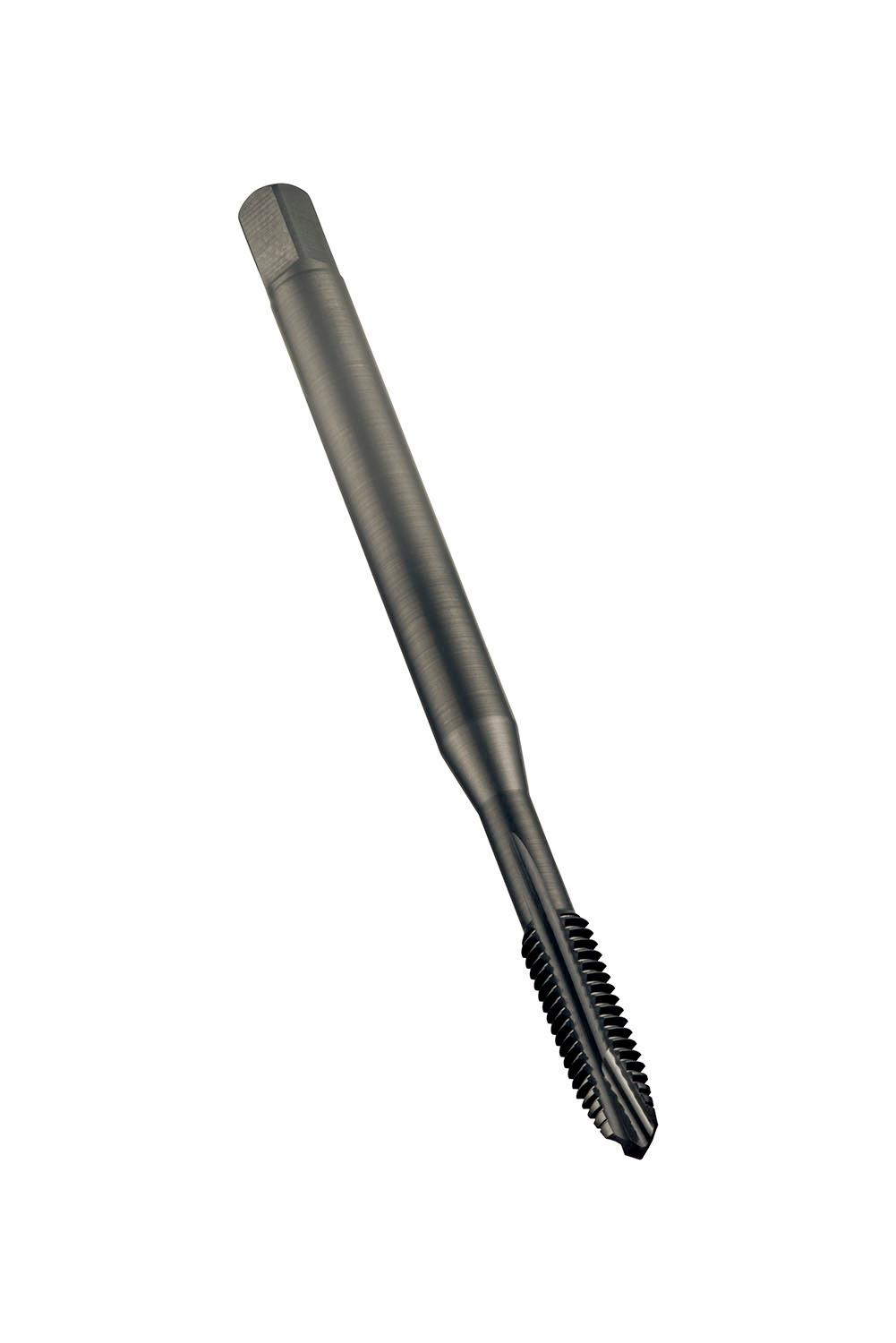

DORMER EP411 HSS / HSCo DIN Taps

Description: Value
Product name: EP411
Product number (SAP): 86017529
EAN number: 7320760149652
Thread diameter size (TDZ): 1"
Thread diameter – millimeter (TD): 33.249 mm
Threads per inch (TPI): 11
Overall length – millimeter (OAL): 160 mm
Overall length – inch (OAL): 6.2992 inch
Threading length – millimeter (THL): 30 mm
Threading length – inch (THL): 1.1811 inch
Connection diameter – inch (DCON MS): 0.9843 inch
Connection diameter – millimeter (DCON MS): 25 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.7874 inch
Clamping width – millimeter (WSC): 20 mm
Clamping Length – inch (LCS): 0.9055 inch
Clamping Length – millimeter (LSC): 23 mm
Premachined hole diameter – inch (PHD): 1.2106 inch
Premachined hole diameter – millimeter (PHD): 30.75 mm
Gross weight – grams: 635.8
ISO: EP411
Ordering code ANSI: EP411
