DORMER EX00TINM16 HSS / HSCo DIN Taps

Description

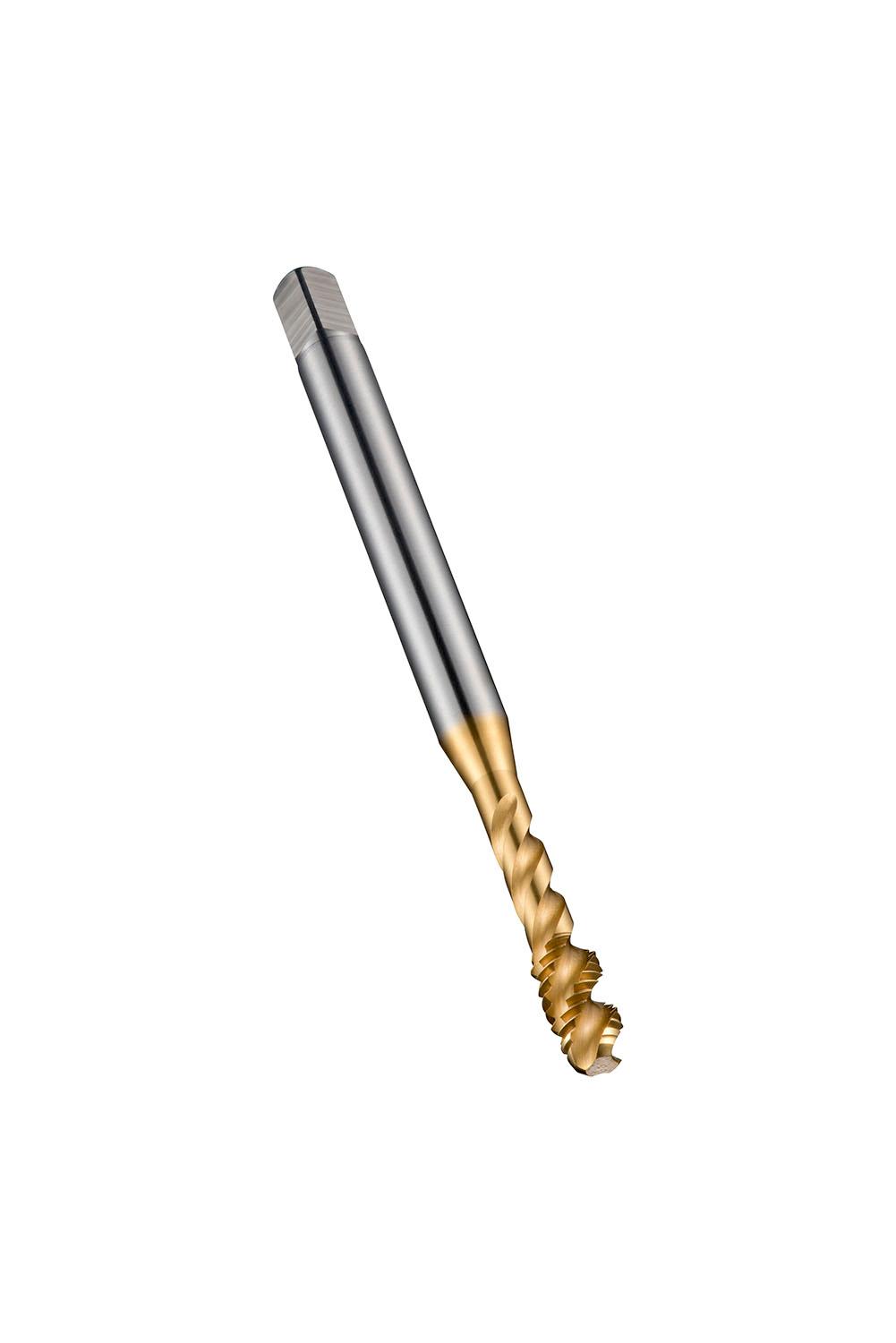

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 12.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with TiN coating and 45° helix angle for 2.5xD blind hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and cast aluminium

Additional information

Weight	0.1881 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EX00TINM16 Product number (SAP): 86017580 EAN number: 7320760662441 Thread diameter size (TDZ): 16 Thread pitch – millimeter (TP): 2 mm Overall length – millimeter (OAL): 110 mm Overall length – inch (OAL): 4.3307 inch Threading length – millimeter (THL): 20 mm Threading length – inch (THL): 0.7874 inch Connection diameter – inch (DCON MS): 0.4724 inch Connection diameter – millimeter (DCON MS): 12 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.3543 inch Clamping width – millimeter (WSC): 9 mm Clamping Length – inch (LCS): 0.4724 inch Clamping Length – millimeter (LSC): 12 mm Premachined hole diameter – inch (PHD): 0.5512 inch Premachined hole diameter – millimeter (PHD): 14 mm Gross weight – grams: 91 ISO: EX00TINM16 Ordering code ANSI: EX00TINM16

Need Technical Advice?

Description

Additional information

Brand

DORMER
