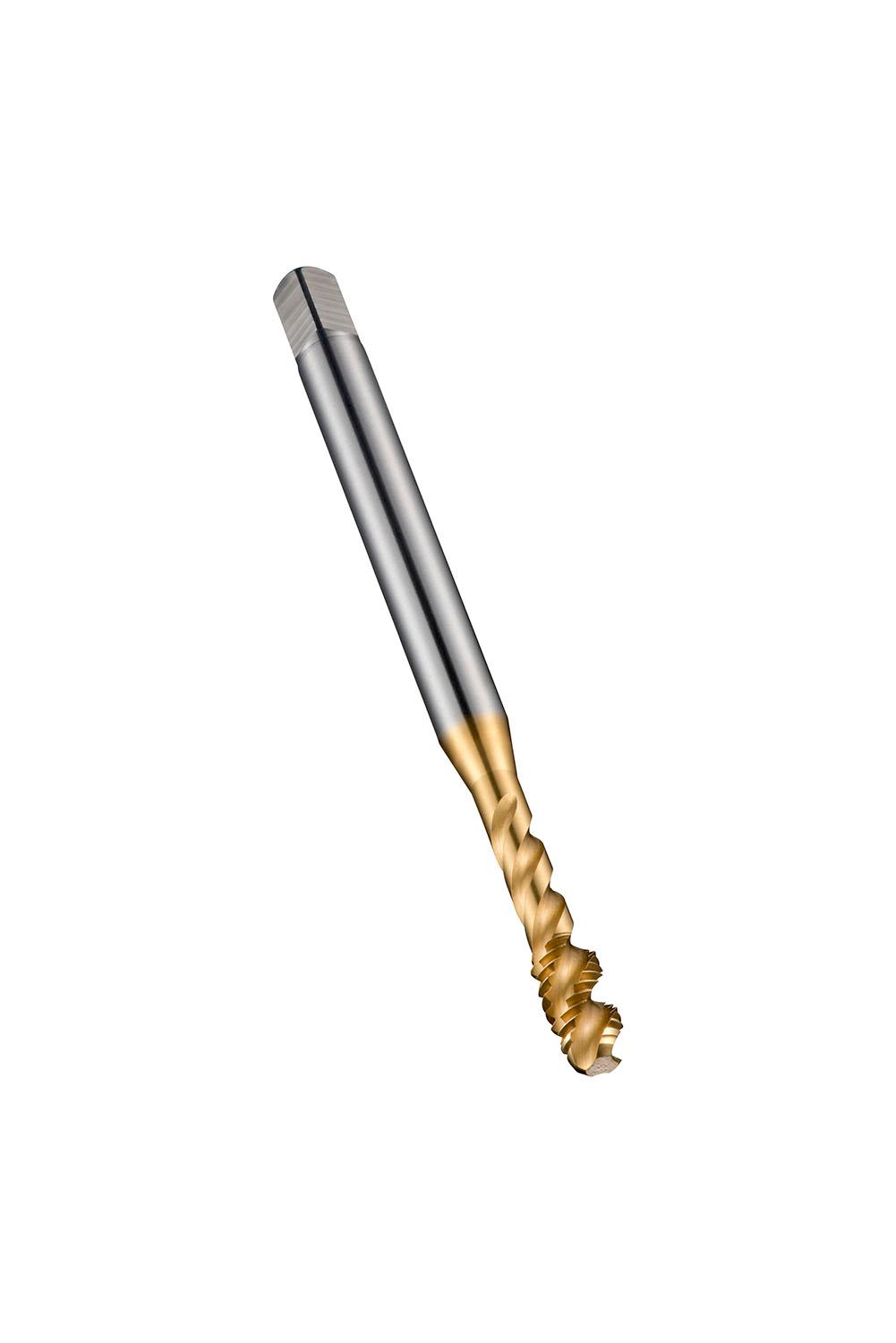

DORMER EX00TINM18 HSS / HSCo DIN Taps

Description

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M18 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 14.0mm shank and 11.0mm square drive, powder metallurgical HSS-E with TiN coating and 45° helix angle for 2.5xD blind hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and cast aluminium

Additional information

Weight	0.2717 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EX00TINM18 Product number (SAP): 86017581 EAN number: 7320760662458 Thread diameter size (TDZ): 18 Thread pitch – millimeter (TP): 2.5 mm Overall length – millimeter (OAL): 125 mm Overall length – inch (OAL): 4.9213 inch Threading length – millimeter (THL): 25 mm Threading length – inch (THL): 0.9843 inch Connection diameter – inch (DCON MS): 0.5512 inch Connection diameter – millimeter (DCON MS): 14 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.4331 inch Clamping width – millimeter (WSC): 11 mm Clamping Length – inch (LCS): 0.5512 inch Clamping Length – millimeter (LSC): 14 mm Premachined hole diameter – inch (PHD): 0.6102 inch Premachined hole diameter – millimeter (PHD): 15.5 mm Gross weight – grams: 135.2 ISO: EX00TINM18 Ordering code ANSI: EX00TINM18
