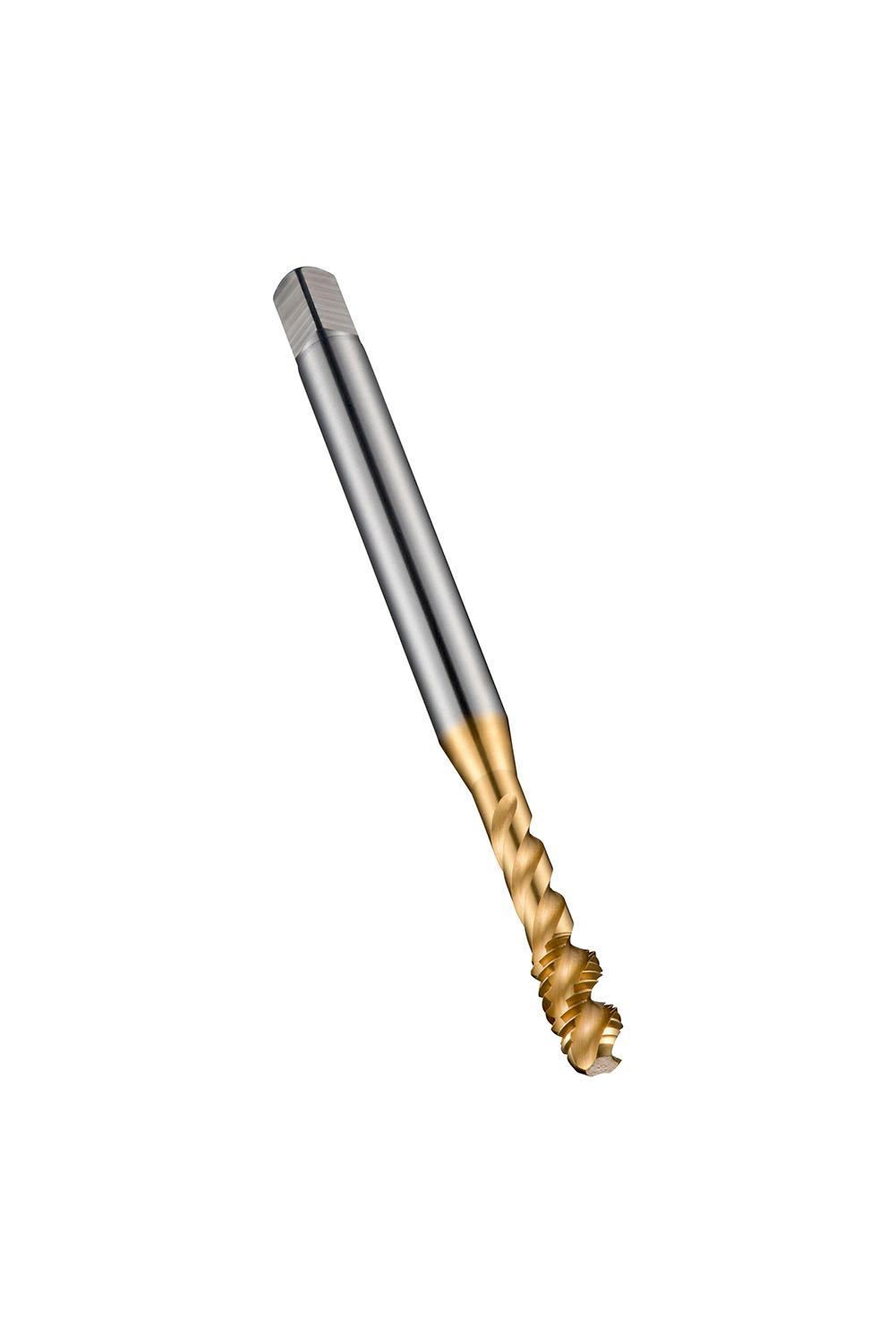

DORMER EX00TINM22 HSS / HSCo DIN Taps

Description

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with TiN coating and 45° helix angle for 2.5xD blind hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and cast aluminium

Additional information

Weight	0.4059 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EX00TINM22 Product number (SAP): 86017583 EAN number: 7320760662472 Thread diameter size (TDZ): 22 Thread pitch – millimeter (TP): 2.5 mm Overall length – millimeter (OAL): 140 mm Overall length – inch (OAL): 5.5118 inch Threading length – millimeter (THL): 25 mm Threading length – inch (THL): 0.9843 inch Connection diameter – inch (DCON MS): 0.7087 inch Connection diameter – millimeter (DCON MS): 18 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.5709 inch Clamping width – millimeter (WSC): 14.5 mm Clamping Length – inch (LCS): 0.6693 inch Clamping Length – millimeter (LSC): 17 mm Premachined hole diameter – inch (PHD): 0.7677 inch Premachined hole diameter – millimeter (PHD): 19.5 mm Gross weight – grams: 240.5 ISO: EX00TINM22 Ordering code ANSI: EX00TINM22
