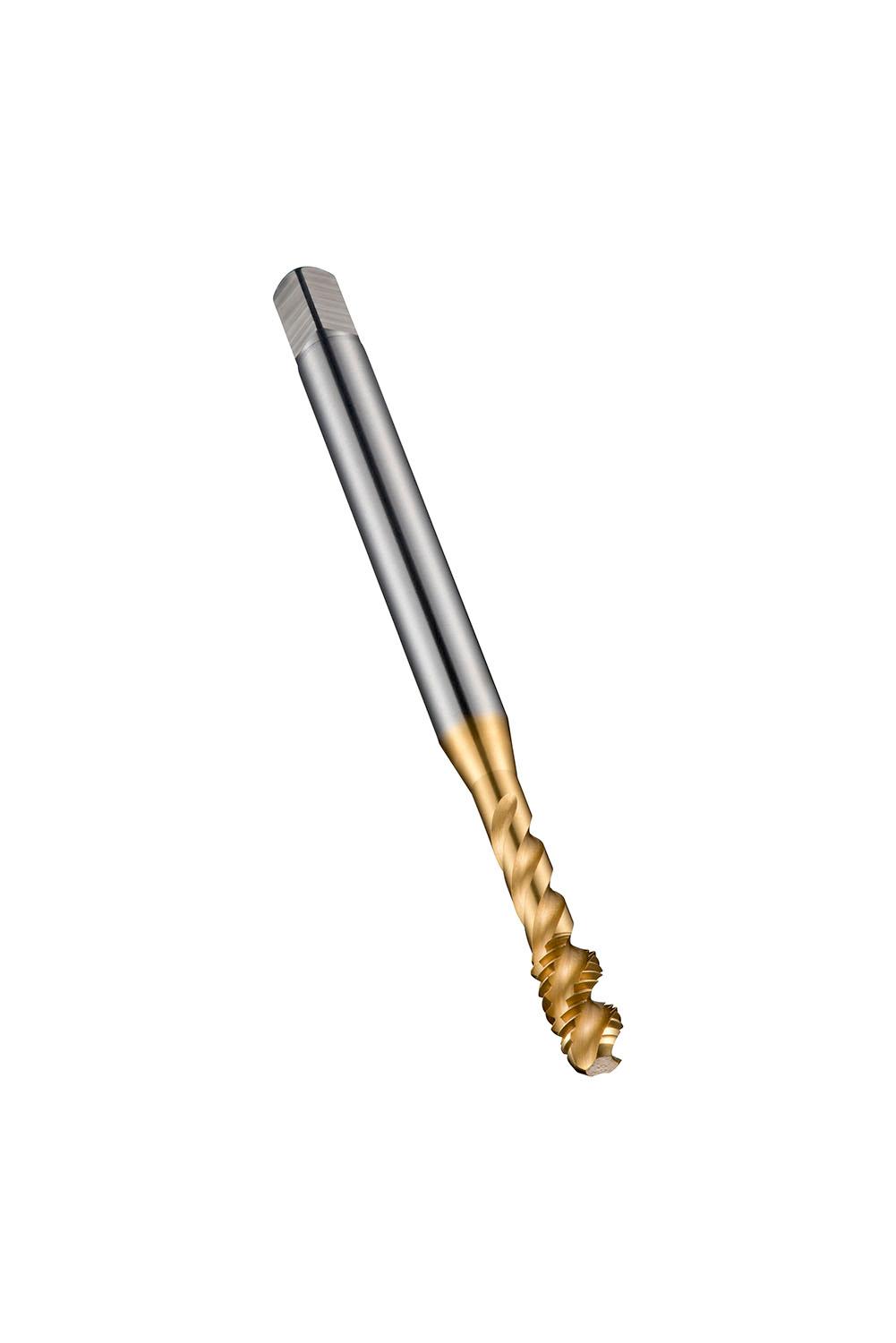

DORMER EX00TINM27 HSS / HSCo DIN Taps

Description

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M27 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 20.0mm shank and 16.0mm square drive, powder metallurgical HSS-E with TiN coating and 45° helix angle for 2.5xD blind hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and cast aluminium

Additional information

Weight	0.5434 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EX00TINM27 Product number (SAP): 86017585 EAN number: 7320760662496 Thread diameter size (TDZ): 27 Thread pitch – millimeter (TP): 3 mm Overall length – millimeter (OAL): 160 mm Overall length – inch (OAL): 6.2992 inch Threading length – millimeter (THL): 30 mm Threading length – inch (THL): 1.1811 inch Connection diameter – inch (DCON MS): 0.7874 inch Connection diameter – millimeter (DCON MS): 20 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.6299 inch Clamping width – millimeter (WSC): 16 mm Clamping Length – inch (LCS): 0.748 inch Clamping Length – millimeter (LSC): 19 mm Premachined hole diameter – inch (PHD): 0.9449 inch Premachined hole diameter – millimeter (PHD): 24 mm Gross weight – grams: 365 ISO: EX00TINM27 Ordering code ANSI: EX00TINM27

Need Technical Advice?

Description

Additional information

Brand

DORMER
