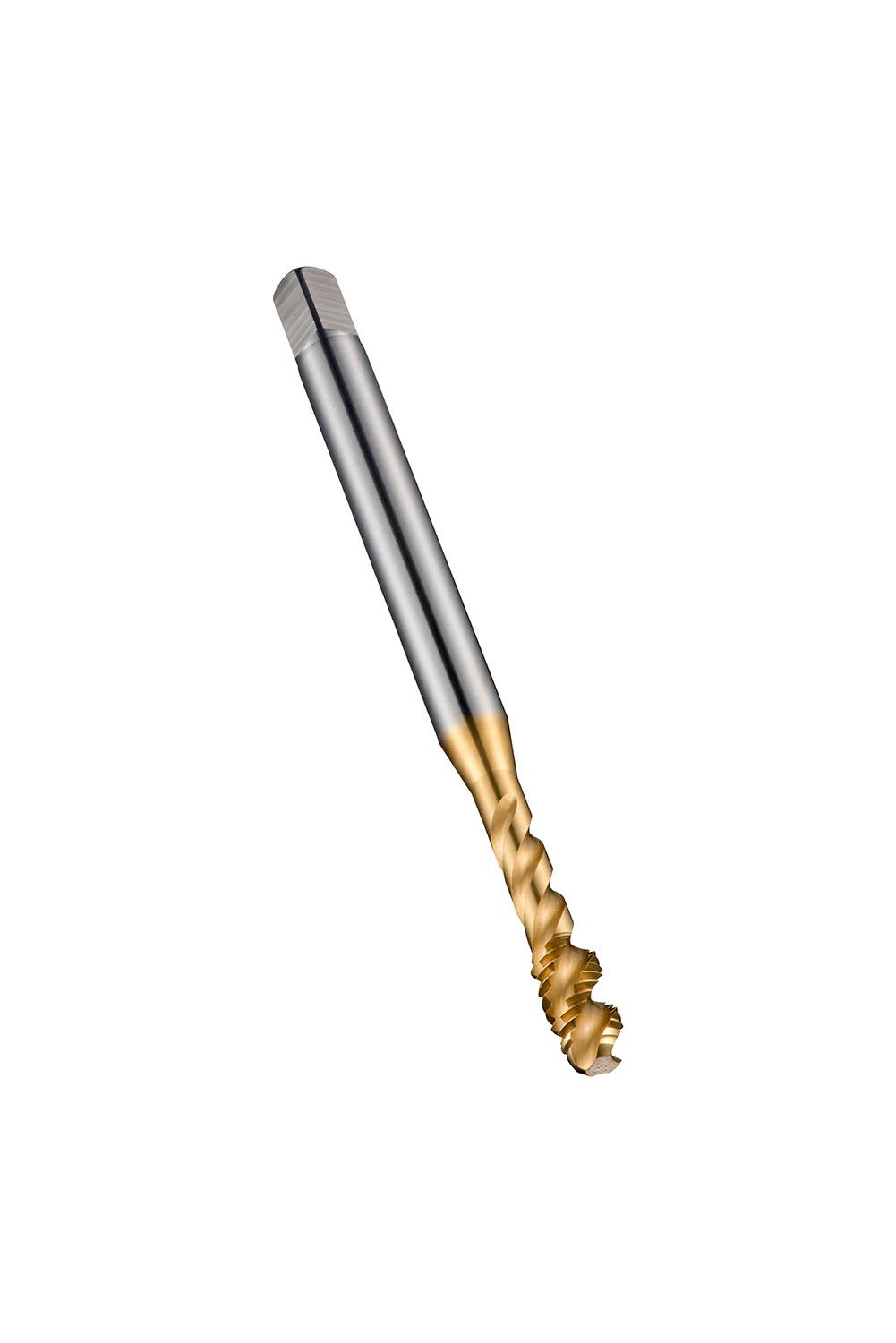

DORMER EX00TINM30 HSS / HSCo DIN Taps

Description

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M30 with 3.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 22.0mm shank and 18.0mm square drive, powder metallurgical HSS-E with TiN coating and 45° helix angle for 2.5xD blind hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and cast aluminium

Additional information

Weight	0.6424 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EX00TINM30 Product number (SAP): 86017587 EAN number: 7320760662502 Thread diameter size (TDZ): 30 Thread pitch – millimeter (TP): 3.5 mm Overall length – millimeter (OAL): 180 mm Overall length – inch (OAL): 7.0866 inch Threading length – millimeter (THL): 36 mm Threading length – inch (THL): 1.4173 inch Connection diameter – inch (DCON MS): 0.8661 inch Connection diameter – millimeter (DCON MS): 22 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.7087 inch Clamping width – millimeter (WSC): 18 mm Clamping Length – inch (LCS): 0.8268 inch Clamping Length – millimeter (LSC): 21 mm Premachined hole diameter – inch (PHD): 1.0433 inch Premachined hole diameter – millimeter (PHD): 26.5 mm Gross weight – grams: 488.5 ISO: EX00TINM30 Ordering code ANSI: EX00TINM30
