DORMER EX00TINM5 HSS / HSCo DIN Taps

Description

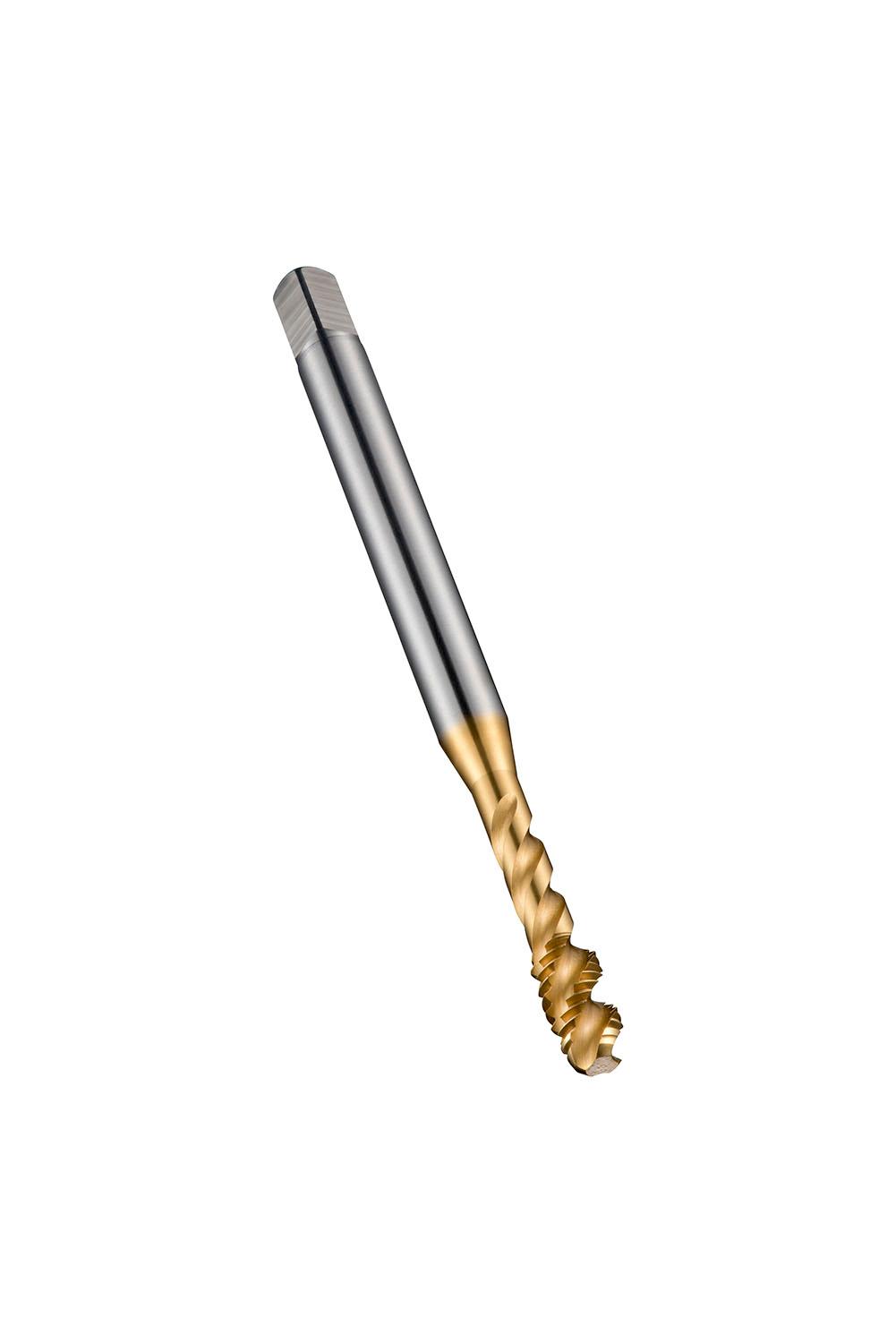

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with TiN coating and 45° helix angle for 2.5xD blind hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and cast aluminium

Additional information

Weight	0.0732 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EX00TINM5 Product number (SAP): 86017589 EAN number: 7320760662380 Thread diameter size (TDZ): 5 Thread pitch – millimeter (TP): 0.8 mm Overall length – millimeter (OAL): 70 mm Overall length – inch (OAL): 2.7559 inch Threading length – millimeter (THL): 8 mm Threading length – inch (THL): 0.315 inch Connection diameter – inch (DCON MS): 0.2362 inch Connection diameter – millimeter (DCON MS): 6 mm Flute count (NOF): 3 Usable Length – inch (LU): 0.9843 inch Usable Length – millimeter (LU): 25 mm Clamping width – inch (WSC): 0.1929 inch Clamping width – millimeter (WSC): 4.9 mm Clamping Length – inch (LCS): 0.315 inch Clamping Length – millimeter (LSC): 8 mm Premachined hole diameter – inch (PHD): 0.1654 inch Premachined hole diameter – millimeter (PHD): 4.2 mm Gross weight – grams: 14.4 ISO: EX00TINM5 Ordering code ANSI: EX00TINM5

Need Technical Advice?

Description

Additional information

Brand

DORMER
