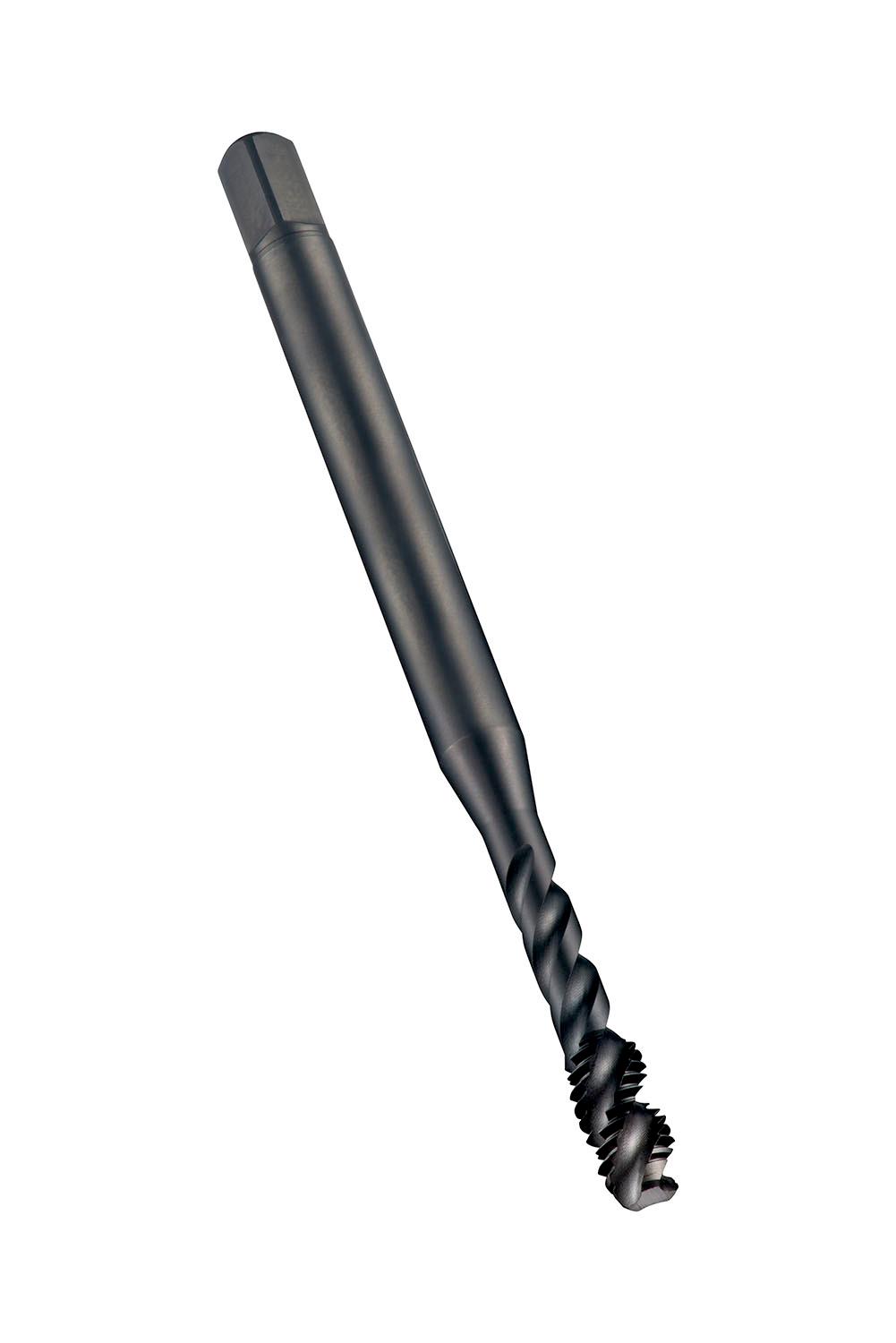

DORMER EX01M42 HSS / HSCo DIN Taps

Description: Value
Product name: EX01M42
Product number (SAP): 86017611
EAN number: 7320760137185
Thread diameter size (TDZ): 42
Thread pitch – millimeter (TP): 4.5 mm
Overall length – millimeter (OAL): 200 mm
Overall length – inch (OAL): 7.874 inch
Threading length – millimeter (THL): 45 mm
Threading length – inch (THL): 1.7717 inch
Connection diameter – inch (DCON MS): 1.2598 inch
Connection diameter – millimeter (DCON MS): 32 mm
Flute count (NOF): 4
Tolerance limit: D10
Clamping width – inch (WSC): 0.9449 inch
Clamping width – millimeter (WSC): 24 mm
Clamping Length – inch (LCS): 1.063 inch
Clamping Length – millimeter (LSC): 27 mm
Premachined hole diameter – inch (PHD): 1.4764 inch
Premachined hole diameter – millimeter (PHD): 37.5 mm
Gross weight – grams: 1147.2
ISO: EX01M42
Ordering code ANSI: EX01M42
