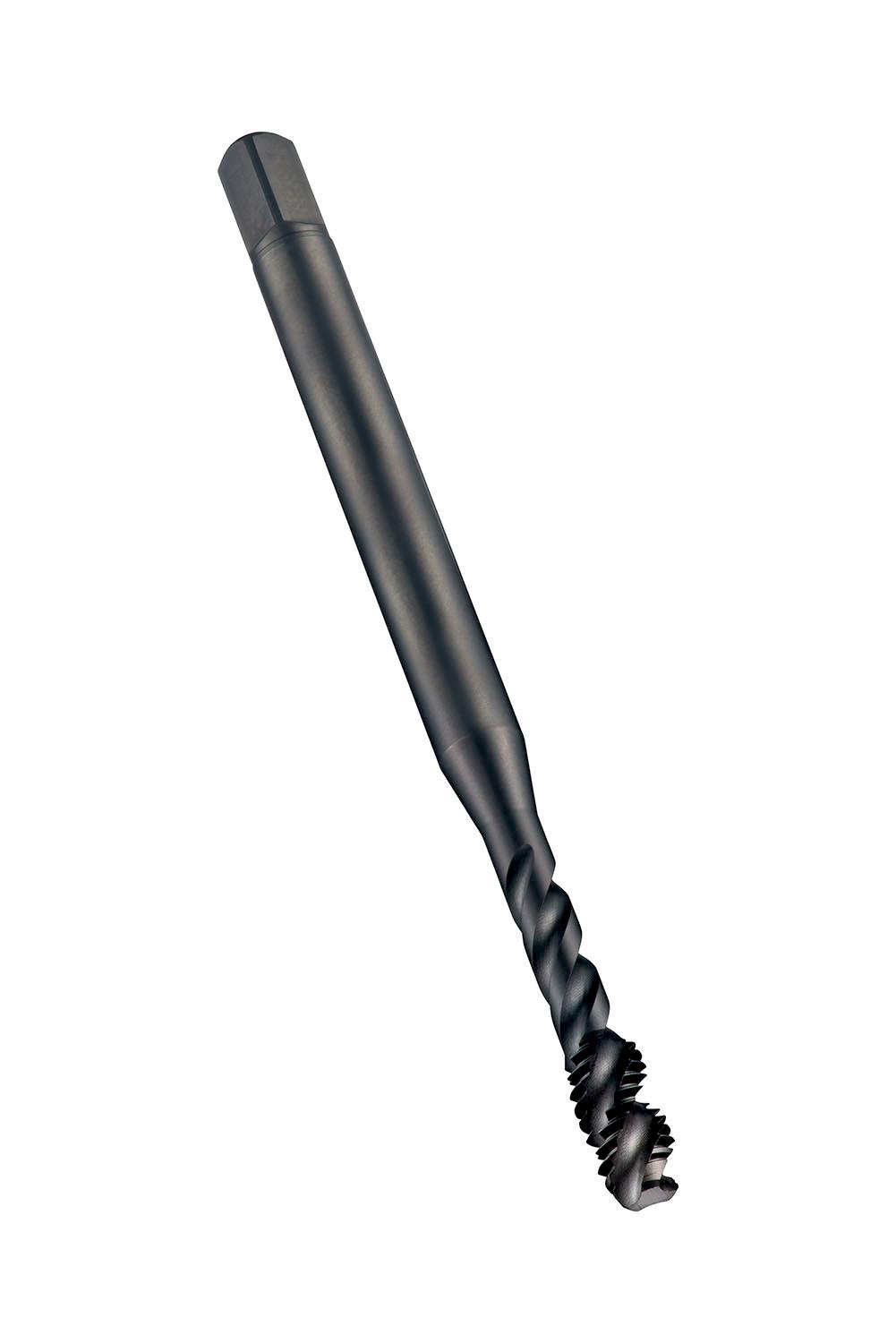

DORMER EX01M56 HSS / HSCo DIN Taps

Description: Value
Product name: EX01M56
Product number (SAP): 86017615
EAN number: 7320760137215
Thread diameter size (TDZ): 56
Thread pitch – millimeter (TP): 5.5 mm
Overall length – millimeter (OAL): 250 mm
Overall length – inch (OAL): 9.8425 inch
Threading length – millimeter (THL): 55 mm
Threading length – inch (THL): 2.1654 inch
Connection diameter – inch (DCON MS): 1.5748 inch
Connection diameter – millimeter (DCON MS): 40 mm
Flute count (NOF): 5
Tolerance limit: D11
Clamping width – inch (WSC): 1.2598 inch
Clamping width – millimeter (WSC): 32 mm
Clamping Length – inch (LCS): 1.378 inch
Clamping Length – millimeter (LSC): 35 mm
Premachined hole diameter – inch (PHD): 1.9882 inch
Premachined hole diameter – millimeter (PHD): 50.5 mm
Gross weight – grams: 2380
ISO: EX01M56
Ordering code ANSI: EX01M56
