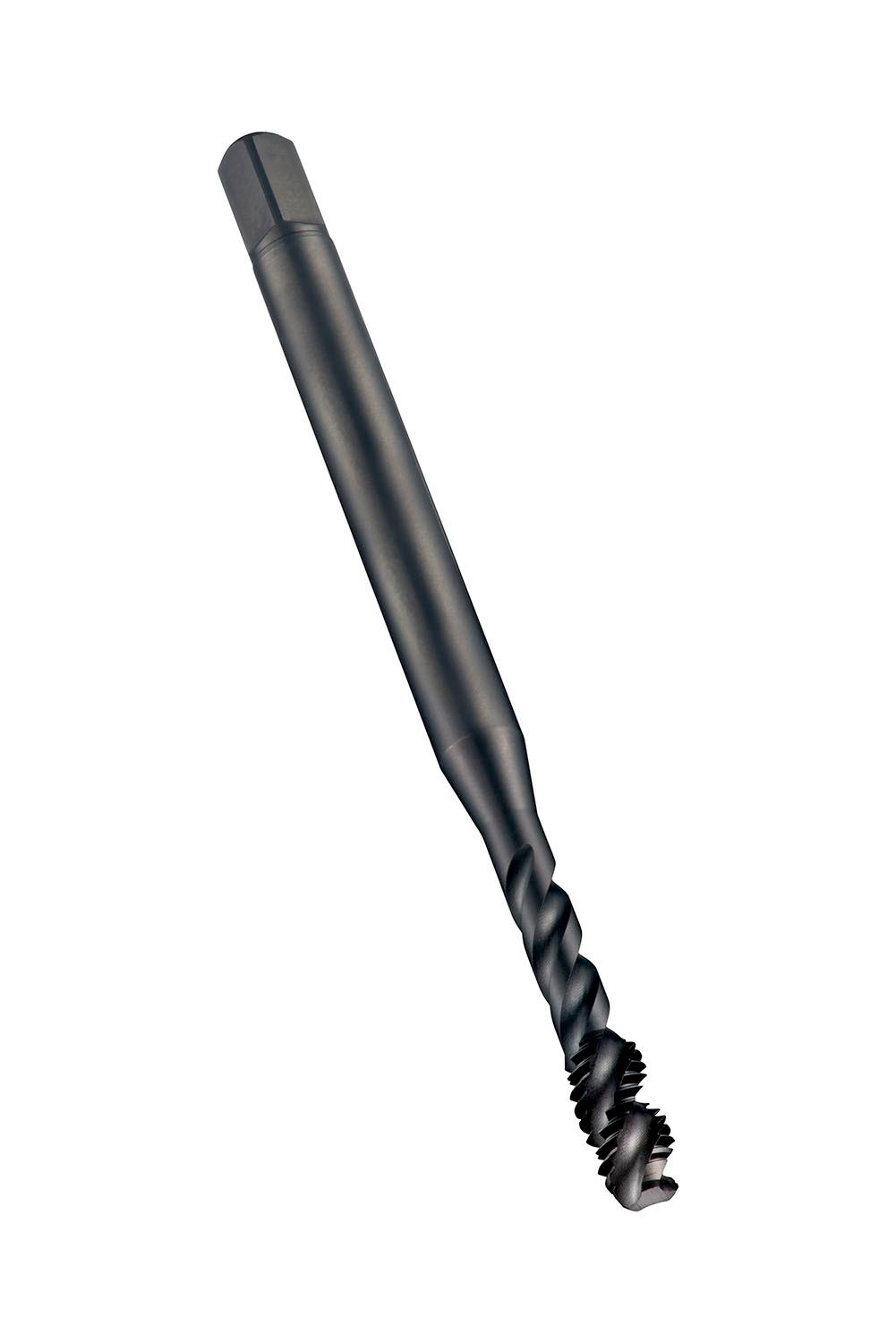

DORMER EX01M64 HSS / HSCo DIN Taps

Description: Value
Product name: EX01M64
Product number (SAP): 86017617
EAN number: 7320760137222
Thread diameter size (TDZ): 64
Thread pitch – millimeter (TP): 6 mm
Overall length – millimeter (OAL): 315 mm
Overall length – inch (OAL): 12.4016 inch
Threading length – millimeter (THL): 60 mm
Threading length – inch (THL): 2.3622 inch
Connection diameter – inch (DCON MS): 1.9685 inch
Connection diameter – millimeter (DCON MS): 50 mm
Flute count (NOF): 6
Tolerance limit: D12
Clamping width – inch (WSC): 1.5354 inch
Clamping width – millimeter (WSC): 39 mm
Clamping Length – inch (LCS): 1.6535 inch
Clamping Length – millimeter (LSC): 42 mm
Premachined hole diameter – inch (PHD): 2.2835 inch
Premachined hole diameter – millimeter (PHD): 58 mm
Gross weight – grams: 4362.3
ISO: EX01M64
Ordering code ANSI: EX01M64
