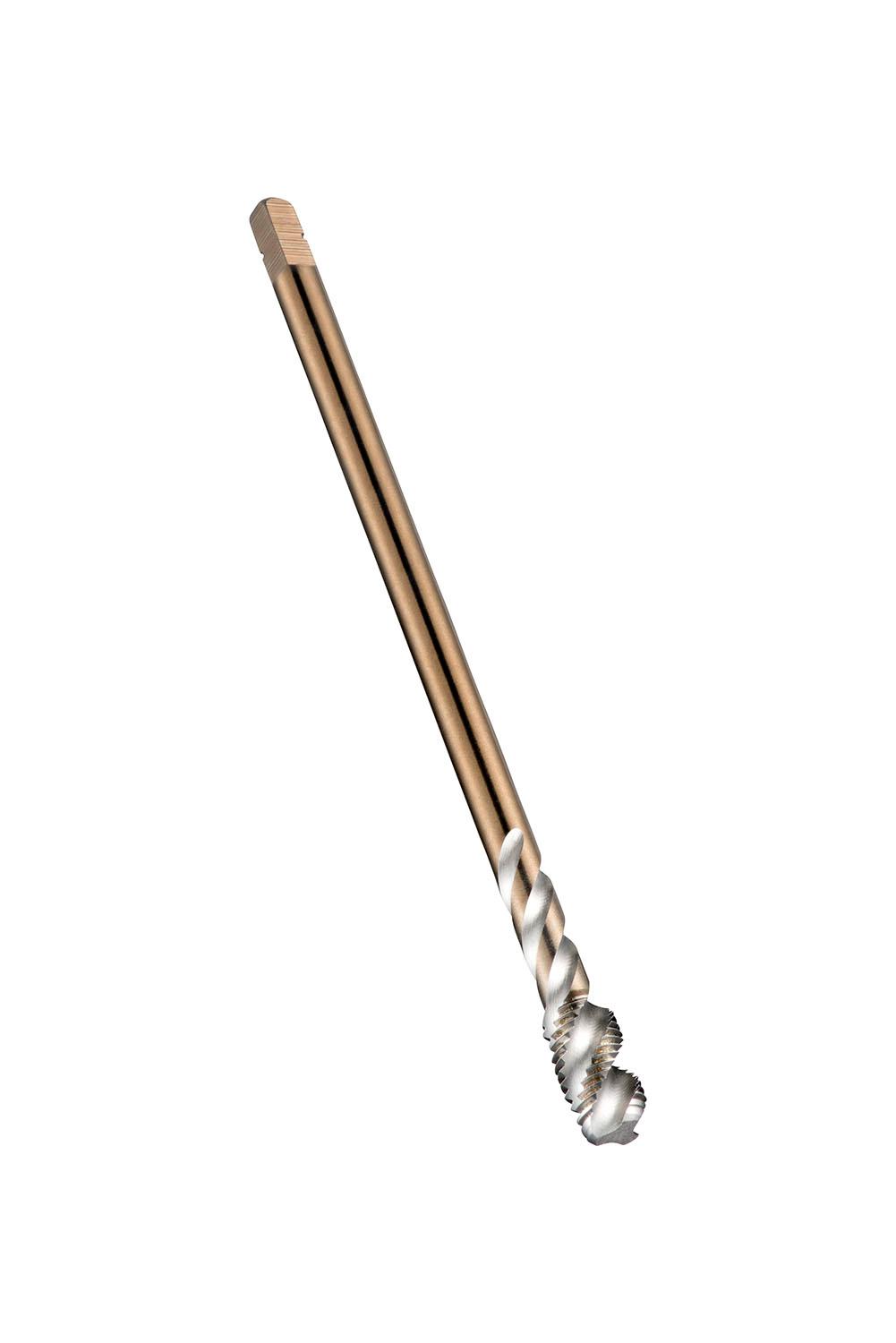

DORMER EX10M28X1.5 HSS / HSCo DIN Taps

Description

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M28 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 20.0mm shank and 16.0mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium

Additional information

Weight	0.5962 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EX10M28X1.5 Product number (SAP): 86017644 EAN number: 7320760149935 Thread diameter size (TDZ): 28 Thread pitch – millimeter (TP): 1.5 mm Overall length – millimeter (OAL): 140 mm Overall length – inch (OAL): 5.5118 inch Threading length – millimeter (THL): 20 mm Threading length – inch (THL): 0.7874 inch Connection diameter – inch (DCON MS): 0.7874 inch Connection diameter – millimeter (DCON MS): 20 mm Flute count (NOF): 4 Tolerance limit: D9 Clamping width – inch (WSC): 0.6299 inch Clamping width – millimeter (WSC): 16 mm Clamping Length – inch (LCS): 0.748 inch Clamping Length – millimeter (LSC): 19 mm Premachined hole diameter – inch (PHD): 1.0433 inch Premachined hole diameter – millimeter (PHD): 26.5 mm Gross weight – grams: 345 ISO: EX10M28X1.5 Ordering code ANSI: EX10M28X1.5

Need Technical Advice?

Description

Additional information

Brand

DORMER
