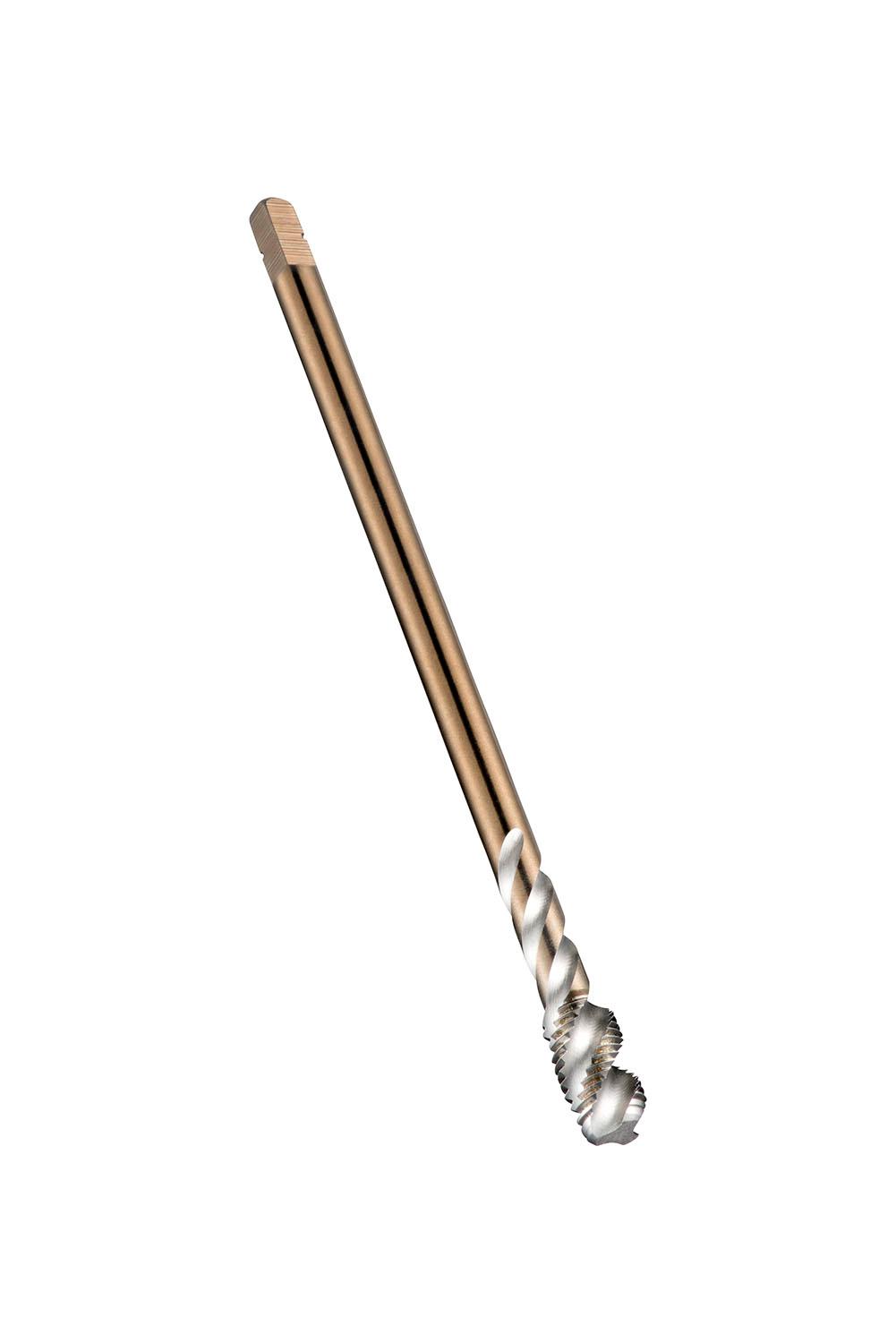

DORMER EX10M8X.75 HSS / HSCo DIN Taps

Description: Value
Product name: EX10M8X.75
Product number (SAP): 86017650
EAN number: 7320760149690
Thread diameter size (TDZ): 8
Thread pitch – millimeter (TP): 0.75 mm
Overall length – millimeter (OAL): 80 mm
Overall length – inch (OAL): 3.1496 inch
Threading length – millimeter (THL): 13 mm
Threading length – inch (THL): 0.5118 inch
Connection diameter – inch (DCON MS): 0.2362 inch
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 3
Tolerance limit: D5
Clamping width – inch (WSC): 0.1929 inch
Clamping width – millimeter (WSC): 4.9 mm
Clamping Length – inch (LCS): 0.315 inch
Clamping Length – millimeter (LSC): 8 mm
Premachined hole diameter – inch (PHD): 0.2874 inch
Premachined hole diameter – millimeter (PHD): 7.3 mm
Gross weight – grams: 22.1
ISO: EX10M8X.75
Ordering code ANSI: EX10M8X.75
