DORMER EX10TINM10X1.0 HSS / HSCo DIN Taps

Description

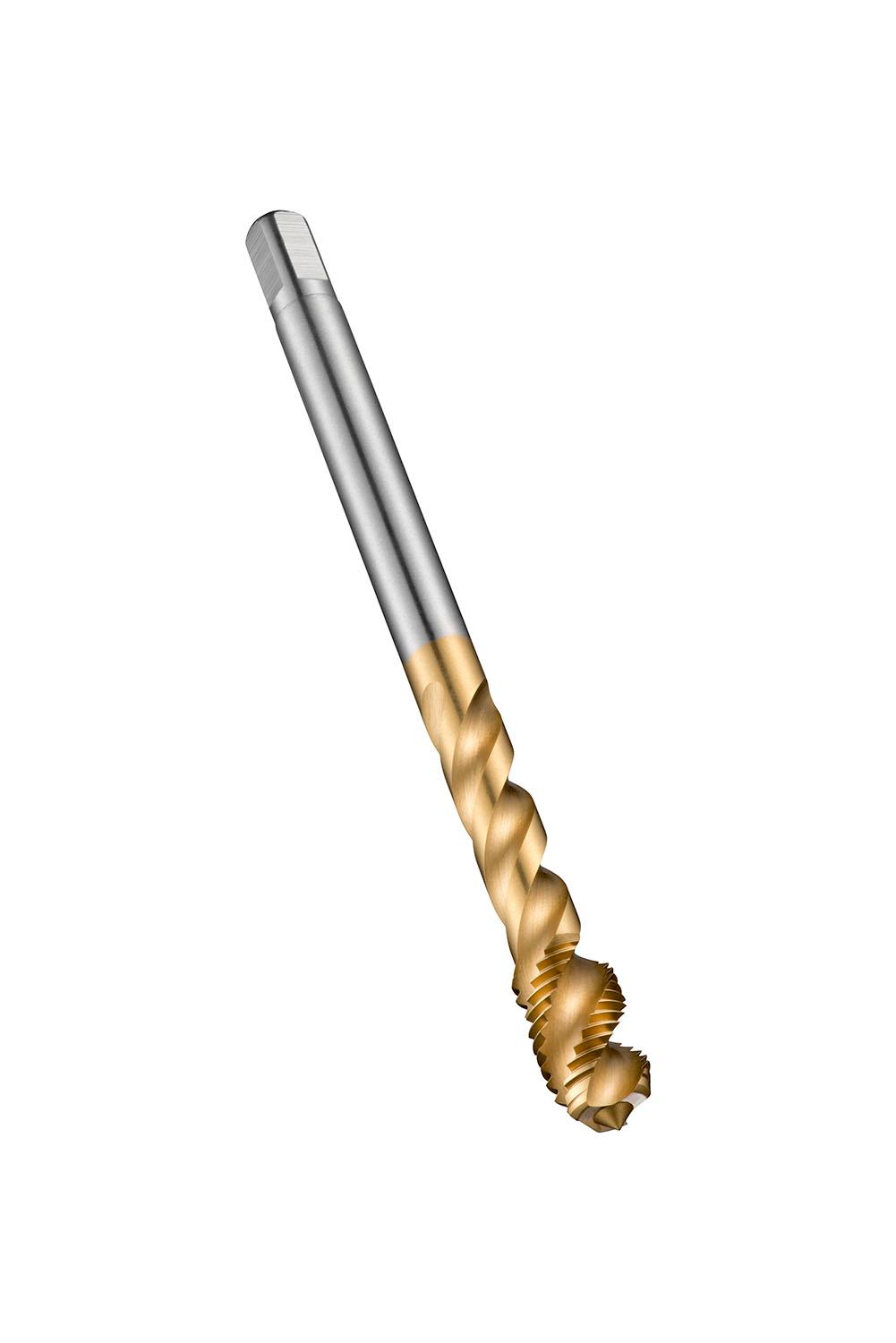

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M10 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with TiN coating and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and cast aluminium

Additional information

Weight	0.1276 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EX10TINM10X1.0 Product number (SAP): 86017652 EAN number: 7320760662526 Thread diameter size (TDZ): 10 Thread pitch – millimeter (TP): 1 mm Overall length – millimeter (OAL): 90 mm Overall length – inch (OAL): 3.5433 inch Threading length – millimeter (THL): 13 mm Threading length – inch (THL): 0.5118 inch Connection diameter – inch (DCON MS): 0.2756 inch Connection diameter – millimeter (DCON MS): 7 mm Flute count (NOF): 3 Clamping width – inch (WSC): 0.2165 inch Clamping width – millimeter (WSC): 5.5 mm Clamping Length – inch (LCS): 0.315 inch Clamping Length – millimeter (LSC): 8 mm Premachined hole diameter – inch (PHD): 0.3543 inch Premachined hole diameter – millimeter (PHD): 9 mm Gross weight – grams: 30.4 ISO: EX10TINM10X1.0 Ordering code ANSI: EX10TINM10X1.0

Need Technical Advice?

Description

Additional information

Brand

DORMER
