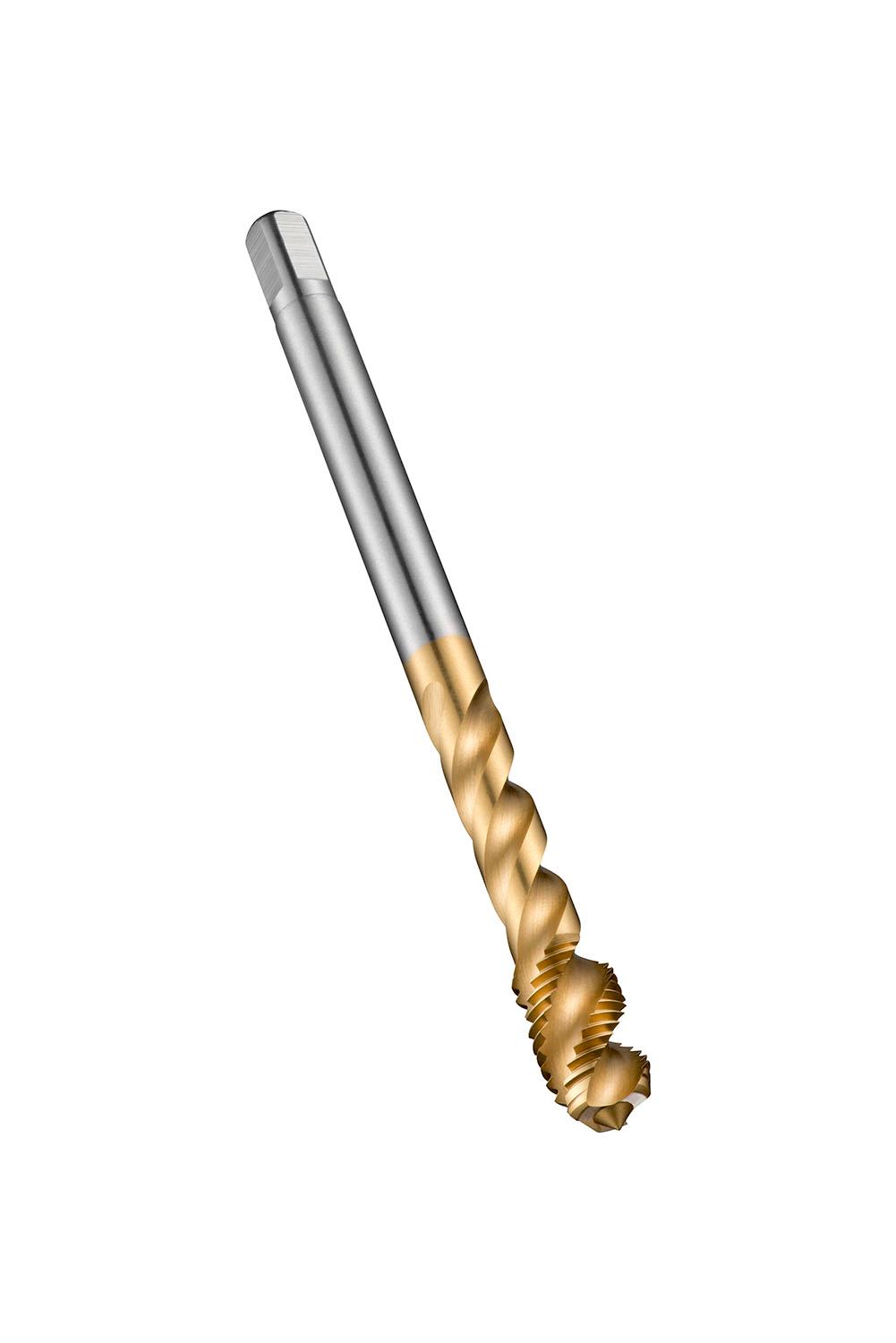

DORMER EX10TINM12X1.0 HSS / HSCo DIN Taps

Description: Value
Product name: EX10TINM12X1.0
Product number (SAP): 86017654
EAN number: 7320760662540
Thread diameter size (TDZ): 12
Thread pitch – millimeter (TP): 1 mm
Overall length – millimeter (OAL): 100 mm
Overall length – inch (OAL): 3.937 inch
Threading length – millimeter (THL): 15 mm
Threading length – inch (THL): 0.5906 inch
Connection diameter – inch (DCON MS): 0.3543 inch
Connection diameter – millimeter (DCON MS): 9 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.2756 inch
Clamping width – millimeter (WSC): 7 mm
Clamping Length – inch (LCS): 0.3937 inch
Clamping Length – millimeter (LSC): 10 mm
Premachined hole diameter – inch (PHD): 0.4331 inch
Premachined hole diameter – millimeter (PHD): 11 mm
Gross weight – grams: 51.7
ISO: EX10TINM12X1.0
Ordering code ANSI: EX10TINM12X1.0
