DORMER EX10TINM20X1.5 HSS / HSCo DIN Taps

Description

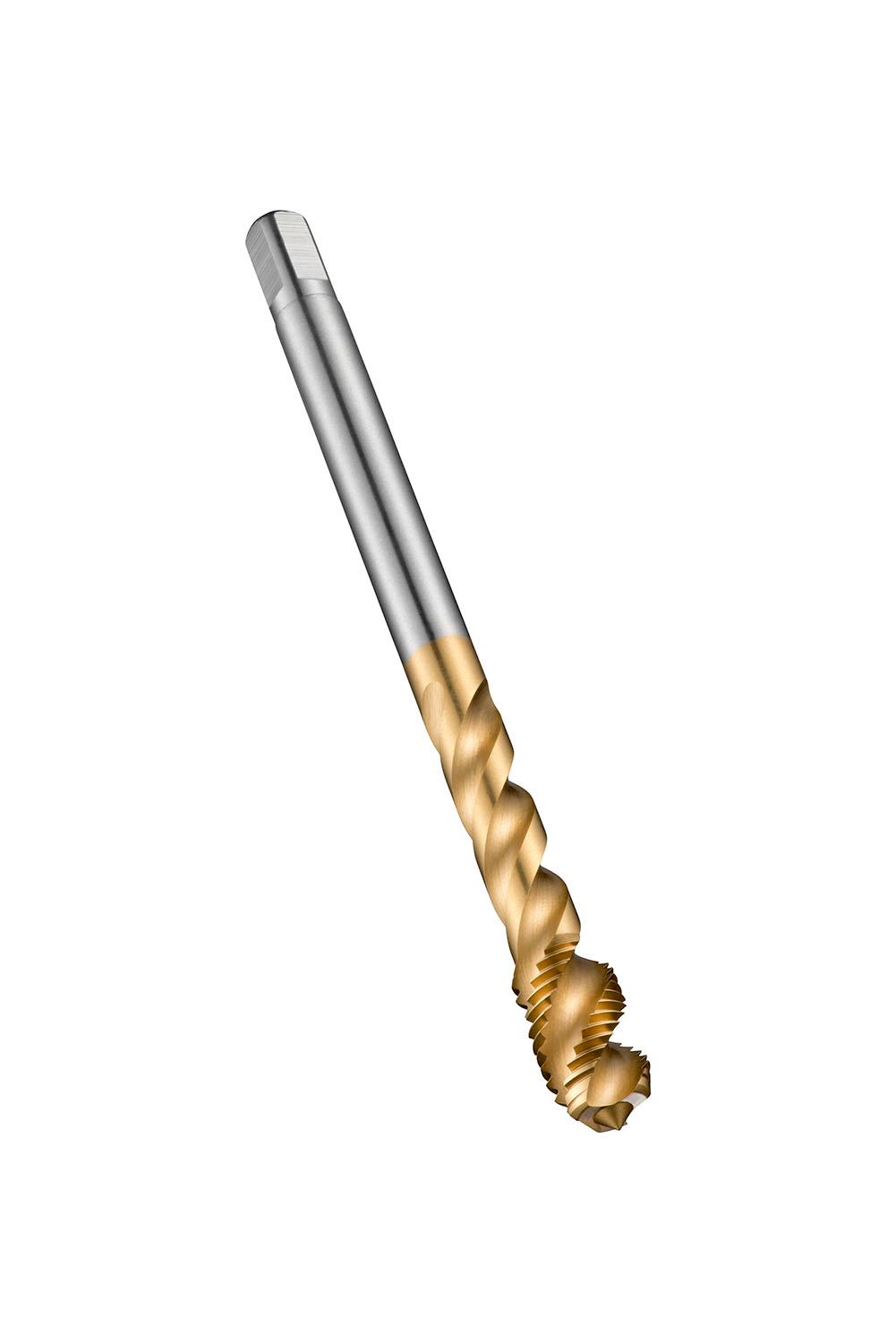

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M20 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 16.0mm shank and 12.0mm square drive, powder metallurgical HSS-E with TiN coating and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and cast aluminium

Additional information

Weight	0.3179 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EX10TINM20X1.5 Product number (SAP): 86017660 EAN number: 7320760662601 Thread diameter size (TDZ): 20 Thread pitch – millimeter (TP): 1.5 mm Overall length – millimeter (OAL): 125 mm Overall length – inch (OAL): 4.9213 inch Threading length – millimeter (THL): 17 mm Threading length – inch (THL): 0.6693 inch Connection diameter – inch (DCON MS): 0.6299 inch Connection diameter – millimeter (DCON MS): 16 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.4724 inch Clamping width – millimeter (WSC): 12 mm Clamping Length – inch (LCS): 0.5906 inch Clamping Length – millimeter (LSC): 15 mm Premachined hole diameter – inch (PHD): 0.7283 inch Premachined hole diameter – millimeter (PHD): 18.5 mm Gross weight – grams: 178 ISO: EX10TINM20X1.5 Ordering code ANSI: EX10TINM20X1.5

Need Technical Advice?

Description

Additional information

Brand

DORMER
