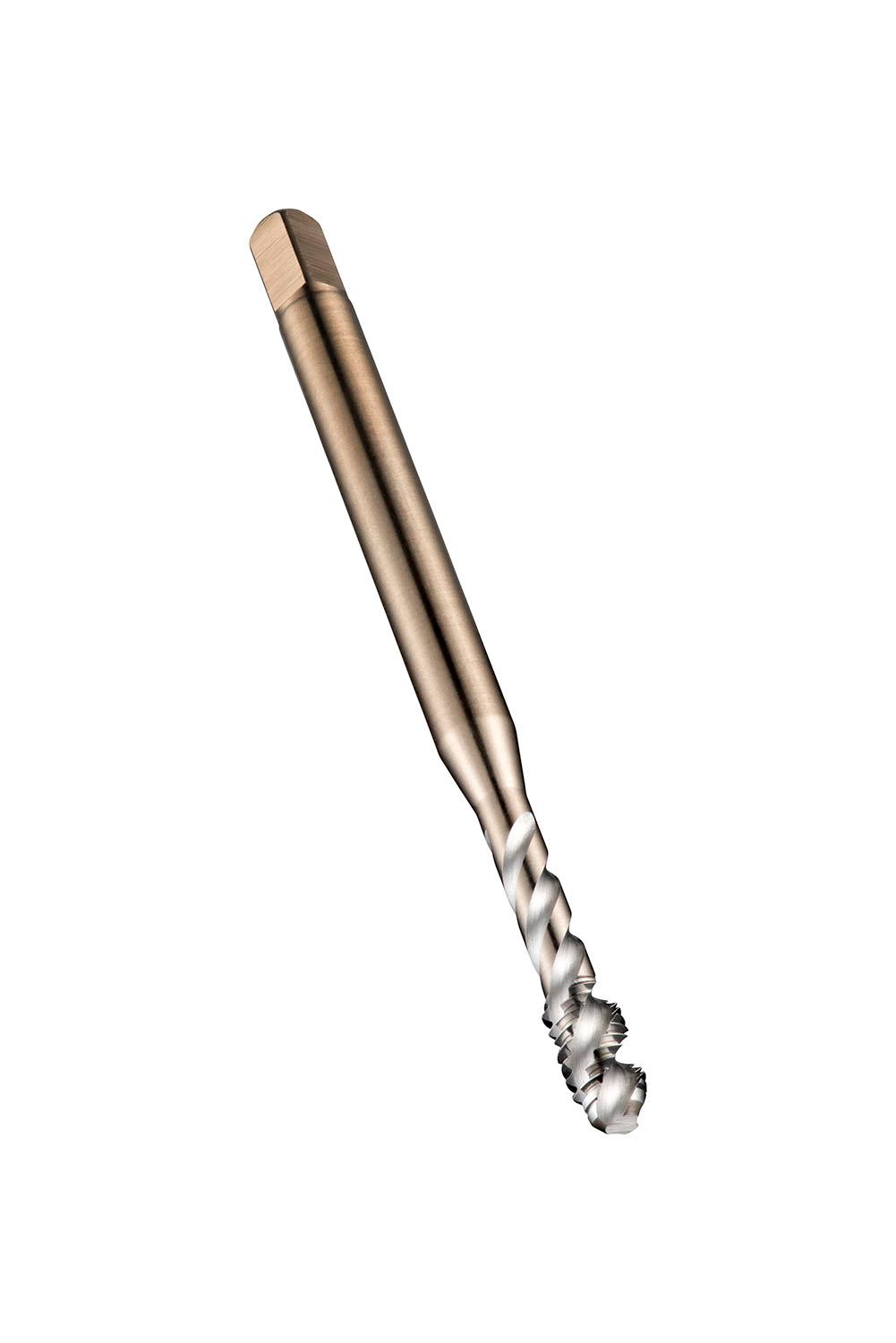

DORMER EX205/8 HSS / HSCo DIN Taps

Description: Value
Product name: EX205/8
Product number (SAP): 86017701
EAN number: 7320760150375
Thread diameter size (TDZ): 5/8
Thread diameter – millimeter (TD): 15.875 mm
Threads per inch (TPI): 11
Overall length – millimeter (OAL): 110 mm
Overall length – inch (OAL): 4.3307 inch
Threading length – millimeter (THL): 20 mm
Threading length – inch (THL): 0.7874 inch
Connection diameter – inch (DCON MS): 0.4724 inch
Connection diameter – millimeter (DCON MS): 12 mm
Flute count (NOF): 4
Tolerance limit: H5
Clamping width – inch (WSC): 0.3543 inch
Clamping width – millimeter (WSC): 9 mm
Clamping Length – inch (LCS): 0.4724 inch
Clamping Length – millimeter (LSC): 12 mm
Premachined hole diameter – inch (PHD): 0.5315 inch
Premachined hole diameter – millimeter (PHD): 13.5 mm
Gross weight – grams: 88.3
ISO: EX205/8
Ordering code ANSI: EX205/8
