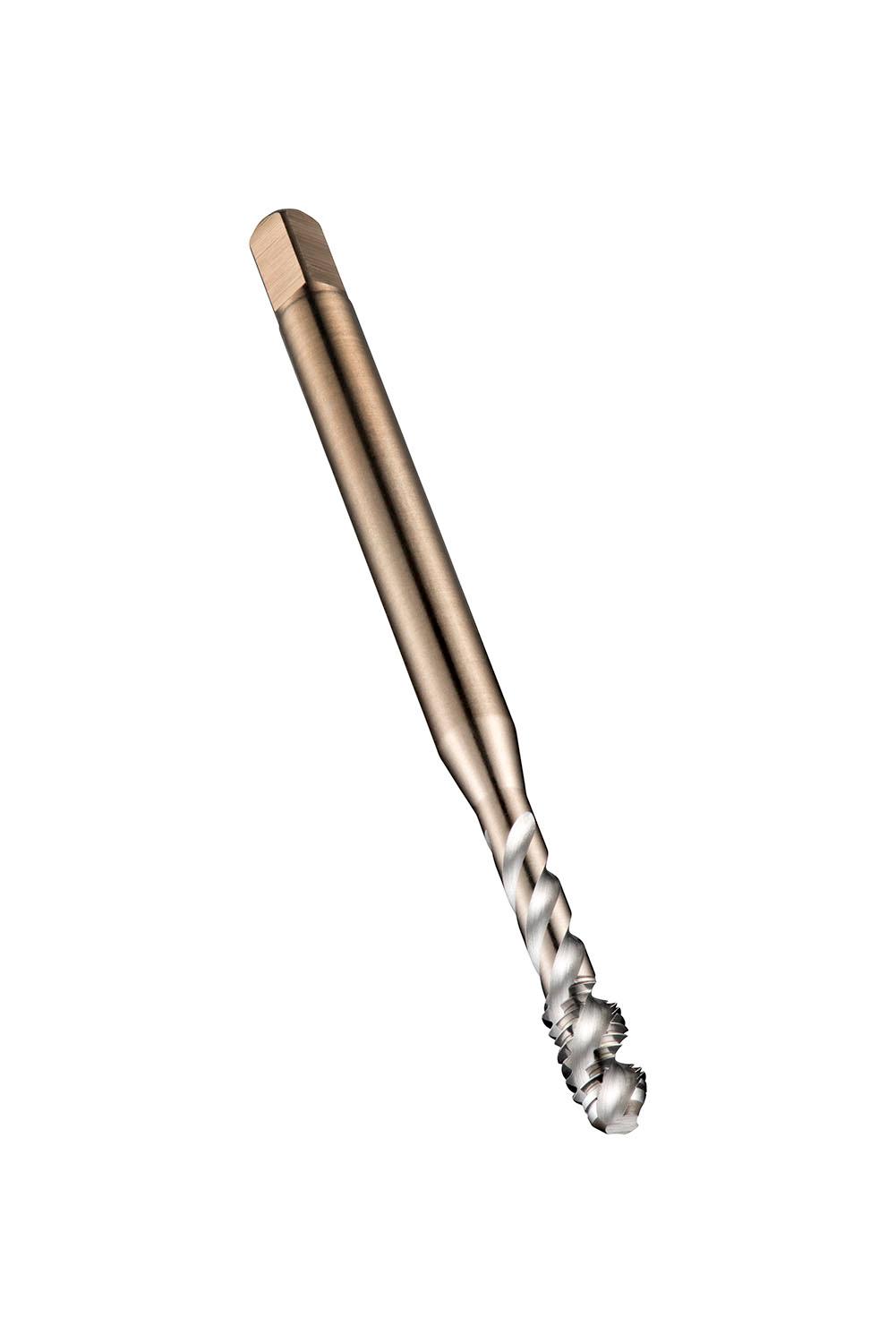

DORMER EX206-32 HSS / HSCo DIN Taps

Description: Value
Product name: EX206-32
Product number (SAP): 86017703
EAN number: 7320760150283
Thread diameter size (TDZ): 6
Thread diameter – millimeter (TD): 3.505 mm
Threads per inch (TPI): 32
Overall length – millimeter (OAL): 56 mm
Overall length – inch (OAL): 2.2047 inch
Threading length – millimeter (THL): 7 mm
Threading length – inch (THL): 0.2756 inch
Connection diameter – inch (DCON MS): 0.1575 inch
Connection diameter – millimeter (DCON MS): 4 mm
Flute count (NOF): 3
Tolerance limit: H2
Usable Length – inch (LU): 0.7874 inch
Usable Length – millimeter (LU): 20 mm
Clamping width – inch (WSC): 0.1181 inch
Clamping width – millimeter (WSC): 3 mm
Clamping Length – inch (LCS): 0.2362 inch
Clamping Length – millimeter (LSC): 6 mm
Premachined hole diameter – inch (PHD): 0.1122 inch
Premachined hole diameter – millimeter (PHD): 2.85 mm
Gross weight – grams: 6.5
ISO: EX206-32
Ordering code ANSI: EX206-32
