DORMER EX401/2 HSS / HSCo DIN Taps

Description

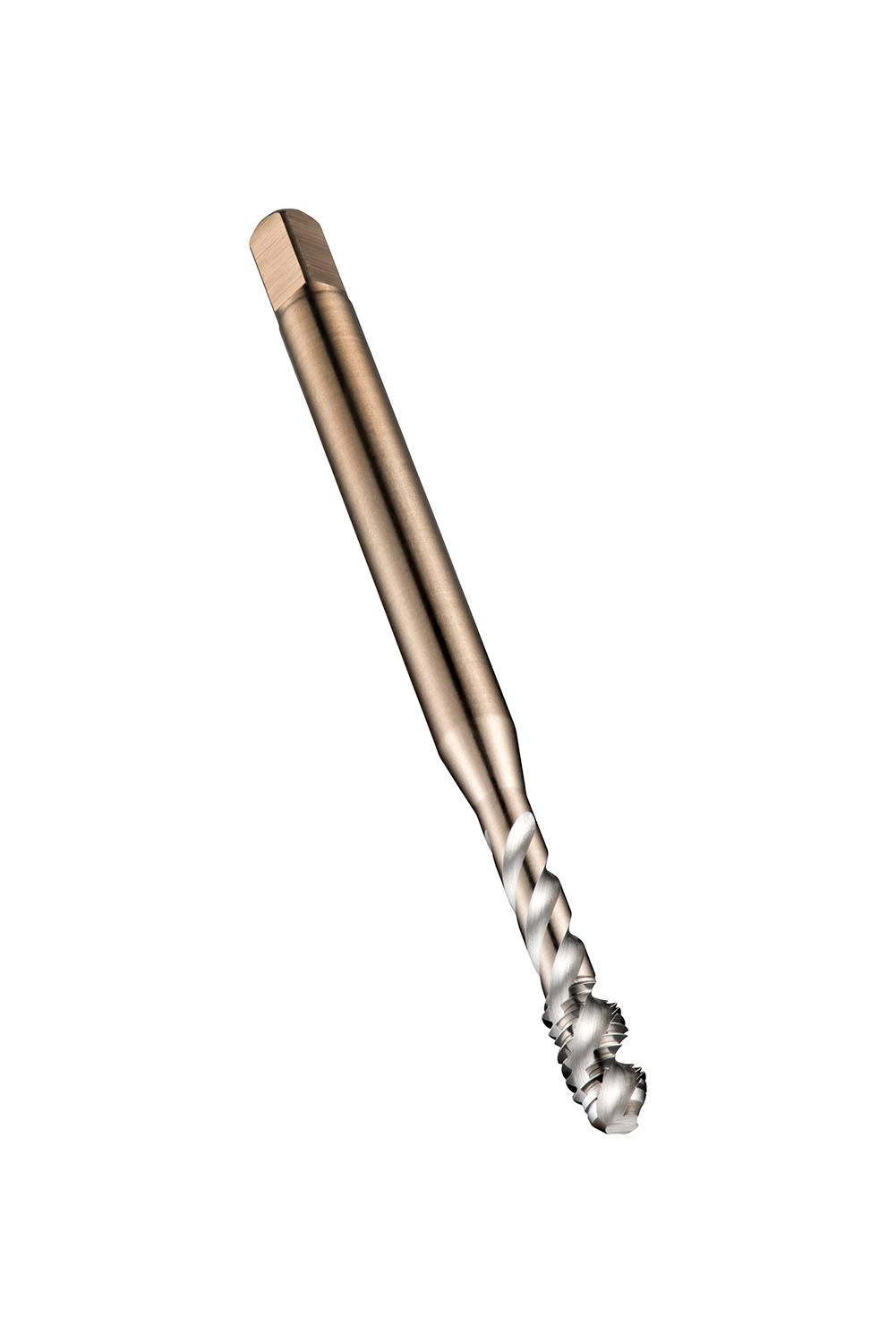

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for British Standard Pipe thread G 1/2″ with 14 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 16.0mm shank and 12.0mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium

Additional information

Weight	0.2211 kg
Dimensions
barcode
Additional Information	Description: Value Product name: EX401/2 Product number (SAP): 86017748 EAN number: 7320760168578 Thread diameter size (TDZ): 1/2 Thread diameter – millimeter (TD): 20.955 mm Threads per inch (TPI): 14 Overall length – millimeter (OAL): 125 mm Overall length – inch (OAL): 4.9213 inch Threading length – millimeter (THL): 18 mm Threading length – inch (THL): 0.7087 inch Connection diameter – inch (DCON MS): 0.6299 inch Connection diameter – millimeter (DCON MS): 16 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.4724 inch Clamping width – millimeter (WSC): 12 mm Clamping Length – inch (LCS): 0.5906 inch Clamping Length – millimeter (LSC): 15 mm Premachined hole diameter – inch (PHD): 0.748 inch Premachined hole diameter – millimeter (PHD): 19 mm Gross weight – grams: 178.8 ISO: EX401/2 Ordering code ANSI: EX401/2

Need Technical Advice?

Description

Additional information

Brand

DORMER
