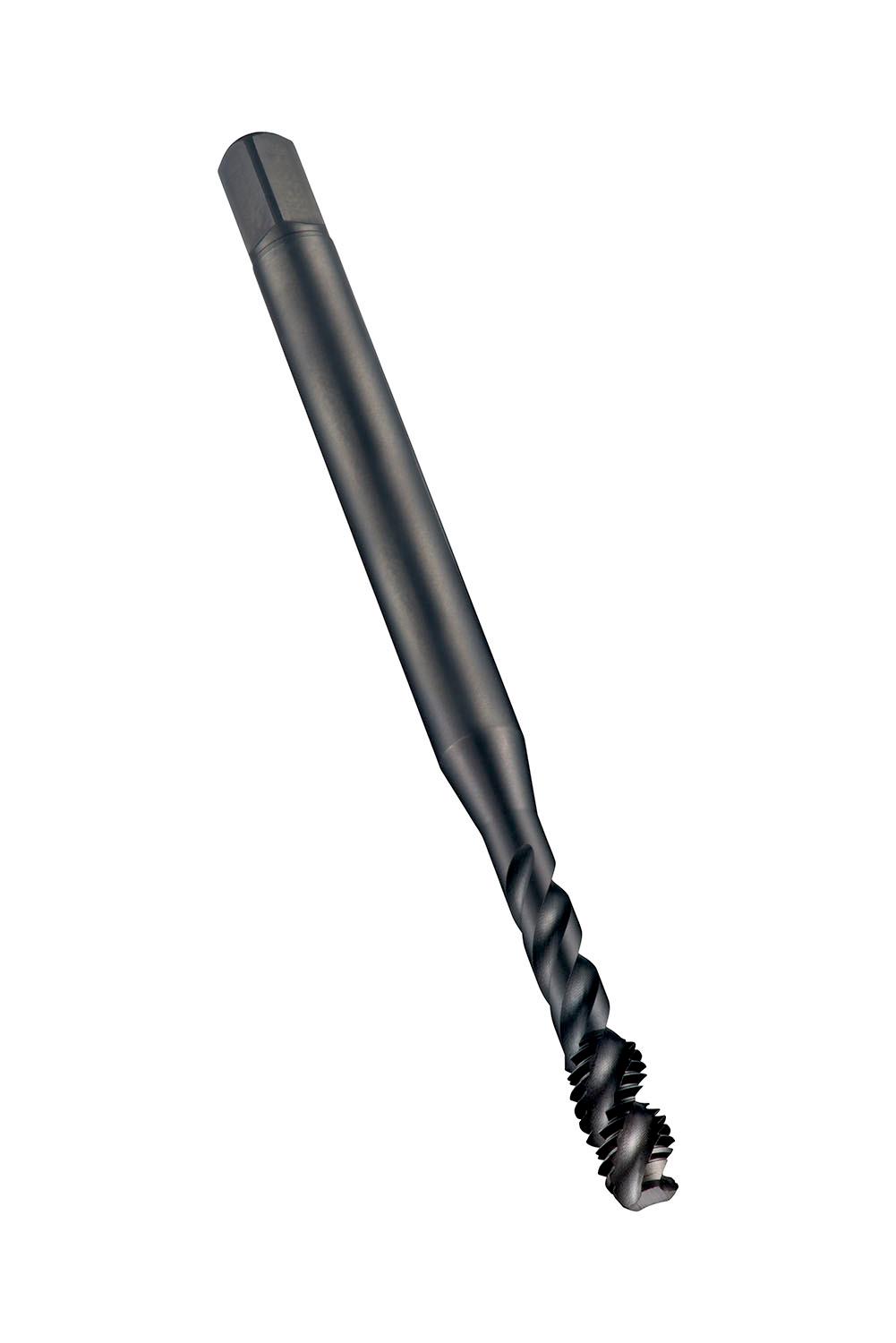

DORMER EX411.1/8 HSS / HSCo DIN Taps

Description: Value
Product name: EX411.1/8
Product number (SAP): 86017758
EAN number: 7320760168738
Thread diameter size (TDZ): 1.1/8
Thread diameter – millimeter (TD): 37.897 mm
Threads per inch (TPI): 11
Overall length – millimeter (OAL): 170 mm
Overall length – inch (OAL): 6.6929 inch
Threading length – millimeter (THL): 22 mm
Threading length – inch (THL): 0.8661 inch
Connection diameter – inch (DCON MS): 1.1024 inch
Connection diameter – millimeter (DCON MS): 28 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.8661 inch
Clamping width – millimeter (WSC): 22 mm
Clamping Length – inch (LCS): 0.9843 inch
Clamping Length – millimeter (LSC): 25 mm
Premachined hole diameter – inch (PHD): 1.378 inch
Premachined hole diameter – millimeter (PHD): 35 mm
Gross weight – grams: 778.8
ISO: EX411.1/8
Ordering code ANSI: EX411.1/8
