DORMER F100M11 Dies & Die Stocks

Product Code: F100M11

$157.49$143.17 Ex. GST

Product Code: F100M11 SKU F100M11 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

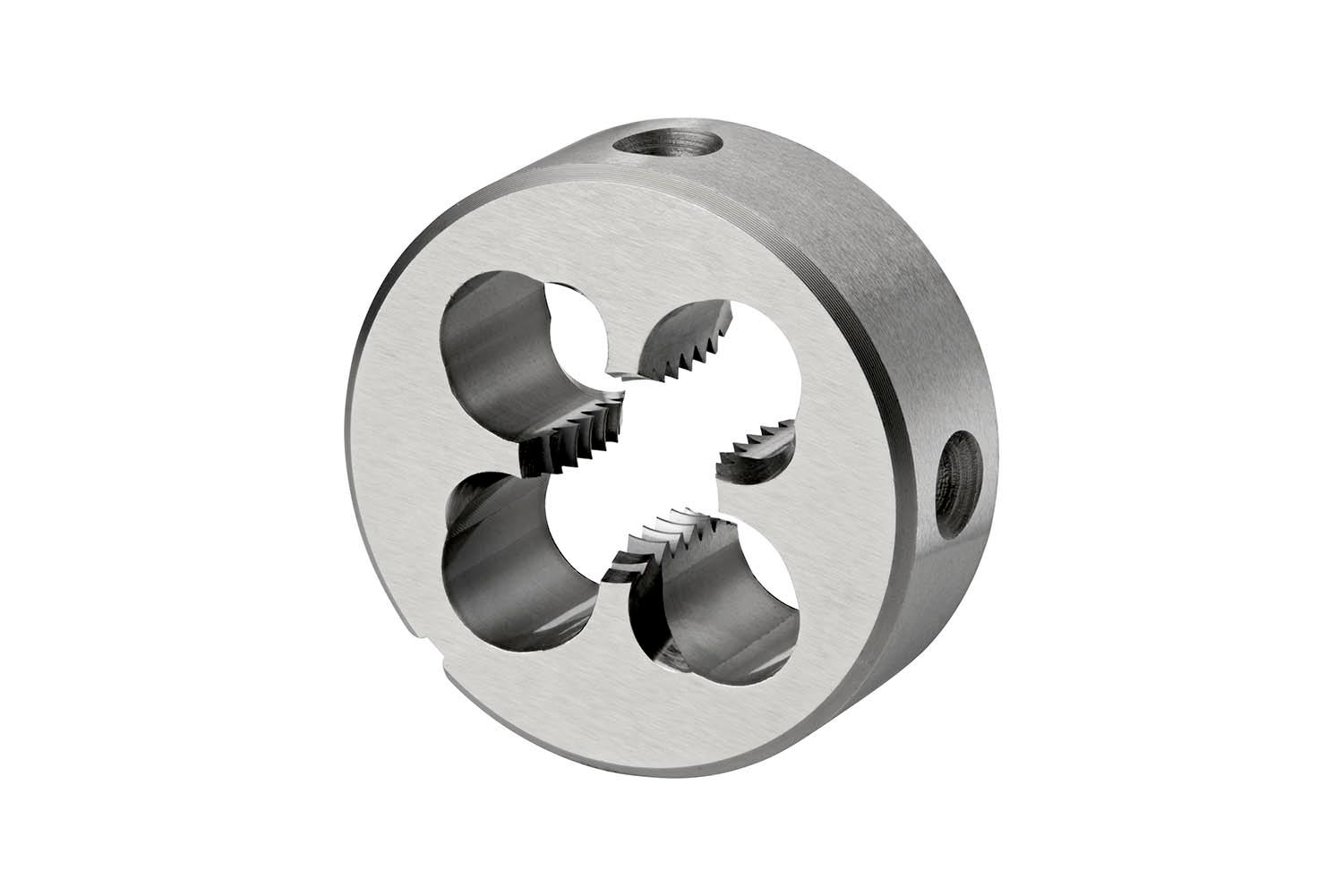

Solid round die with a gun nose, for ISO-Metric thread M11 with 1.50 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 30mm outside diameter and 11mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

Additional information

Weight 0.1529 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760164679
Product number (SAP): 86017767
Ordering code ANSI: F100M11
Gross weight – grams: 39.9
Thread diameter – millimeter (TD): 11 mm
Thread pitch – millimeter (TP): 1.5 mm
Body diameter – millimeter (BD): 30 mm
Overall length – millimeter (OAL): 11 mm
ISO: F100M11

Brand

DORMER
